9yzc

Isoreticular co-crystal 1 with asymmetrical expanded duplex (31mer) containing insert sequence CGCGCGCGCG

Method: X-RAY DIFFRACTION D_max: 100.8 Å Quality: GOOD

SAXS Profile

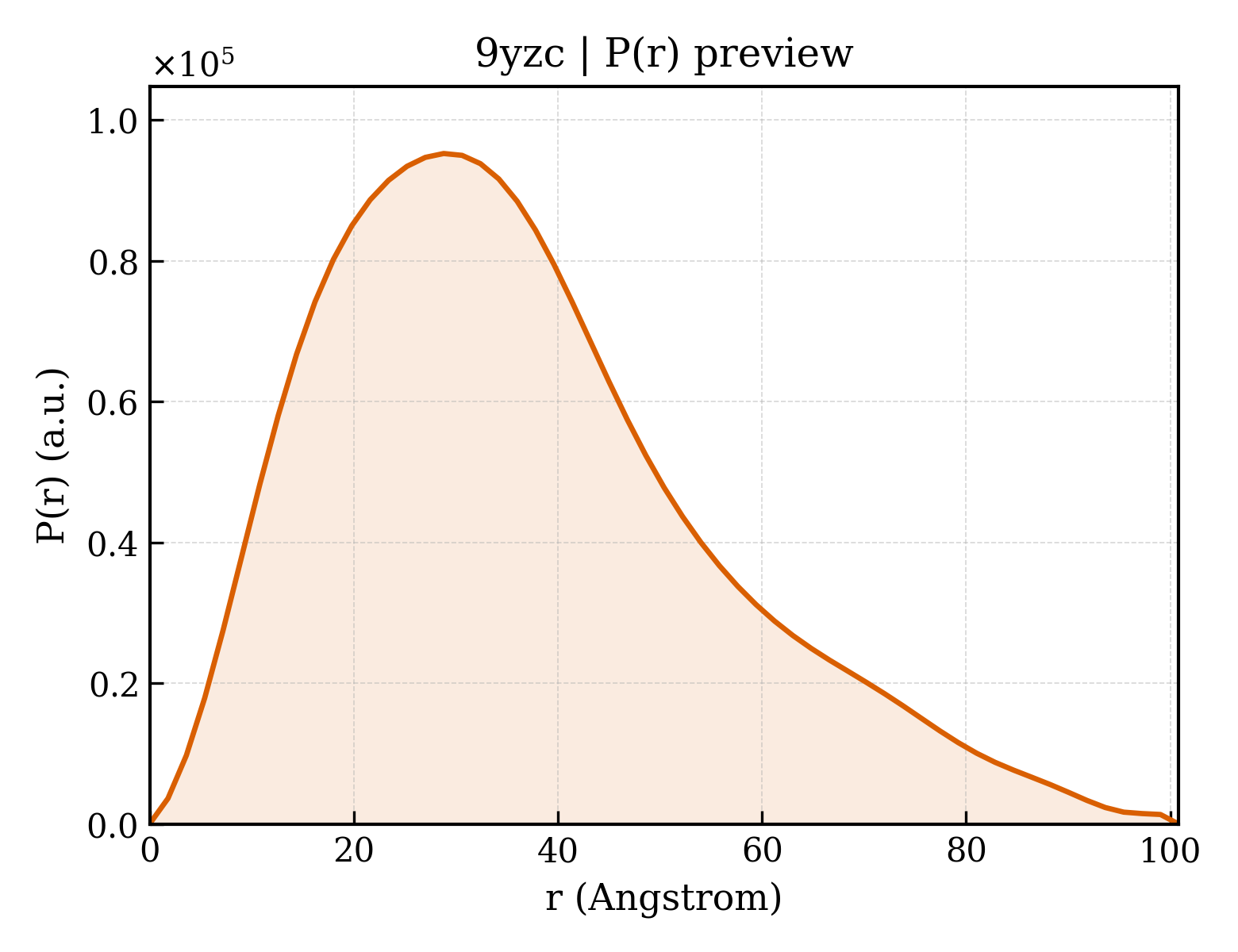

P(r) Distribution

▼

1. Structure Basics

entry_id	9yzc
deposition_date	2025-10-30
last_revision	2026-02-18
title	Isoreticular co-crystal 1 with asymmetrical expanded duplex (31mer) containing insert sequence CGCGCGCGCG
keywords	Protein-DNA complex, DNA Binding protein, Transcription factor; DNA BINDING PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	28.23 Å
rg_electron	26.91 Å
i0	52647600.00
molecular_weight	44419.0 kDa
excluded_volume	50207 Å³
envelope_volume	67881 Å³
shell_volume	23584 Å³
envelope_diameter	104.1 Å
shell_rg	30.25 Å
envelope_rg	27.63 Å
shape_rg	26.75 Å
total_rg	27.54 Å
total_atoms	3049
n_residues	277
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	100.8 Å
rg_real	28.73 Å
rg_real_error	0.98 Å
i0_real	5.2650e+07
i0_real_error	8.1580e+05
rg_reciprocal	28.57 Å
i0_reciprocal	52640000.0000
total_estimate	0.8019
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	28.8 Å
skewness	0.695
kurtosis	0.078
angular_range	— – 0.2800 Å⁻¹
current_alpha	0.0000
highest_alpha	2763000.0000
n_real_points	57
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.683; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.574; Smooth: 0.798

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	DNA (31-MER)
formula_weight	9475.1 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	A
atom_count	3069

CCTGTGACAAATTGCCCTCAGCGCGCGCGCG

Entity 2 polymer

description	DNA (31-MER)
formula_weight	9595.1 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	B

GCGCGCGCGCGCTGAGGGCAATTTGTCACAG

Entity 3 polymer

description	Replication initiation protein
formula_weight	30749.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

MRGSHHHHHHGSMAETAVINHKKRKNSPRIVQSNDLTEAAYSLSRDQKRMLYLFVDQIRKSDGTLQEHDGICEIHVAKYAEIFGLTSAEASKDIRQALKSFAGKEVVFYRPEEDAGDEKGYESFPWFIKPAHSPSRGLYSVHINPYLIPFFIGLQNRFTQFRLSETKEITNPYAMRLYESLCQYRKPDGSGIVSLKIDWIIERYQLPQSYQRMPDFRRRFLQVCVNEINSRTPMRLSYIEKKKGRQTTHIVFSFRDITSMTTG

Source

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli BL21(DE3)

Entity 4 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	4

▶

6. Citations (2)

▶

length_a	76.032 Å
length_b	124.855 Å
length_c	139.093 Å
angle_alpha	90.00 °
angle_beta	91.85 °
angle_gamma	90.00 °
z_pdb	4

space_group	I 1 2 1
int_tables_number	5
crystal_system	monoclinic

resolution	3.160 Å
resolution_low	46.800 Å
r_factor	0.2904
r_work	0.2893
r_free	0.2994

fit	/app/data/saxs_computation/yz/9yzc/9yzc.fit
pddf	/app/data/pr_computation/yz/9yzc/9yzc.pr.out
profile	/app/data/saxs_computation/yz/9yzc/9yzc.dat
