9yzf

Isoreticular co-crystal 1 with asymmetrical expanded duplex (31mer) containing insert sequence AATTAGGCCG

Method: X-RAY DIFFRACTION D_max: 99.5 Å Quality: GOOD

SAXS Profile

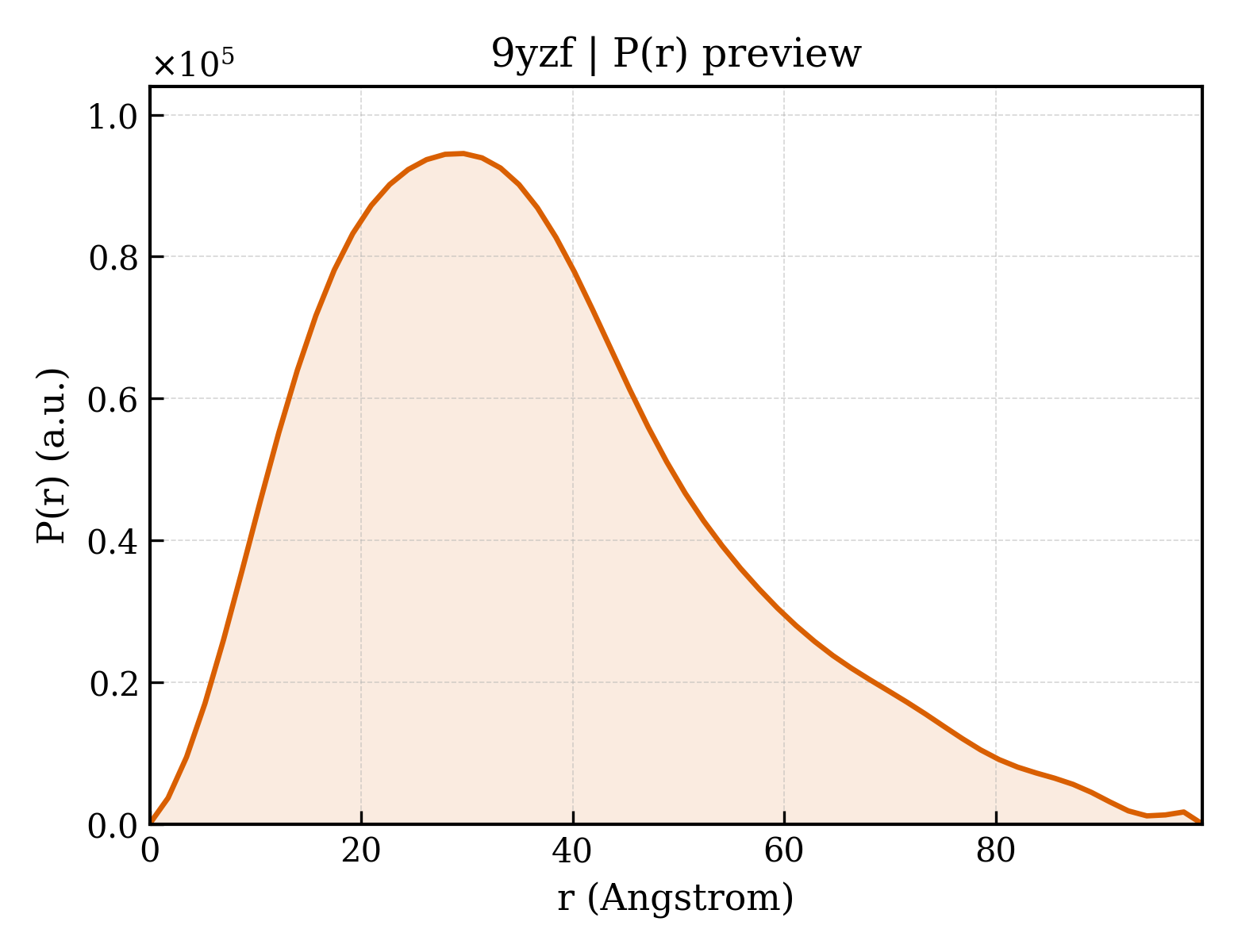

P(r) Distribution

▼

1. Structure Basics

entry_id	9yzf
deposition_date	2025-10-30
last_revision	2026-02-18
title	Isoreticular co-crystal 1 with asymmetrical expanded duplex (31mer) containing insert sequence AATTAGGCCG
keywords	Protein-DNA complex, DNA binding protein, Transcription factor; DNA BINDING PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	27.87 Å
rg_electron	26.52 Å
i0	51756000.00
molecular_weight	44211.0 kDa
excluded_volume	50047 Å³
envelope_volume	67244 Å³
shell_volume	23404 Å³
envelope_diameter	104.6 Å
shell_rg	30.21 Å
envelope_rg	27.46 Å
shape_rg	26.37 Å
total_rg	27.17 Å
total_atoms	3037
n_residues	280
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	99.5 Å
rg_real	28.31 Å
rg_real_error	0.94 Å
i0_real	5.1760e+07
i0_real_error	8.4110e+05
rg_reciprocal	28.18 Å
i0_reciprocal	51750000.0000
total_estimate	0.8143
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	29.7 Å
skewness	0.682
kurtosis	0.097
angular_range	— – 0.2850 Å⁻¹
current_alpha	0.0000
highest_alpha	2893000.0000
n_real_points	58
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.697; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.651; Smooth: 0.841

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	DNA (31-MER)
formula_weight	9472.1 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	A
atom_count	3073

CCTGTGACAAATTGCCCTCATAATTAGGCCG

Entity 2 polymer

description	DNA (31-MER)
formula_weight	9592.2 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	B

GCGGCCTAATTATGAGGGCAATTTGTCACAG

Entity 3 polymer

description	Replication initiation protein
formula_weight	30749.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

MRGSHHHHHHGSMAETAVINHKKRKNSPRIVQSNDLTEAAYSLSRDQKRMLYLFVDQIRKSDGTLQEHDGICEIHVAKYAEIFGLTSAEASKDIRQALKSFAGKEVVFYRPEEDAGDEKGYESFPWFIKPAHSPSRGLYSVHINPYLIPFFIGLQNRFTQFRLSETKEITNPYAMRLYESLCQYRKPDGSGIVSLKIDWIIERYQLPQSYQRMPDFRRRFLQVCVNEINSRTPMRLSYIEKKKGRQTTHIVFSFRDITSMTTG

Source

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli BL21(DE3)

Entity 4 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	1

▶

6. Citations (2)

▶

length_a	74.554 Å
length_b	121.563 Å
length_c	142.887 Å
angle_alpha	90.00 °
angle_beta	95.17 °
angle_gamma	90.00 °
z_pdb	4

space_group	I 1 2 1
int_tables_number	5
crystal_system	monoclinic

resolution	3.070 Å
resolution_low	46.220 Å
r_factor	0.2331
r_work	0.2323
r_free	0.2408
