9yzj

Isoreticular co-crystal 1 with asymmetrical expanded duplex (31mer) containing insert sequence CGTAATTAGG

Method: X-RAY DIFFRACTION D_max: 98.7 Å Quality: GOOD

SAXS Profile

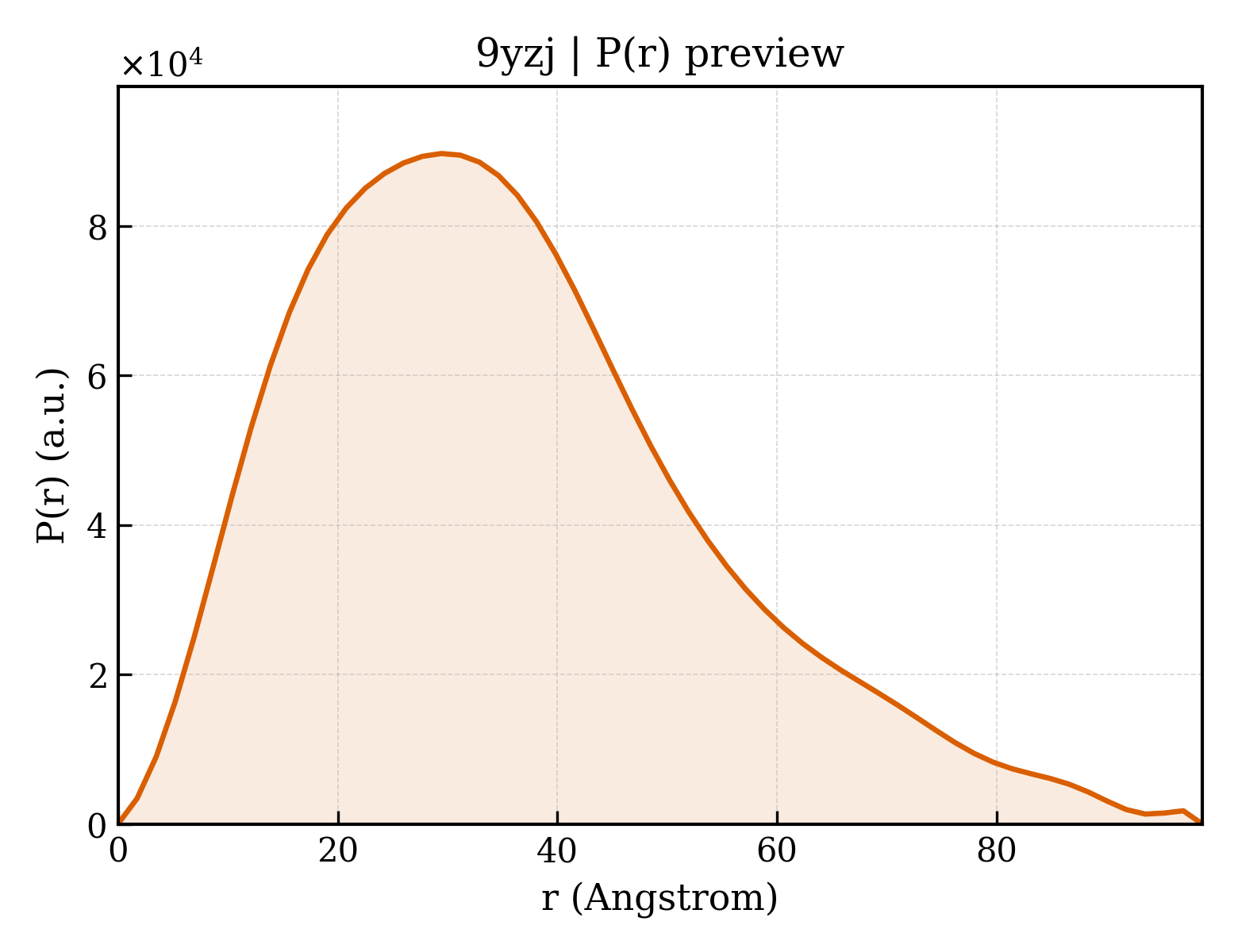

P(r) Distribution

▼

1. Structure Basics

entry_id	9yzj
deposition_date	2025-10-30
last_revision	2026-02-18
title	Isoreticular co-crystal 1 with asymmetrical expanded duplex (31mer) containing insert sequence CGTAATTAGG
keywords	Protein-DNA complex, DNA Binding protein, Transcription factor; DNA BINDING PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	27.64 Å
rg_electron	26.55 Å
i0	49184300.00
molecular_weight	41863.0 kDa
excluded_volume	46661 Å³
envelope_volume	65260 Å³
shell_volume	22889 Å³
envelope_diameter	104.1 Å
shell_rg	30.03 Å
envelope_rg	27.09 Å
shape_rg	26.38 Å
total_rg	27.22 Å
total_atoms	2876
n_residues	283
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	98.7 Å
rg_real	28.06 Å
rg_real_error	1.10 Å
i0_real	4.9180e+07
i0_real_error	8.1100e+05
rg_reciprocal	27.93 Å
i0_reciprocal	49180000.0000
total_estimate	0.8229
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	29.4 Å
skewness	0.677
kurtosis	0.134
angular_range	— – 0.2850 Å⁻¹
current_alpha	0.0000
highest_alpha	2728000.0000
n_real_points	58
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.709; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.665; Smooth: 0.901

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	DNA (31-MER)
formula_weight	9512.1 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	A
atom_count	2896

CCTGTGACAAATTGCCCTCAGCGTAATTAGG

Entity 2 polymer

description	DNA (31-MER)
formula_weight	9552.2 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	B

CCTAATTACGCTGAGGGCAATTTGTCACAGG

Entity 3 polymer

description	Replication initiation protein
formula_weight	30749.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

MRGSHHHHHHGSMAETAVINHKKRKNSPRIVQSNDLTEAAYSLSRDQKRMLYLFVDQIRKSDGTLQEHDGICEIHVAKYAEIFGLTSAEASKDIRQALKSFAGKEVVFYRPEEDAGDEKGYESFPWFIKPAHSPSRGLYSVHINPYLIPFFIGLQNRFTQFRLSETKEITNPYAMRLYESLCQYRKPDGSGIVSLKIDWIIERYQLPQSYQRMPDFRRRFLQVCVNEINSRTPMRLSYIEKKKGRQTTHIVFSFRDITSMTTG

Source

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli BL21(DE3)

Entity 4 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	4

▶

6. Citations (2)

▶

length_a	73.782 Å
length_b	132.646 Å
length_c	126.768 Å
angle_alpha	90.00 °
angle_beta	90.26 °
angle_gamma	90.00 °
z_pdb	4

space_group	I 1 2 1
int_tables_number	5
crystal_system	monoclinic

resolution	2.970 Å
resolution_low	46.010 Å
r_factor	0.2741
r_work	0.2721
r_free	0.2917

fit	/app/data/saxs_computation/yz/9yzj/9yzj.fit
pddf	/app/data/pr_computation/yz/9yzj/9yzj.pr.out
profile	/app/data/saxs_computation/yz/9yzj/9yzj.dat
