9yzv
Joint Xray/Neutron structure of human DJ-1 at room temperature

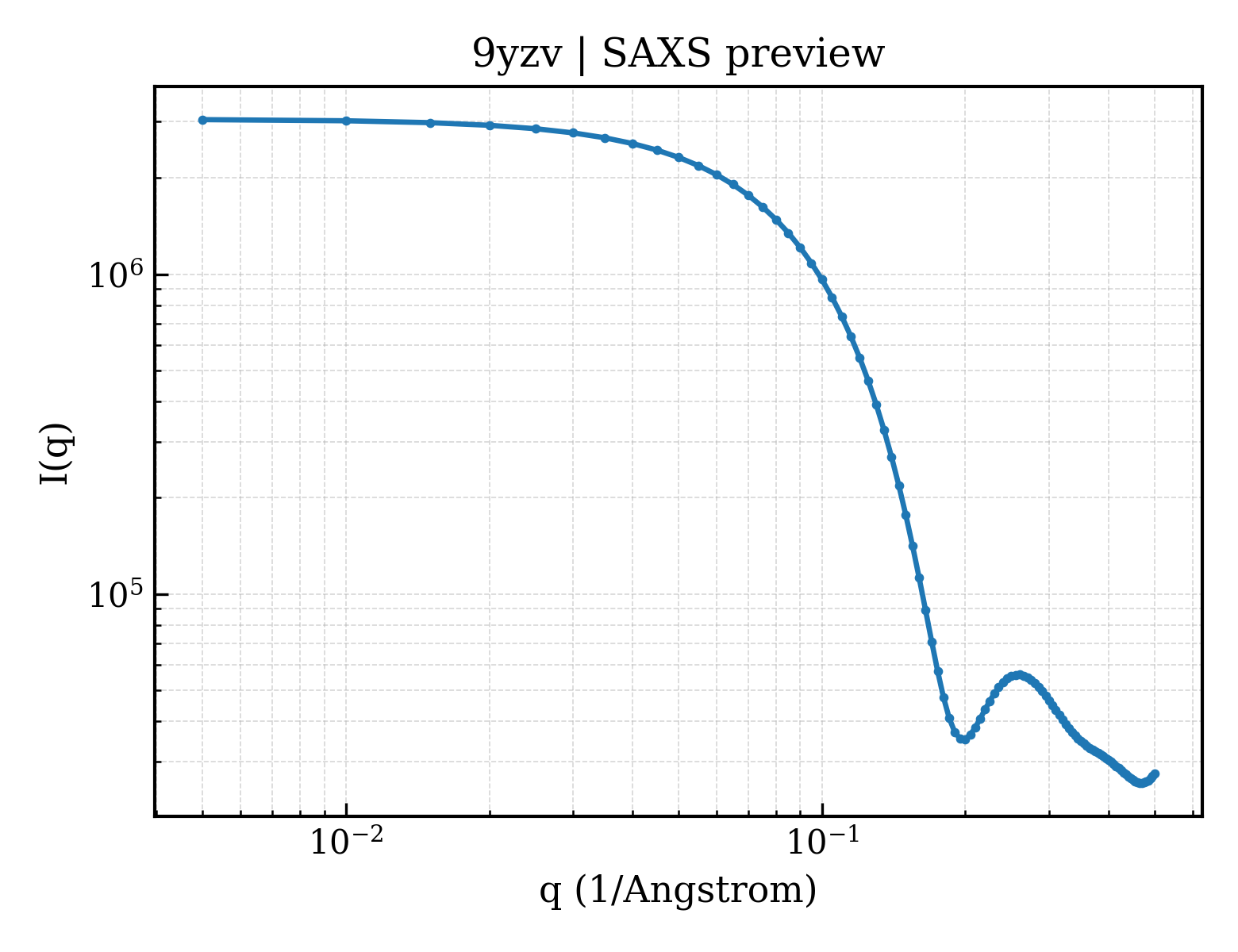

SAXS Profile

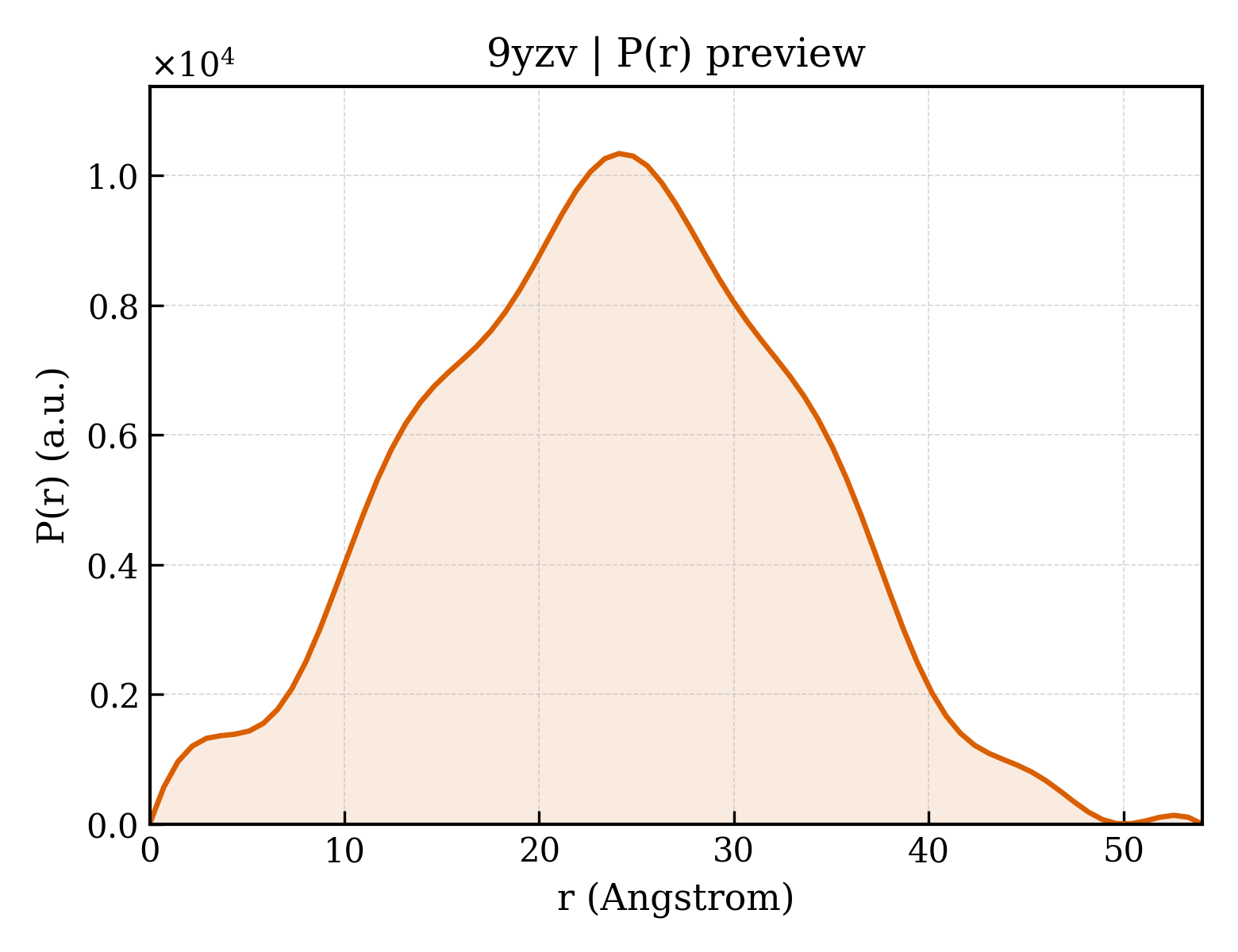

P(r) Distribution
1. Structure Basics
| entry_id | 9yzv |
| deposition_date | 2025-10-30 |
| title | Joint Xray/Neutron structure of human DJ-1 at room temperature |
| keywords | PARK7, glyoxalase, cyclic phosphoglycerate anhydride hydrolase, HYDROLASE; HYDROLASE |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.16 Å |
| rg_electron | 15.61 Å |
| i0 | 3054660.00 |
| molecular_weight | 22560.0 kDa |
| excluded_volume | 31964 ų |
| envelope_volume | 32266 ų |
| shell_volume | 16532 ų |
| envelope_diameter | 53.7 Å |
| shell_rg | 22.52 Å |
| envelope_rg | 16.51 Å |
| shape_rg | 15.49 Å |
| total_rg | 18.23 Å |
| total_atoms | 2873 |
| n_residues | 192 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 54.0 Å |
| rg_real | 18.02 Å |
| rg_real_error | 0.30 Å |
| i0_real | 3.0550e+06 |
| i0_real_error | 3.5620e+04 |
| rg_reciprocal | 18.04 Å |
| i0_reciprocal | 3055000.0000 |
| total_estimate | 0.8710 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 24.1 Å |
| skewness | -0.008 |
| kurtosis | -0.381 |
| angular_range | — – 0.4400 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 538000.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.822; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.970; Smooth: 0.889 |
