9z1a

Isoreticular co-crystal 1 with asymmetrical expanded duplex (31mer) containing insert sequence CCGCGCAGGC

Method: X-RAY DIFFRACTION D_max: 99.6 Å Quality: GOOD

SAXS Profile

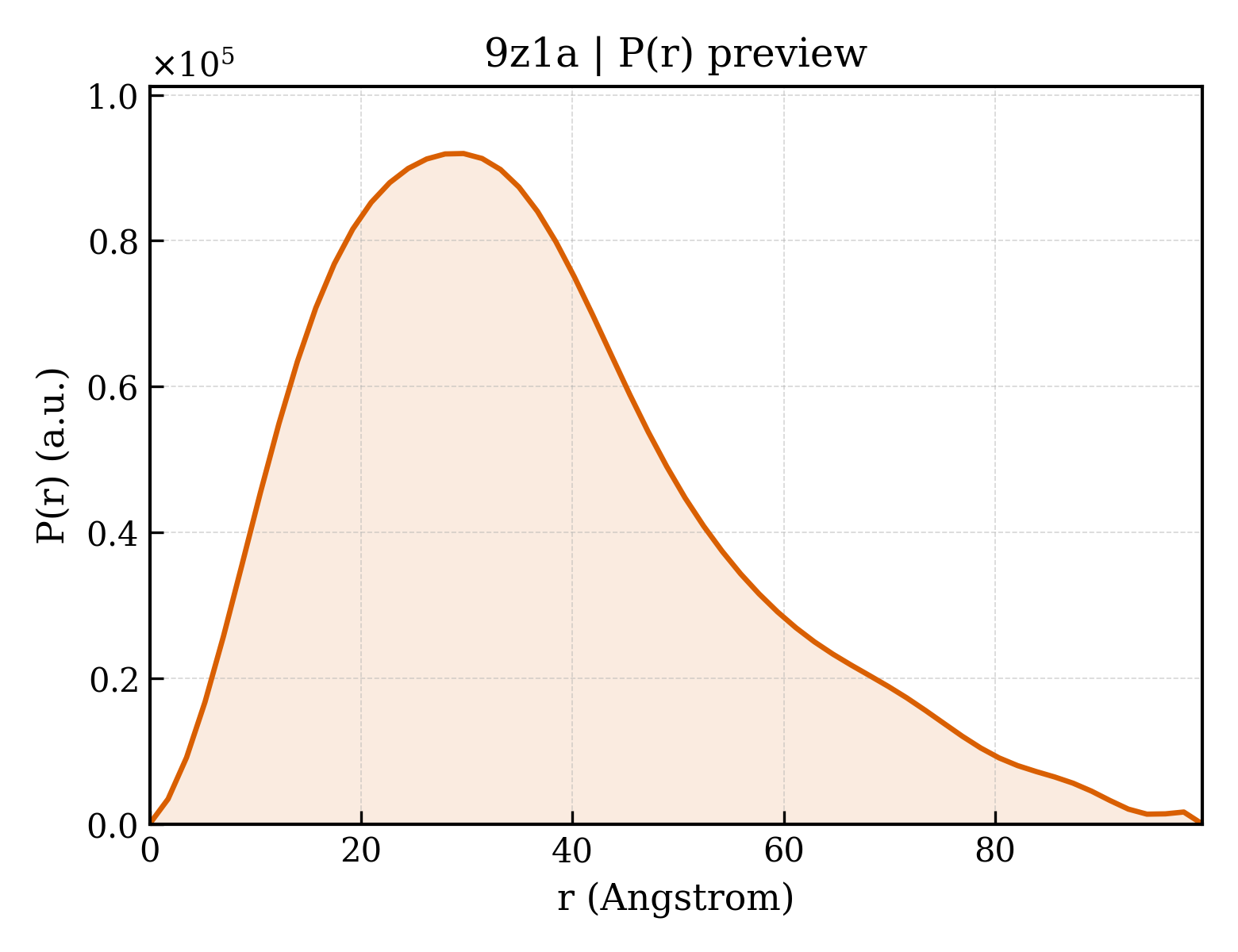

P(r) Distribution

▼

1. Structure Basics

entry_id	9z1a
deposition_date	2025-11-03
last_revision	2026-02-18
title	Isoreticular co-crystal 1 with asymmetrical expanded duplex (31mer) containing insert sequence CCGCGCAGGC
keywords	Protein-DNA complex, DNA Binding protein, Transcription factor; DNA BINDING PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	27.88 Å
rg_electron	26.70 Å
i0	50458800.00
molecular_weight	42608.0 kDa
excluded_volume	47628 Å³
envelope_volume	65147 Å³
shell_volume	22901 Å³
envelope_diameter	102.6 Å
shell_rg	29.93 Å
envelope_rg	27.43 Å
shape_rg	26.58 Å
total_rg	27.25 Å
total_atoms	2928
n_residues	278
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	99.6 Å
rg_real	28.35 Å
rg_real_error	0.92 Å
i0_real	5.0460e+07
i0_real_error	7.4110e+05
rg_reciprocal	28.20 Å
i0_reciprocal	50450000.0000
total_estimate	0.8105
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	29.7 Å
skewness	0.695
kurtosis	0.100
angular_range	— – 0.2850 Å⁻¹
current_alpha	0.0000
highest_alpha	2911000.0000
n_real_points	58
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.684; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.624; Smooth: 0.856

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	DNA (31-MER)
formula_weight	9459.1 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	A
atom_count	2936

CCTGTGACAAATTGCCCTCAGCCGCGCAGGC

Entity 2 polymer

description	DNA (31-MER)
formula_weight	9610.2 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	B

GGCCTGCGCGGCTGAGGGCAATTTGTCACAG

Entity 3 polymer

description	Replication initiation protein
formula_weight	30749.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

MRGSHHHHHHGSMAETAVINHKKRKNSPRIVQSNDLTEAAYSLSRDQKRMLYLFVDQIRKSDGTLQEHDGICEIHVAKYAEIFGLTSAEASKDIRQALKSFAGKEVVFYRPEEDAGDEKGYESFPWFIKPAHSPSRGLYSVHINPYLIPFFIGLQNRFTQFRLSETKEITNPYAMRLYESLCQYRKPDGSGIVSLKIDWIIERYQLPQSYQRMPDFRRRFLQVCVNEINSRTPMRLSYIEKKKGRQTTHIVFSFRDITSMTTG

Source

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli BL21(DE3)

Entity 4 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	1

▶

6. Citations (2)

▶

length_a	74.745 Å
length_b	124.530 Å
length_c	137.761 Å
angle_alpha	90.00 °
angle_beta	90.31 °
angle_gamma	90.00 °
z_pdb	4

space_group	I 1 2 1
int_tables_number	5
crystal_system	monoclinic

resolution	3.102 Å
resolution_low	46.810 Å
r_factor	0.3098
r_work	0.3070
r_free	0.3351

fit	/app/data/saxs_computation/z1/9z1a/9z1a.fit
pddf	/app/data/pr_computation/z1/9z1a/9z1a.pr.out
profile	/app/data/saxs_computation/z1/9z1a/9z1a.dat
