SAXSdb — 9z2c

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ketohexokinase

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	;3-amino-3-(4-{7,7-difluoro-2-[(2R)-2-(trifluoromethyl)azetidin-1-yl]-6,7-dihydro-5H-cyclopenta[d]pyrimidin-4-yl}phenyl)-1lambda~6~-thietane-1,1-dione ; × 2 beta-D-fructofuranose × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KHK_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 20–313； UniProt 5–298 Author chain B； PDBConstruct 20–313； UniProt 5–298

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9z2c
Deposition date deposition_date	2025-11-04
Structure title title	KHK Bound to GS-1291269
Keywords keywords	Inhibitor, Fructose, Metabolism, Phosphorylation, TRANSFERASE, TRANSFERASE-TRANSFERASE INHIBITOR complex; TRANSFERASE/TRANSFERASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9z2c__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9z2c__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

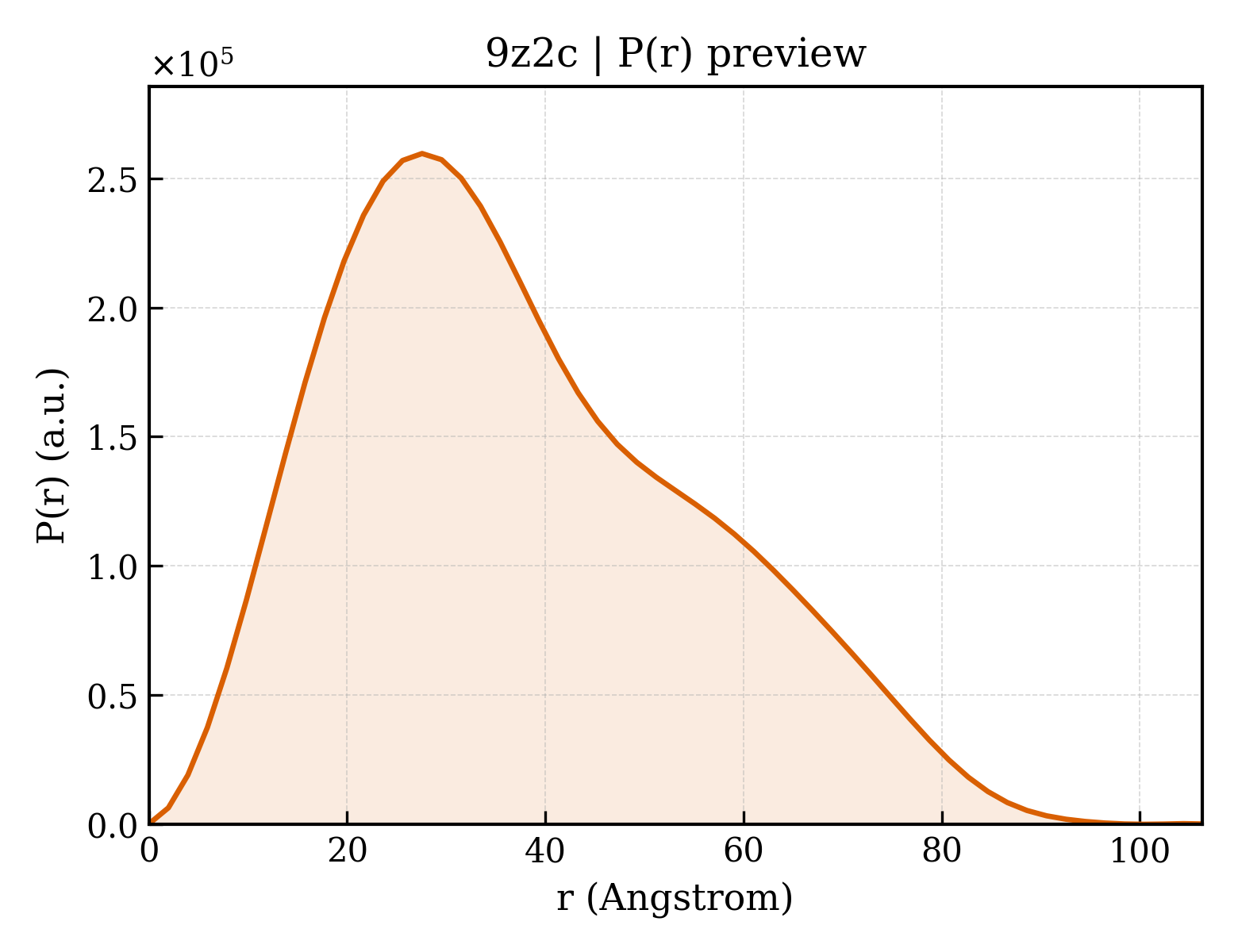

9z2c__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.29 Å
Rg (electron density)	29.12 Å
Total Rg	29.58 Å
Atom count	4628
Residues	598
Excluded volume	81642 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9z2c__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Ketohexokinase
Molecular weight formula_weight	34076.6 kDa
EC 编号 ec_number	2.7.1.3
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4921

MGSSHHHHHHSSGLVPRGSQILCVGLVVLDVISLVDKYPKEDSEIRCLSQRWQRGGNASNSCTVLSLLGAPCAFMGSMAPGHVADFLVADFRRRGVDVSQVAWQSKGDTPSSCCIINNSNGNRTIVLHDTSLPDVSATDFEKVDLTQFKWIHIEGRNASEQVKMLQRIDAHNTRQPPEQKIRVSVEVEKPREELFQLFGYGDVVFVSKDVAKHLGFQSAEEALRGLYGRVRKGAVLVCAWAEEGADALGPDGKLLHSDAFPPPRVVDTLGAGDTFNASVIFSLSQGRSVQEALRFGCQVAGKKCGLQGFDGIV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	;3-amino-3-(4-{7,7-difluoro-2-[(2R)-2-(trifluoromethyl)azetidin-1-yl]-6,7-dihydro-5H-cyclopenta[d]pyrimidin-4-yl}phenyl)-1lambda~6~-thietane-1,1-dione ;
Molecular weight formula_weight	474.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	beta-D-fructofuranose
Molecular weight formula_weight	180.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	271

▶

Unit-cell length a length_a	81.879 Å
Unit-cell length b length_b	82.777 Å
Unit-cell length c length_c	143.903 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	orthorhombic

Resolution resolution	2.020 Å
Low-resolution limit resolution_low	45.260 Å
R factor r_factor	0.2095
R_work r_work	0.2084
R_free r_free	0.2306
