9zc6
5-methyl-cytidine L-21 ScaI Tetrahymena Ribozyme
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9zc6 |
| deposition_date | 2025-11-22 |
| title | 5-methyl-cytidine L-21 ScaI Tetrahymena Ribozyme |
| keywords | RNA, Tetrahymena ribozyme, 5mC, 5-methyl-cytidine, modified base; RNA |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 42.82 Å |
| rg_electron | 42.75 Å |
| i0 | 714821000.00 |
| molecular_weight | 126530.0 kDa |
| excluded_volume | 118860 ų |
| envelope_volume | 228910 ų |
| shell_volume | 47825 ų |
| envelope_diameter | 152.9 Å |
| shell_rg | 44.53 Å |
| envelope_rg | 41.38 Å |
| shape_rg | 42.71 Å |
| total_rg | 42.86 Å |
| total_atoms | 8354 |
| n_residues | 316 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

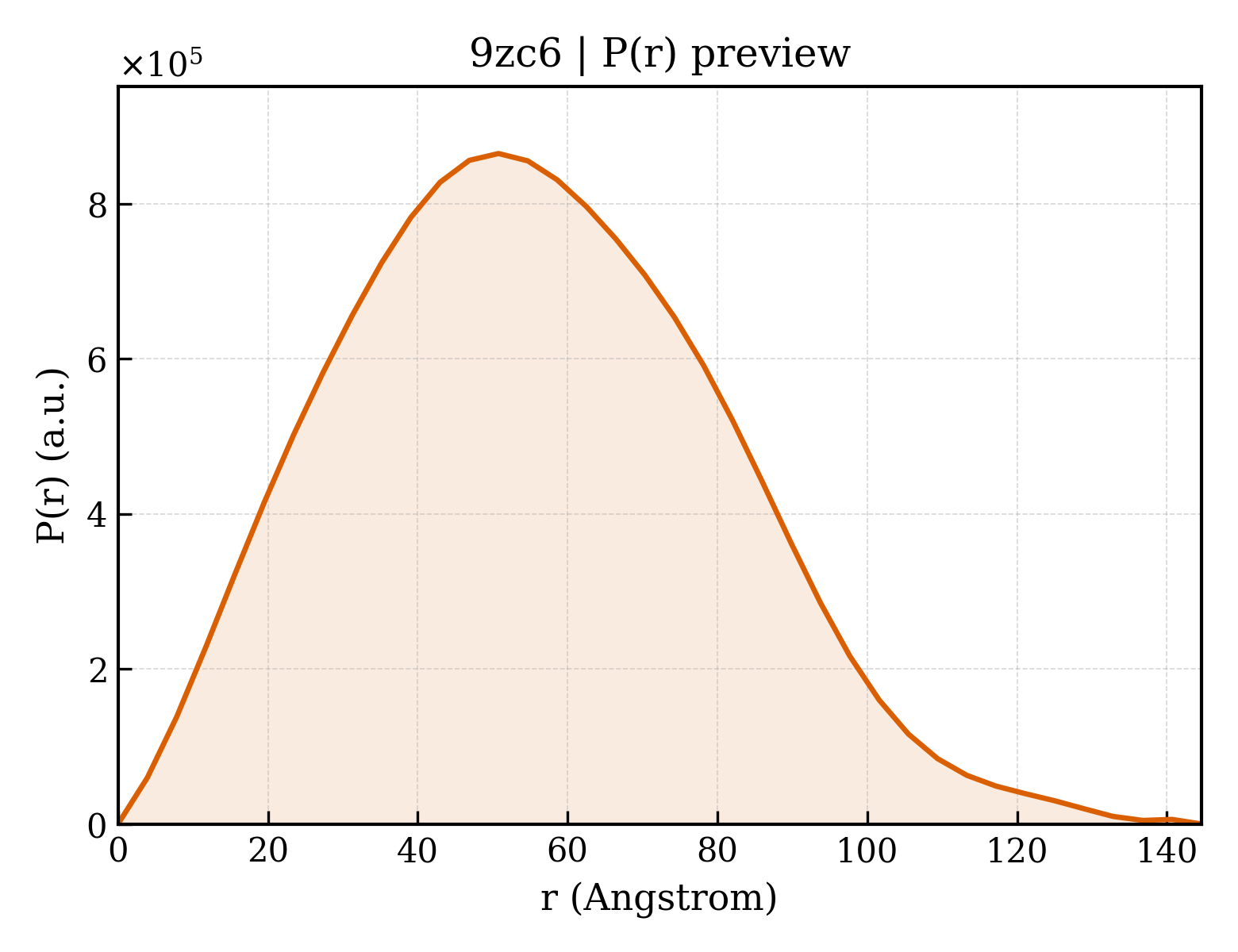

3. P(r) Analysis (GNOM)
| dmax | 144.6 Å |
| rg_real | 42.82 Å |
| rg_real_error | 1.29 Å |
| i0_real | 7.1480e+08 |
| i0_real_error | 1.3190e+07 |
| rg_reciprocal | 42.82 Å |
| i0_reciprocal | 714800000.0000 |
| total_estimate | 0.8852 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 50.8 Å |
| skewness | 0.283 |
| kurtosis | -0.311 |
| angular_range | — – 0.1850 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 14170000.0000 |
| n_real_points | 38 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.896; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.815 |
