Cryo-EM structure of RNase P RNA from Geobacillus stearothermophilus, conformer 55

Method: ELECTRON MICROSCOPY D_max: 160.6 Å Quality: GOOD

SAXS Profile

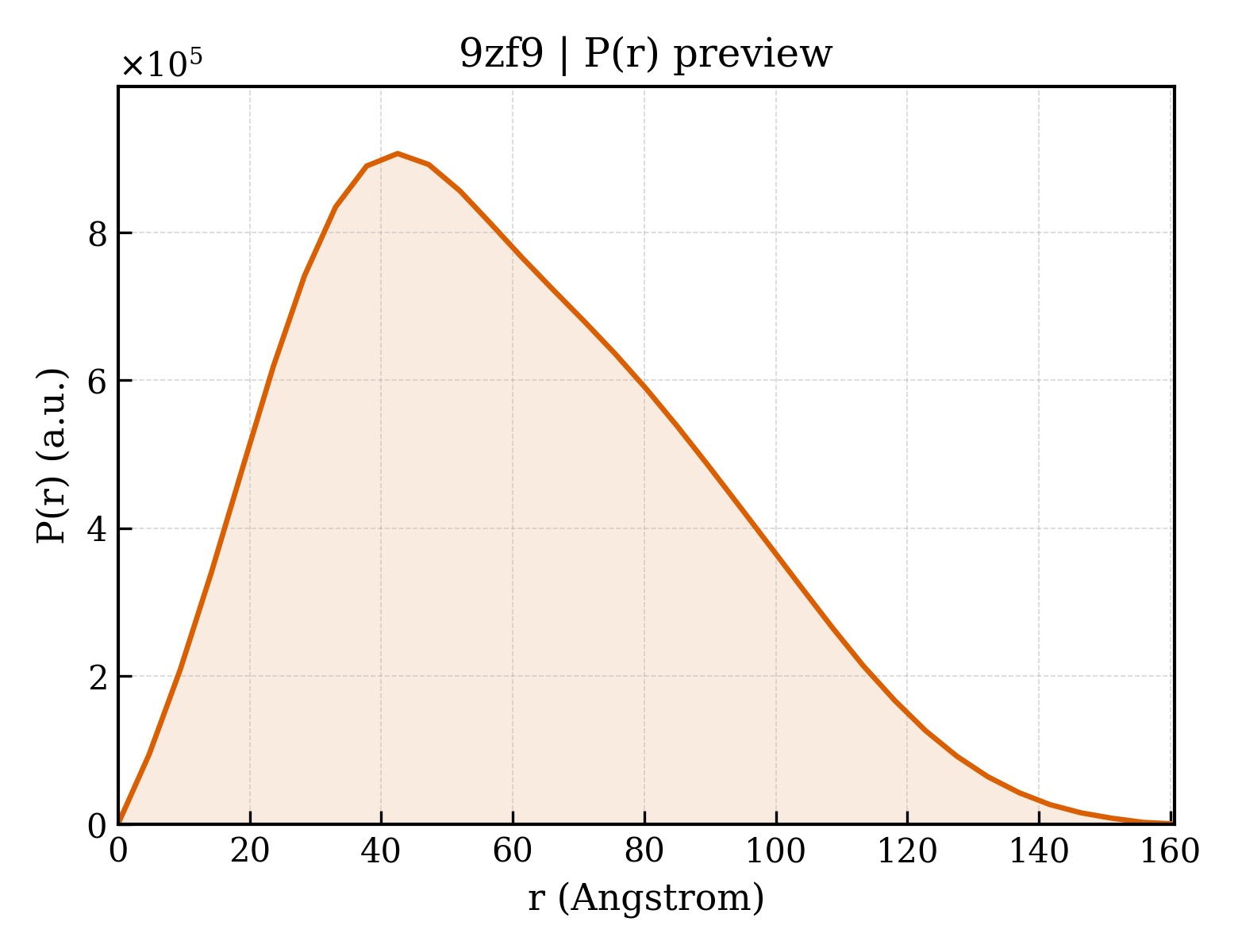

P(r) Distribution

▼

1. Structure Basics

entry_id	9zf9
deposition_date	2025-12-01
title	Cryo-EM structure of RNase P RNA from Geobacillus stearothermophilus, conformer 55
keywords	RNase P RNA, Geobacillus stearothermophilus, catalytic RNA, cryo-EM structure, conformational heterogeneity, RNA; RNA
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	46.36 Å
rg_electron	46.75 Å
i0	844799000.00
molecular_weight	136650.0 kDa
excluded_volume	127060 Å³
envelope_volume	230230 Å³
shell_volume	45290 Å³
envelope_diameter	165.2 Å
shell_rg	45.61 Å
envelope_rg	45.47 Å
shape_rg	46.74 Å
total_rg	46.74 Å
total_atoms	8998
n_residues	417
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	160.6 Å
rg_real	46.72 Å
rg_real_error	1.80 Å
i0_real	8.4480e+08
i0_real_error	1.6240e+07
rg_reciprocal	46.36 Å
i0_reciprocal	844400000.0000
total_estimate	0.8562
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	42.5 Å
skewness	0.444
kurtosis	-0.419
angular_range	— – 0.1700 Å⁻¹
current_alpha	0.0000
highest_alpha	19570000.0000
n_real_points	35
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.835; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.937; Smooth: 0.685

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.900 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.90 Å
resolution_method	—
num_particles	62423

description	RNase P RNA
formula_weight	135305.2 kDa
src_method	man
entity_count	1

Cryo-EM structure of RNase P RNA from Geobacillus stearothermophilus, conformer 55

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

EM 3D

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 non-polymer

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Geobacillus stearothermophilus
ncbi_taxonomy_id	1422
host_organism	in vitro transcription vector pT7-TP(deltai)

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	36

fit	/app/data/saxs_computation/zf/9zf9/9zf9.fit
pddf	/app/data/pr_computation/zf/9zf9/9zf9.pr.out
profile	/app/data/saxs_computation/zf/9zf9/9zf9.dat

type	polyribonucleotide
strand_id	A
atom_count	8998
