9zfz

7118 Fab in complex with Plasmodium falciparum rsCSP

Method: ELECTRON MICROSCOPY D_max: 101.8 Å Quality: EXCELLENT

SAXS Profile

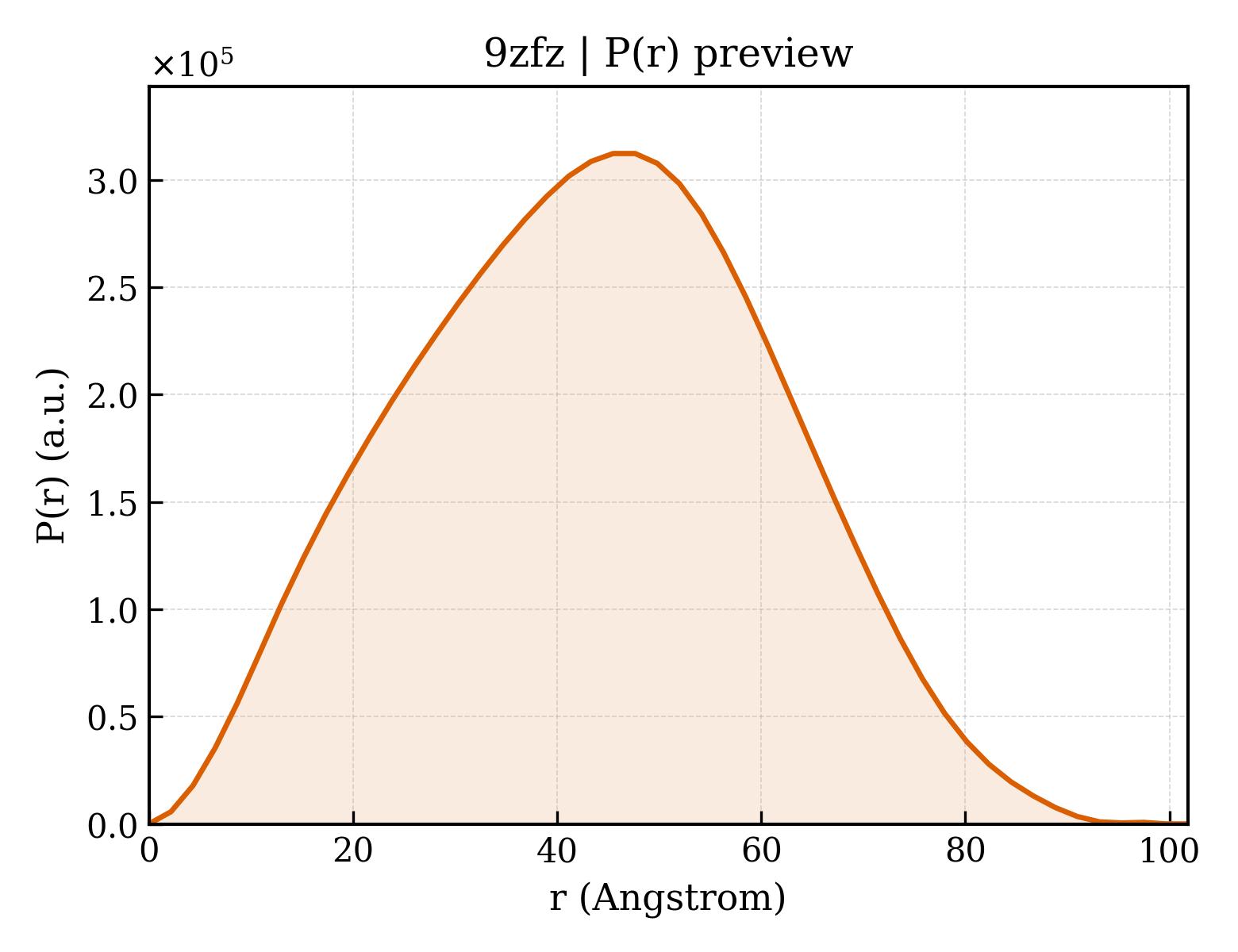

P(r) Distribution

▼

1. Structure Basics

entry_id	9zfz
deposition_date	2025-12-02
title	7118 Fab in complex with Plasmodium falciparum rsCSP
keywords	Plasmodium, malaria, CSP, Fab, homotypic, IMMUNE SYSTEM; IMMUNE SYSTEM
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	33.34 Å
rg_electron	32.88 Å
i0	185805000.00
molecular_weight	107570.0 kDa
excluded_volume	133940 Å³
envelope_volume	173720 Å³
shell_volume	43506 Å³
envelope_diameter	104.0 Å
shell_rg	40.17 Å
envelope_rg	32.45 Å
shape_rg	32.83 Å
total_rg	33.61 Å
total_atoms	7576
n_residues	925
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	101.8 Å
rg_real	33.15 Å
rg_real_error	0.80 Å
i0_real	1.8580e+08
i0_real_error	2.7980e+06
rg_reciprocal	33.27 Å
i0_reciprocal	185800000.0000
total_estimate	0.9065
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	97.5 Å
skewness	0.030
kurtosis	-0.581
angular_range	— – 0.2350 Å⁻¹
current_alpha	0.0000
highest_alpha	20150000.0000
n_real_points	48
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.941; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.968

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Fab 7118 Heavy Chain
formula_weight	13340.9 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	A,C,E,H
atom_count	7576

EVQVVESGGGVVQPGRSLRLSCTASGFTFGDYAMSWFRQAPGKGLEWVGFIRSEANGGAPEYAASVKGRFTISRDDFKSIAYLQMNSLKTEDTAAYYCTRVRTNDFRDMDVWGKGTTVAVSS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Cricetulus griseus

Entity 2 polymer

description	Fab 7118 Light Chain
formula_weight	12521.2 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	B,D,F,L

DIVMTQTPLSLSVTPGQPASISCKSTESLLHRDGKTYLYWYLQKPGQPPQLLIYEVSNRFSGVPDRFSGSGSVTDFTLKISRVEAEDIGVYYCMQTIDLPWTFGQGTKVEIK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Cricetulus griseus

Entity 3 polymer

description	Circumsporozoite Protein
formula_weight	30232.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	W

YGSSSNTRVLNELNYDNAGTNLYNELEMNYYGKQENWYSLKKNSRSLGENDDGNNEDNEKLRKPKHKKLKQPADGNPDPNANPNVDPNANPNVDPNANPNVDPNANPNANPNANPNANPNANPNANPNANPNANPNANPNANPNANPNANPNANPNANPNANPNANPNKNNQGNGQGHNMPNDPNRNVDENANANSAVKNNNNEEPSDKHIKEYLNKIQNSLSTEWSPCSVTCGNGIQVRIKPGSANKPKDELDYANDIEKKICKMEKCSSVFNVVNS

Source

organism	Plasmodium falciparum
ncbi_taxonomy_id	5833
host_organism	Escherichia coli

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.300 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.30 Å
resolution_method	—
num_particles	250774

fit	/app/data/saxs_computation/zf/9zfz/9zfz.fit
pddf	/app/data/pr_computation/zf/9zfz/9zfz.pr.out
profile	/app/data/saxs_computation/zf/9zfz/9zfz.dat
