Cryo-EM structure of RNase P RNA from Geobacillus stearothermophilus, conformer 35

Method: ELECTRON MICROSCOPY D_max: 166.0 Å Quality: GOOD

SAXS Profile

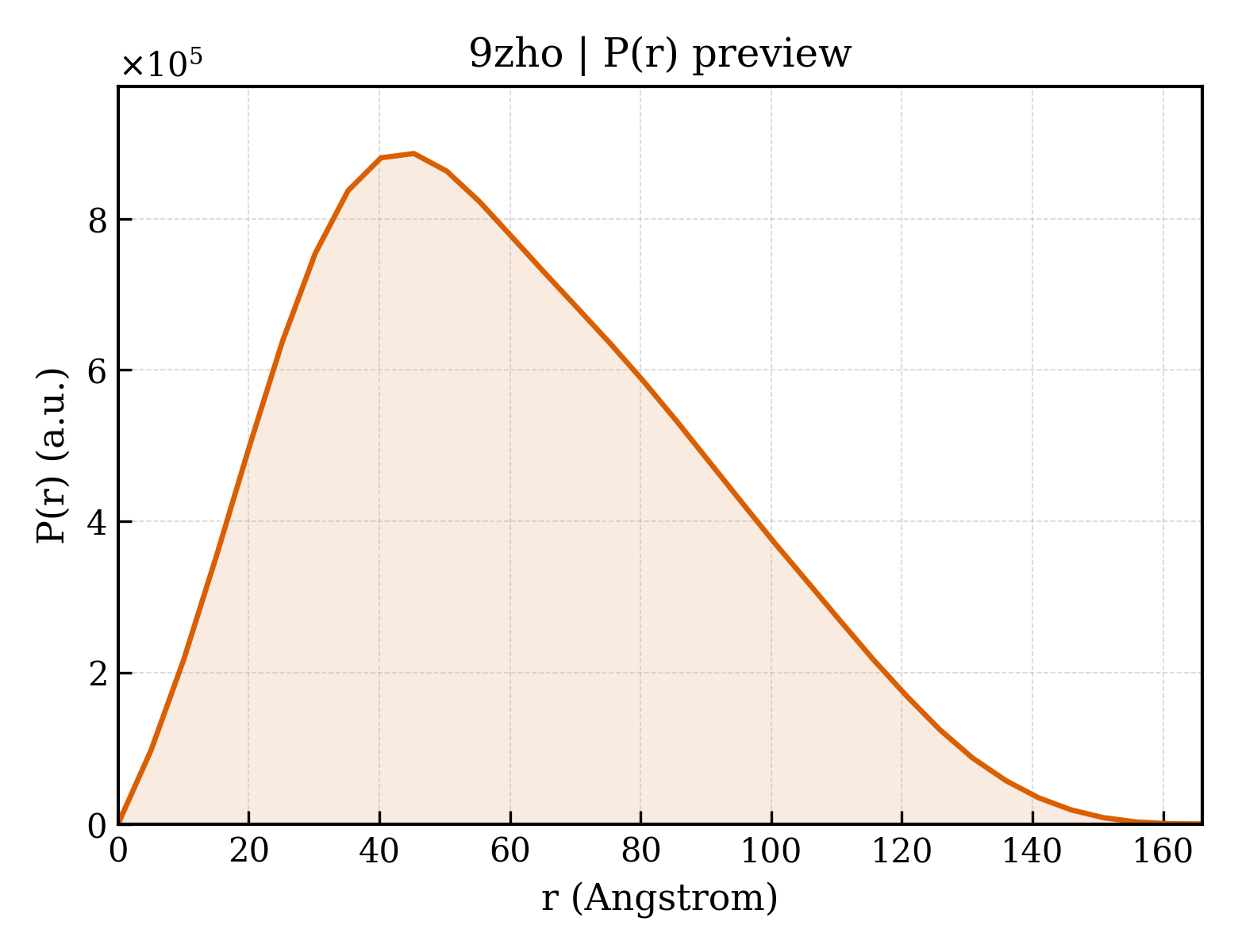

P(r) Distribution

▼

1. Structure Basics

entry_id	9zho
deposition_date	2025-12-03
title	Cryo-EM structure of RNase P RNA from Geobacillus stearothermophilus, conformer 35
keywords	RNase P RNA, Geobacillus stearothermophilus, catalytic RNA, cryo-EM structure, conformational heterogeneity, RNA; RNA
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	47.24 Å
rg_electron	47.65 Å
i0	844917000.00
molecular_weight	136690.0 kDa
excluded_volume	127100 Å³
envelope_volume	238890 Å³
shell_volume	46019 Å³
envelope_diameter	164.9 Å
shell_rg	46.44 Å
envelope_rg	46.23 Å
shape_rg	47.64 Å
total_rg	47.63 Å
total_atoms	9000
n_residues	417
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	166.0 Å
rg_real	47.62 Å
rg_real_error	2.01 Å
i0_real	8.4490e+08
i0_real_error	1.7510e+07
rg_reciprocal	47.24 Å
i0_reciprocal	844500000.0000
total_estimate	0.8539
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	45.3 Å
skewness	0.436
kurtosis	-0.455
angular_range	— – 0.1650 Å⁻¹
current_alpha	0.0000
highest_alpha	20630000.0000
n_real_points	34
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.815; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.895; Smooth: 0.757

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.000 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.00 Å
resolution_method	—
num_particles	60903

description	RNase P RNA
formula_weight	135305.2 kDa
src_method	syn
entity_count	1

Cryo-EM structure of RNase P RNA from Geobacillus stearothermophilus, conformer 35

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

EM 3D

5. Entities & Polymer Info (3)

Entity 1 polymer

Polymer

Entity 2 non-polymer

Entity 3 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	38

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	1

fit	/app/data/saxs_computation/zh/9zho/9zho.fit
pddf	/app/data/pr_computation/zh/9zho/9zho.pr.out
profile	/app/data/saxs_computation/zh/9zho/9zho.dat

type	polyribonucleotide
strand_id	A
atom_count	9001
