Cryo-EM structure of RNase P RNA from Geobacillus stearothermophilus, conformer 47

Method: ELECTRON MICROSCOPY D_max: 165.0 Å Quality: GOOD

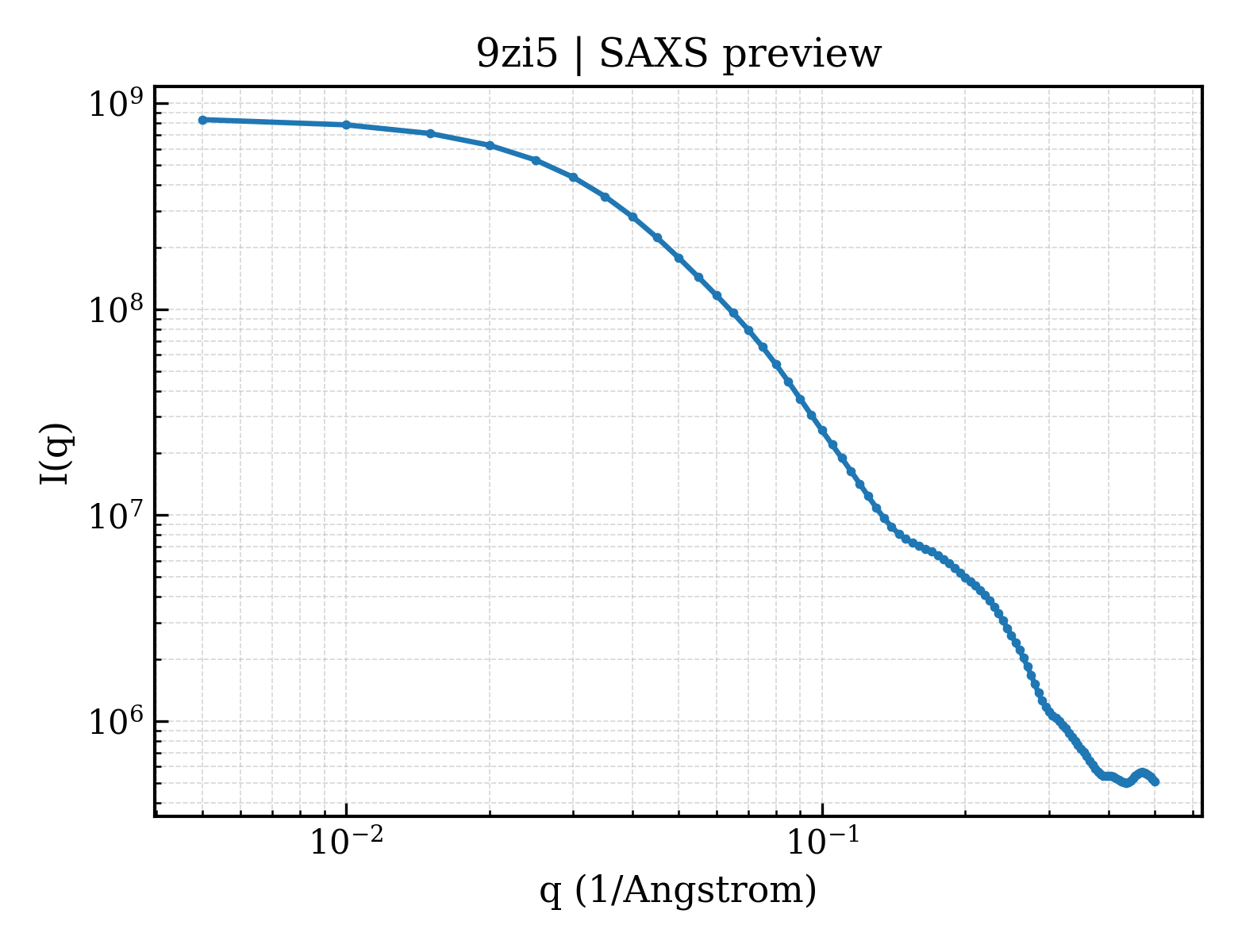

SAXS Profile

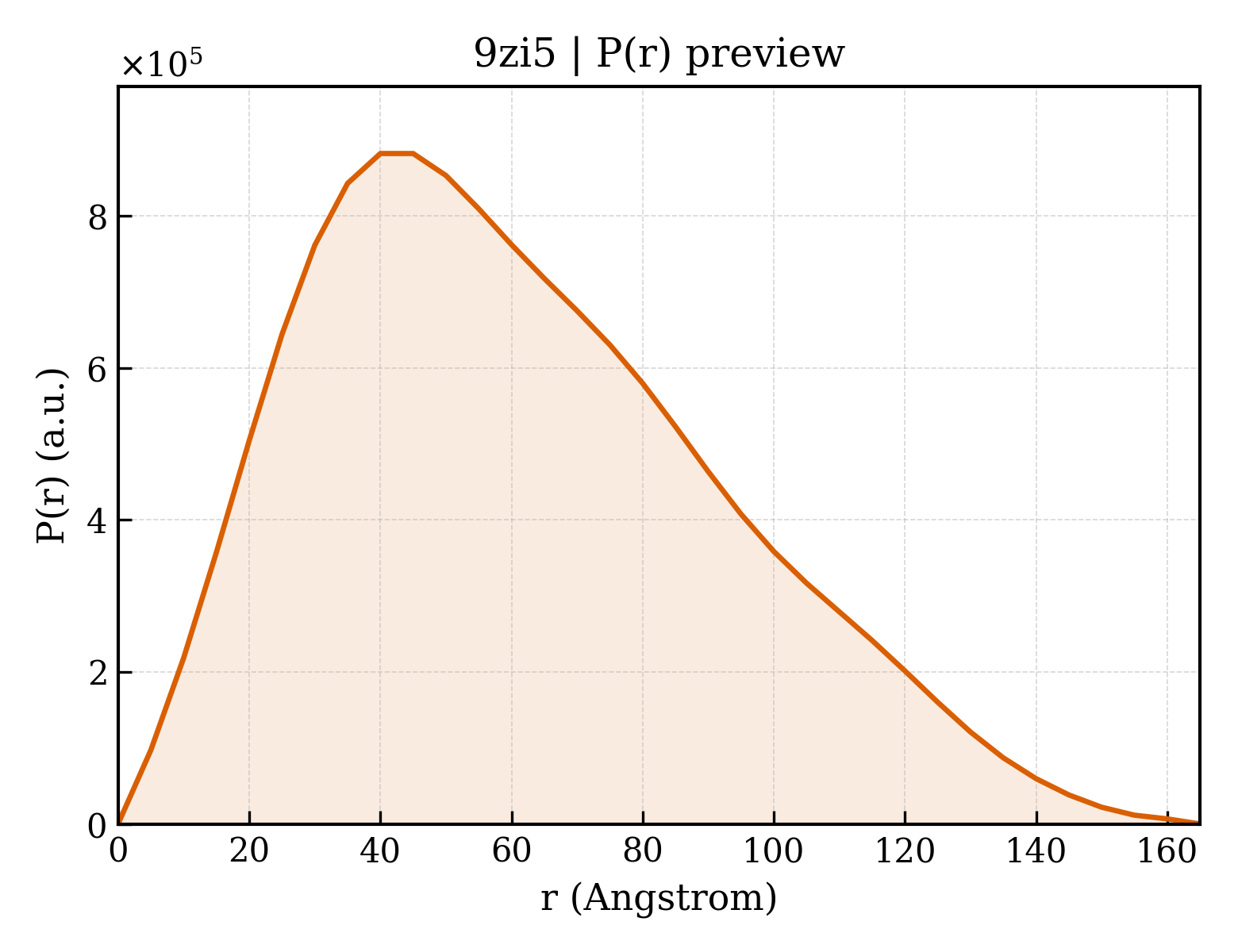

P(r) Distribution

▼

1. Structure Basics

entry_id	9zi5
deposition_date	2025-12-03
title	Cryo-EM structure of RNase P RNA from Geobacillus stearothermophilus, conformer 47
keywords	RNase P RNA, Geobacillus stearothermophilus, catalytic RNA, cryo-EM structure, conformational heterogeneity, RNA; RNA
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	47.87 Å
rg_electron	48.48 Å
i0	849231000.00
molecular_weight	137080.0 kDa
excluded_volume	127440 Å³
envelope_volume	239040 Å³
shell_volume	45554 Å³
envelope_diameter	176.7 Å
shell_rg	46.06 Å
envelope_rg	48.04 Å
shape_rg	48.49 Å
total_rg	48.40 Å
total_atoms	9016
n_residues	417
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	165.0 Å
rg_real	48.41 Å
rg_real_error	1.83 Å
i0_real	8.4920e+08
i0_real_error	1.7110e+07
rg_reciprocal	47.87 Å
i0_reciprocal	848600000.0000
total_estimate	0.8330
solution_quality	GOOD a GOOD solution
n_peaks	0
r_peak_primary	— Å
skewness	0.506
kurtosis	-0.362
angular_range	— – 0.1650 Å⁻¹
current_alpha	0.0000
highest_alpha	21640000.0000
n_real_points	34
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.816; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.871; Smooth: 0.505

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.960 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.96 Å
resolution_method	—
num_particles	140356

description	RNase P RNA
formula_weight	135304.2 kDa
src_method	man
entity_count	1

Cryo-EM structure of RNase P RNA from Geobacillus stearothermophilus, conformer 47

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

EM 3D

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 non-polymer

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Geobacillus stearothermophilus
ncbi_taxonomy_id	1422
host_organism	in vitro transcription vector pT7-TP(deltai)

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	54

fit	/app/data/saxs_computation/zi/9zi5/9zi5.fit
pddf	/app/data/pr_computation/zi/9zi5/9zi5.pr.out
profile	/app/data/saxs_computation/zi/9zi5/9zi5.dat

type	polyribonucleotide
strand_id	A
atom_count	9016
