9zih

Cryo-EM structure of Geobacillus stearothermophilus RNase P holoenzyme in 1 mM Mg2+, conformer 9

Method: ELECTRON MICROSCOPY D_max: 162.7 Å Quality: GOOD

SAXS Profile

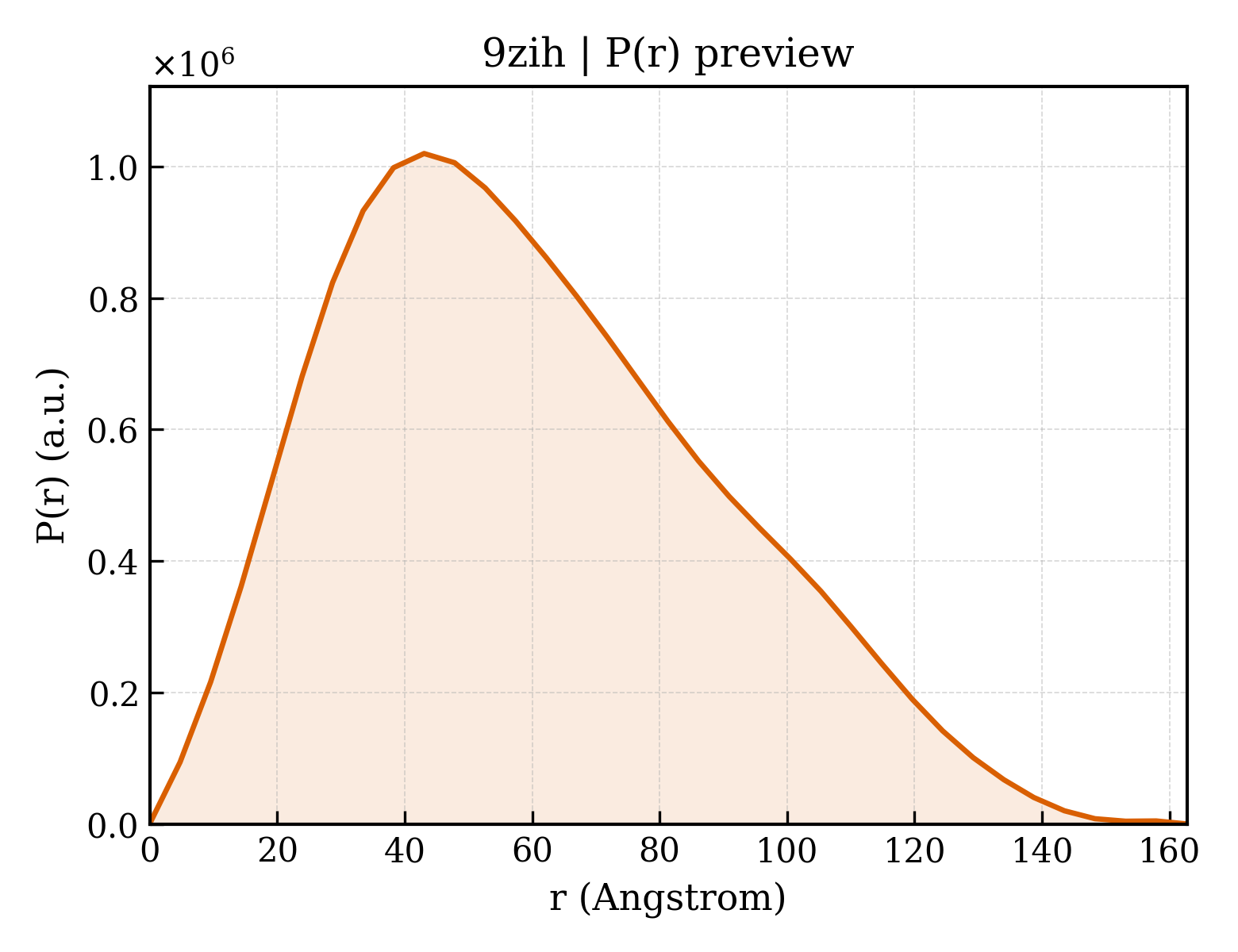

P(r) Distribution

▼

1. Structure Basics

entry_id	9zih
deposition_date	2025-12-03
title	Cryo-EM structure of Geobacillus stearothermophilus RNase P holoenzyme in 1 mM Mg2+, conformer 9
keywords	ribozyme, RNA, RNase P, RNA-HYDROLASE complex; RNA/HYDROLASE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	46.67 Å
rg_electron	46.96 Å
i0	938704000.00
molecular_weight	150140.0 kDa
excluded_volume	144260 Å³
envelope_volume	262540 Å³
shell_volume	50653 Å³
envelope_diameter	171.2 Å
shell_rg	46.60 Å
envelope_rg	45.94 Å
shape_rg	46.95 Å
total_rg	46.97 Å
total_atoms	9947
n_residues	533
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	162.7 Å
rg_real	47.04 Å
rg_real_error	1.95 Å
i0_real	9.3870e+08
i0_real_error	1.7730e+07
rg_reciprocal	46.67 Å
i0_reciprocal	938300000.0000
total_estimate	0.8571
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	43.1 Å
skewness	0.463
kurtosis	-0.418
angular_range	— – 0.1700 Å⁻¹
current_alpha	0.0000
highest_alpha	28640000.0000
n_real_points	35
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.802; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.941; Smooth: 0.791

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	RNase P RNA (417-MER)
formula_weight	135305.2 kDa
src_method	man
entity_count	1

Polymer

type	polyribonucleotide
strand_id	A
atom_count	9947

GUUAAUCAUGCUCGGGUAAUCGCUGCGGCCGGUUUCGGCCGUAGAGGAAAGUCCAUGCUCGCACGGUGCUGAGAUGCCCGUAGUGUUCGUGCCUAGCGAAUCCAUAAGCUAGGGCAGCCUGGCUUUGGCUGGGCUGACGGCGGGGAAAGAACCUACGUCCGGCUGGGAUAUGGUUCGAUUACCCUGAAAGUGCCACAGUGACGGAGCUCUAAGGGAAACCUUAGAGGUGGAACGCGGUAAACCCCACGAGCGAGAAACCCAAAUGAUGGUAGGGGCACCUUCCCGAAGGAAAUGAACGGAGGGAAGGACAGGCGGCGCAUGCAGCCUGUAGAUAGAUGAUUACCGCCGGAGUACGAGGCGCAAAGCCGCUUGCAGUACGAAGGUACAGAACAUGGCUUAUAGAGCAUGAUUAACGUC

Source

organism	Geobacillus stearothermophilus
ncbi_taxonomy_id	1422
host_organism	in vitro transcription vector pT7-TP(deltai)

Entity 2 polymer

description	Ribonuclease P protein component
formula_weight	13456.9 kDa
ec_number	3.1.26.5
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

GMKKKYRIKKNEEFQEVFQQGVSVANRQFVVYTLDRPEQPYFRIGLSVSKKLGKAVVRNRIKRYIRQCFLELKEEVAPGKDYVIIARQPAAEMGYAEVKKSLIHVLRKAGGLKKEA

Source

organism	Geobacillus stearothermophilus
ncbi_taxonomy_id	1422
host_organism	Escherichia coli BL21(DE3)

Entity 3 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	38

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.070 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.07 Å
resolution_method	—
num_particles	90990

fit	/app/data/saxs_computation/zi/9zih/9zih.fit
pddf	/app/data/pr_computation/zi/9zih/9zih.pr.out
profile	/app/data/saxs_computation/zi/9zih/9zih.dat
