9zil

Cryo-EM structure of Geobacillus stearothermophilus RNase P holoenzyme in 1 mM Mg2+, conformer 13

Method: ELECTRON MICROSCOPY D_max: 158.8 Å Quality: GOOD

SAXS Profile

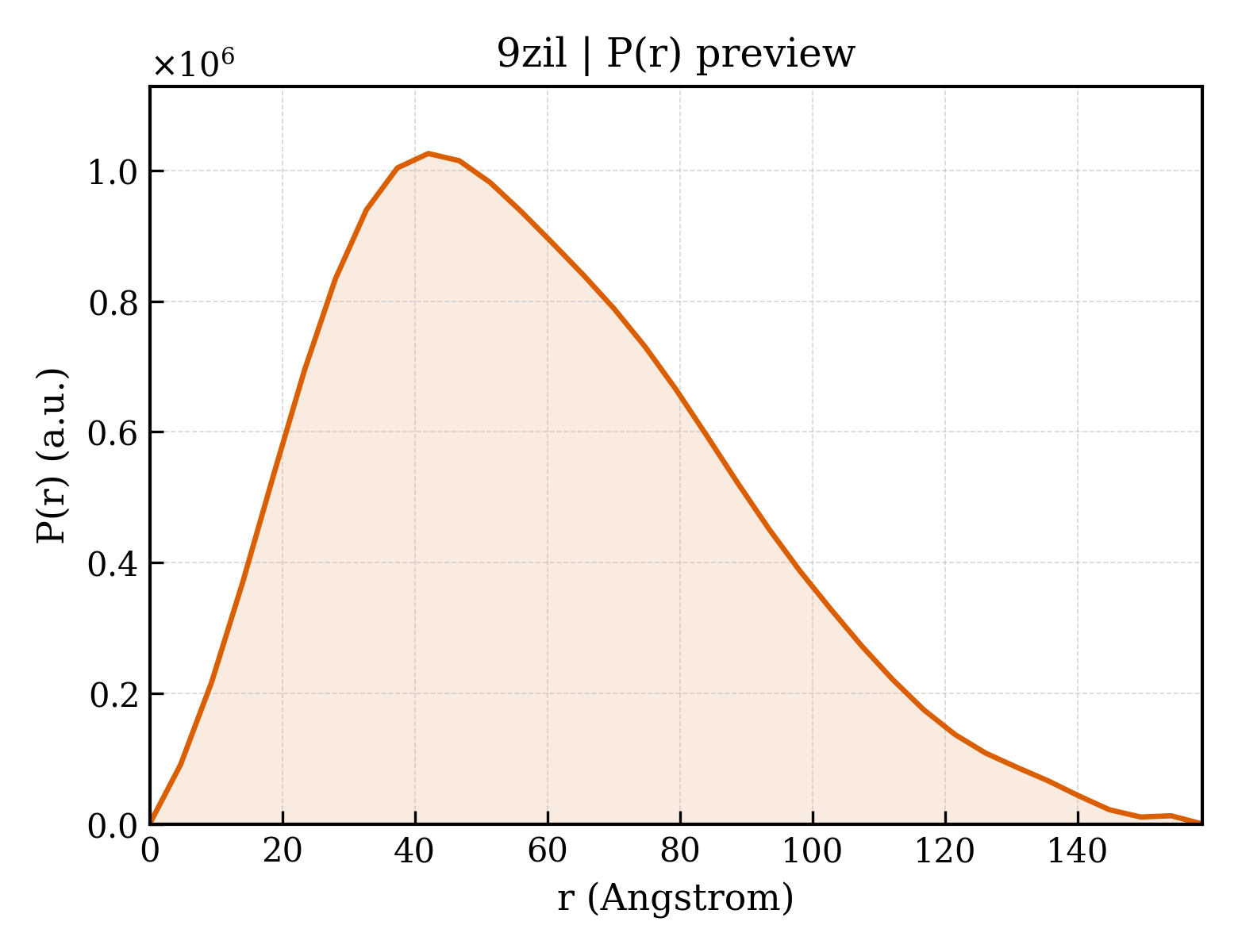

P(r) Distribution

▼

1. Structure Basics

entry_id	9zil
deposition_date	2025-12-03
title	Cryo-EM structure of Geobacillus stearothermophilus RNase P holoenzyme in 1 mM Mg2+, conformer 13
keywords	ribozyme, RNA, RNase P, RNA-HYDROLASE complex; RNA/HYDROLASE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	45.82 Å
rg_electron	46.19 Å
i0	938755000.00
molecular_weight	150090.0 kDa
excluded_volume	144220 Å³
envelope_volume	252970 Å³
shell_volume	50073 Å³
envelope_diameter	170.1 Å
shell_rg	45.82 Å
envelope_rg	44.98 Å
shape_rg	46.18 Å
total_rg	46.20 Å
total_atoms	9945
n_residues	533
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	158.8 Å
rg_real	46.22 Å
rg_real_error	1.57 Å
i0_real	9.3880e+08
i0_real_error	1.8370e+07
rg_reciprocal	45.83 Å
i0_reciprocal	938300000.0000
total_estimate	0.8434
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	42.0 Å
skewness	0.511
kurtosis	-0.240
angular_range	— – 0.1700 Å⁻¹
current_alpha	0.0000
highest_alpha	27700000.0000
n_real_points	35
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.821; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.947; Smooth: 0.550

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	RNase P RNA (417-MER)
formula_weight	135305.2 kDa
src_method	man
entity_count	1

Polymer

type	polyribonucleotide
strand_id	A
atom_count	9945

GUUAAUCAUGCUCGGGUAAUCGCUGCGGCCGGUUUCGGCCGUAGAGGAAAGUCCAUGCUCGCACGGUGCUGAGAUGCCCGUAGUGUUCGUGCCUAGCGAAUCCAUAAGCUAGGGCAGCCUGGCUUUGGCUGGGCUGACGGCGGGGAAAGAACCUACGUCCGGCUGGGAUAUGGUUCGAUUACCCUGAAAGUGCCACAGUGACGGAGCUCUAAGGGAAACCUUAGAGGUGGAACGCGGUAAACCCCACGAGCGAGAAACCCAAAUGAUGGUAGGGGCACCUUCCCGAAGGAAAUGAACGGAGGGAAGGACAGGCGGCGCAUGCAGCCUGUAGAUAGAUGAUUACCGCCGGAGUACGAGGCGCAAAGCCGCUUGCAGUACGAAGGUACAGAACAUGGCUUAUAGAGCAUGAUUAACGUC

Source

organism	Geobacillus stearothermophilus
ncbi_taxonomy_id	1422
host_organism	in vitro transcription vector pT7-TP(deltai)

Entity 2 polymer

description	Ribonuclease P protein component
formula_weight	13456.9 kDa
ec_number	3.1.26.5
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

GMKKKYRIKKNEEFQEVFQQGVSVANRQFVVYTLDRPEQPYFRIGLSVSKKLGKAVVRNRIKRYIRQCFLELKEEVAPGKDYVIIARQPAAEMGYAEVKKSLIHVLRKAGGLKKEA

Source

organism	Geobacillus stearothermophilus
ncbi_taxonomy_id	1422
host_organism	Escherichia coli BL21(DE3)

Entity 3 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	36

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.100 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.10 Å
resolution_method	—
num_particles	85334

fit	/app/data/saxs_computation/zi/9zil/9zil.fit
pddf	/app/data/pr_computation/zi/9zil/9zil.pr.out
profile	/app/data/saxs_computation/zi/9zil/9zil.dat
