9zn5

Hybrid model of a dimer of BrxC-BrxB fusion complexed with PglZ from the Acinetobacter BREX system

Method: ELECTRON MICROSCOPY Dmax: 217.8 Å Quality: GOOD

SAXS Profile

SAXS profile for 9zn5

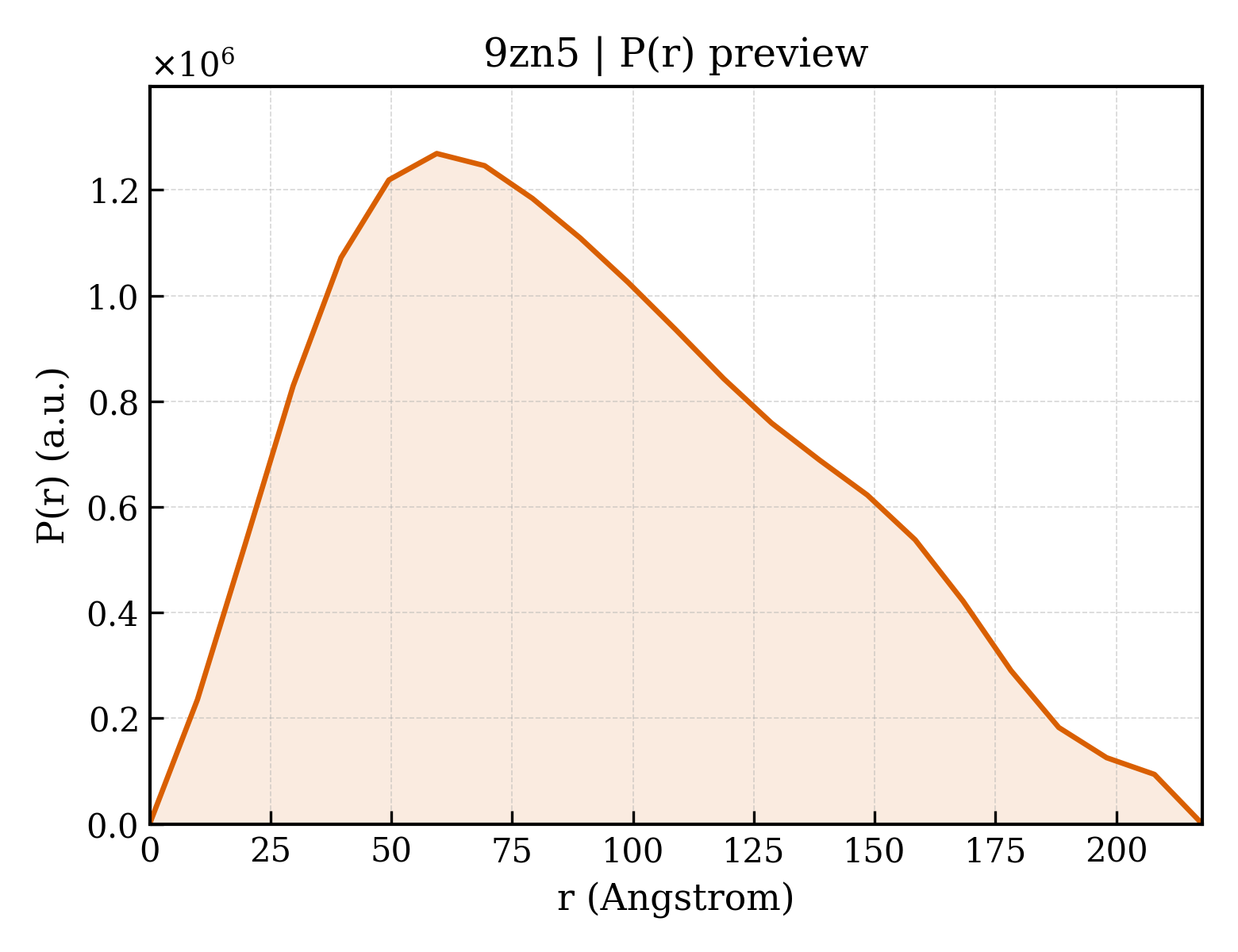

P(r) Distribution

P(r) distribution for 9zn5
▼

1. Structure Basics

entry_id9zn5
deposition_date2025-12-12
titleHybrid model of a dimer of BrxC-BrxB fusion complexed with PglZ from the Acinetobacter BREX system
keywordsRestriction, Bacteriophage, Defense, AlphaFold, ANTIMICROBIAL PROTEIN; ANTIMICROBIAL PROTEIN
methodELECTRON MICROSCOPY
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier71.34 Å
rg_electron71.73 Å
i01897550000.00
molecular_weight370560.0 kDa
excluded_volume465110 ų
envelope_volume749730 ų
shell_volume94736 ų
envelope_diameter249.5 Å
shell_rg61.65 Å
envelope_rg68.75 Å
shape_rg71.75 Å
total_rg71.46 Å
total_atoms51990
n_residues3266
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax217.8 Å
rg_real71.37 Å
rg_real_error1.66 Å
i0_real1.8940e+09
i0_real_error4.2210e+07
rg_reciprocal69.84 Å
i0_reciprocal1891000000.0000
total_estimate0.8351
solution_quality GOOD a GOOD solution
n_peaks1
r_peak_primary59.4 Å
skewness0.400
kurtosis-0.627
angular_range— – 0.1100 Å−1
current_alpha0.0284
highest_alpha73450000.0000
n_real_points23
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.962; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.960; Smooth: 0.004
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

7. Files & Curves (10)
