SAXSdb — 9znn

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

UDP-N-acetylglucosamine--dolichyl-phosphate N-acetylglucosaminephosphotransferase

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–408 Chain B； UniProt 1–408	Not recorded	A1C3G 4-({(2S,3S)-1-amino-3-{[(2S,3R,4S,5R)-5-(aminomethyl)-3,4-dihydroxyoxolan-2-yl]oxy}-3-[(2S,3S,4R,5R)-5-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)-3,4-dihydroxyoxolan-2-yl]-1-oxopropan-2-yl}amino)-N-[(4-{4-[4-(trifluoromethoxy)phenoxy]piperidin-1-yl}phenyl)methyl]butanamide (non-preferred name) × 2 A1C3H (2R)-3-{[(S)-[(2R)-2,3-dihydroxypropoxy](hydroxy)phosphoryl]oxy}-2-{[(9Z)-octadec-9-enoyl]oxy}propyl (9Z)-octadec-9-enoate × 2	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5；50 mM HEPES pH 7.5, 200 mM NaCl, 5 mM MgCl2, 0.022% (w/v) DDM, and 2 mM TCEP cryo-EM vitrification conditions：Cryogen ETHANE；2-3 uL of sample distributed on grid with blot force +8 and blot time 3 seconds	Resolution 2.90 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9ZNN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5LEV Crystal structure of human UDP-N-acetylglucosamine-dolichyl-phosphate N-acetylglucosaminephosphotransferase (DPAGT1) (V264G mutant) Deposited 2016-06-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–408（408 aa）	Mutation：V264G	UNL UNKNOWN LIGAND × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9；293 K；0.1M bicine pH 9.0, 0.05M sodium chloride, 38% PEG300, 5mM Na2WO4	Resolution 3.20 Å R-free 0.240
5O5E Crystal structure of human UDP-N-acetylglucosamine-dolichyl-phosphate N-acetylglucosaminephosphotransferase (DPAGT1) (V264G mutant) in complex with tunicamycin Deposited 2017-06-01	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–408（408 aa）	Mutation：V264G	P6L (2S)-3-{[{[(2S)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-2-[(6E)-HEXADEC-6-ENOYLOXY]PROPYL (8E)-OCTADEC-8-ENOATE × 2 9LH Tunicamycin × 2 UNL UNKNOWN LIGAND × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；0.1M bicine pH 8.5 -- 0.05M sodium chloride -- 36% PEG200	Resolution 3.40 Å R-free 0.236
6BW5 Human GPT (DPAGT1) in complex with tunicamycin Deposited 2017-12-14	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–408（408 aa） Chain B 1–408（408 aa）	Not recorded	TUM Tunicamycin × 2 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；PEG400, calcium chloride	Resolution 3.10 Å R-free 0.288
6BW5 Human GPT (DPAGT1) in complex with tunicamycin Deposited 2017-12-14	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–408（408 aa） Chain D 1–408（408 aa）	Not recorded	TUM Tunicamycin × 2 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；PEG400, calcium chloride	Resolution 3.10 Å R-free 0.288
6BW6 Human GPT (DPAGT1) H129 variant in complex with tunicamycin Deposited 2017-12-14	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–408（408 aa） Chain B 1–408（408 aa）	Not recorded	TUM Tunicamycin × 2 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；PEG400, calcium chloride	Resolution 2.95 Å R-free 0.291
6BW6 Human GPT (DPAGT1) H129 variant in complex with tunicamycin Deposited 2017-12-14	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–408（408 aa） Chain D 1–408（408 aa）	Not recorded	TUM Tunicamycin × 2 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；PEG400, calcium chloride	Resolution 2.95 Å R-free 0.291
6FM9 Crystal structure of human UDP-N-acetylglucosamine-dolichyl-phosphate N-acetylglucosaminephosphotransferase (DPAGT1) Deposited 2018-01-30	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–408（408 aa）	Not recorded	P6L (2S)-3-{[{[(2S)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-2-[(6E)-HEXADEC-6-ENOYLOXY]PROPYL (8E)-OCTADEC-8-ENOATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；0.05M ADA pH 6.5 -- 24% PEG400	Resolution 3.60 Å R-free 0.270
6FWZ Crystal structure of human UDP-N-acetylglucosamine-dolichyl-phosphate N-acetylglucosaminephosphotransferase (DPAGT1) (V264G mutant) in complex with UDP-GlcNAc Deposited 2018-03-07	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–408（408 aa）	Mutation：V264G	MG MAGNESIUM ION × 2 UD1 URIDINE-DIPHOSPHATE-N-ACETYLGLUCOSAMINE × 2 UNL UNKNOWN LIGAND × 2 P6L (2S)-3-{[{[(2S)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-2-[(6E)-HEXADEC-6-ENOYLOXY]PROPYL (8E)-OCTADEC-8-ENOATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9；293 K；0.1M bicine pH 9.0 -- 0.05M sodium chloride -- 37.5% PEG300	Resolution 3.10 Å R-free 0.236

6 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GPT_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–408； UniProt 1–408 Author chain B； PDBConstruct 1–408； UniProt 1–408

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9znn
Deposition date deposition_date	2025-12-14
Structure title title	Cryo-EM structure of human UDP-N-acetylglucosamine-dolichyl-phosphate N-acetylglucosaminephosphotransferase (DPAGT1) in complex with APPB
Keywords keywords	polyprenyl-phosphate N-acetylhexosamine phosphate transferase, phosphoglycosyltransferase, membrane protein, TRANSFERASE; TRANSFERASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	29.86 Å
Radius of gyration Rg (electron density) rg_electron	29.15 Å
Forward intensity I(0) i0	215493000.00
Molecular weight molecular_weight	83359.0 kDa
Excluded volume excluded_volume	83320 Å³
Envelope volume envelope_volume	138170 Å³
Hydration-shell volume shell_volume	39168 Å³
Envelope diameter envelope_diameter	107.2 Å
Shell Rg shell_rg	36.81 Å
Envelope Rg envelope_rg	29.89 Å
Shape Rg shape_rg	29.14 Å
Total Rg total_rg	29.67 Å
Total atoms total_atoms	6351
Residues n_residues	771
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

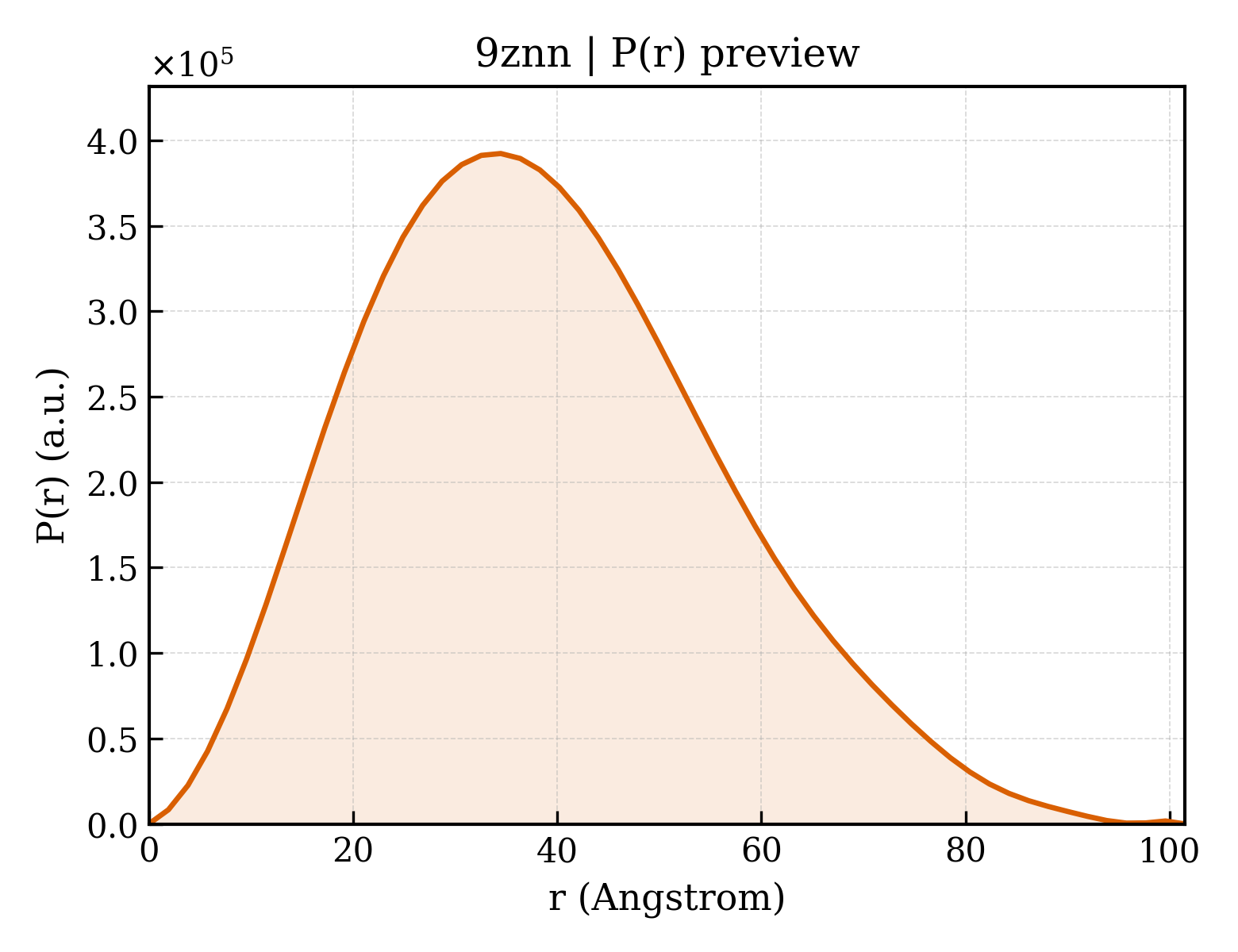

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	101.5 Å
Rg (real space) rg_real	29.87 Å
Rg uncertainty (real space) rg_real_error	0.78 Å
I(0) (real space) i0_real	2.1550e+08
I(0) uncertainty (real space) i0_real_error	3.5440e+06
Rg (reciprocal space) rg_reciprocal	29.87 Å
I(0) (reciprocal space) i0_reciprocal	215500000.0000
Solution quality estimate total_estimate	0.8755
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	34.5 Å
Skewness Skewness skewness	0.393
Kurtosis Kurtosis kurtosis	-0.252
Angular range angular_range	— – 0.2650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	28490000.0000
Real-space data points n_real_points	54
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.818; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.938

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	UDP-N-acetylglucosamine--dolichyl-phosphate N-acetylglucosaminephosphotransferase
Molecular weight formula_weight	47312.9 kDa
EC 编号 ec_number	2.7.8.15
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6462

MWAFSELPMPLLINLIVSLLGFVATVTLIPAFRGHFIAARLCGQDLNKTSRQQIPESQGVISGAVFLIILFCFIPFPFLNCFVKEQCKAFPHHEFVALIGALLAICCMIFLGFADDVLNLRWRHKLLLPTAASLPLLMVYFTNFGNTTIVVPKPFRPILGLHLDLGILYYVYMGLLAVFCTNAINILAGINGLEAGQSLVISASIIVFNLVELEGDCRDDHVFSLYFMIPFFFTTLGLLYHNWYPSRVFVGDTFCYFAGMTFAVVGILGHFSKTMLLFFMPQVFNFLYSLPQLLHIIPCPRHRIPRLNIKTGKLEMSYSKFKTKSLSFLGTFILKVAESLQLVTVHQSETEDGEFTECNNMTLINLLLKVLGPIHERNLTLLLLLLQILGSAITFSIRYQLVRLFYDVGSSASENLYFQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 non-polymer

Description description	;4-({(2S,3S)-1-amino-3-{[(2S,3R,4S,5R)-5-(aminomethyl)-3,4-dihydroxyoxolan-2-yl]oxy}-3-[(2S,3S,4R,5R)-5-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)-3,4-dihydroxyoxolan-2-yl]-1-oxopropan-2-yl}amino)-N-[(4-{4-[4-(trifluoromethoxy)phenoxy]piperidin-1-yl}phenyl)methyl]butanamide (non-preferred name) ;
Molecular weight formula_weight	881.8 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	(2R)-3-{[(S)-[(2R)-2,3-dihydroxypropoxy](hydroxy)phosphoryl]oxy}-2-{[(9Z)-octadec-9-enoyl]oxy}propyl (9Z)-octadec-9-enoate
Molecular weight formula_weight	775.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	80

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	2.90 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	82209

fit	/app/data/saxs_computation/zn/9znn/9znn.fit
pddf	/app/data/pr_computation/zn/9znn/9znn.pr.out
profile	/app/data/saxs_computation/zn/9znn/9znn.dat
