9zyw
[20,21,22] Two turn tensegrity triangle with 20,21, and 22 bp edges

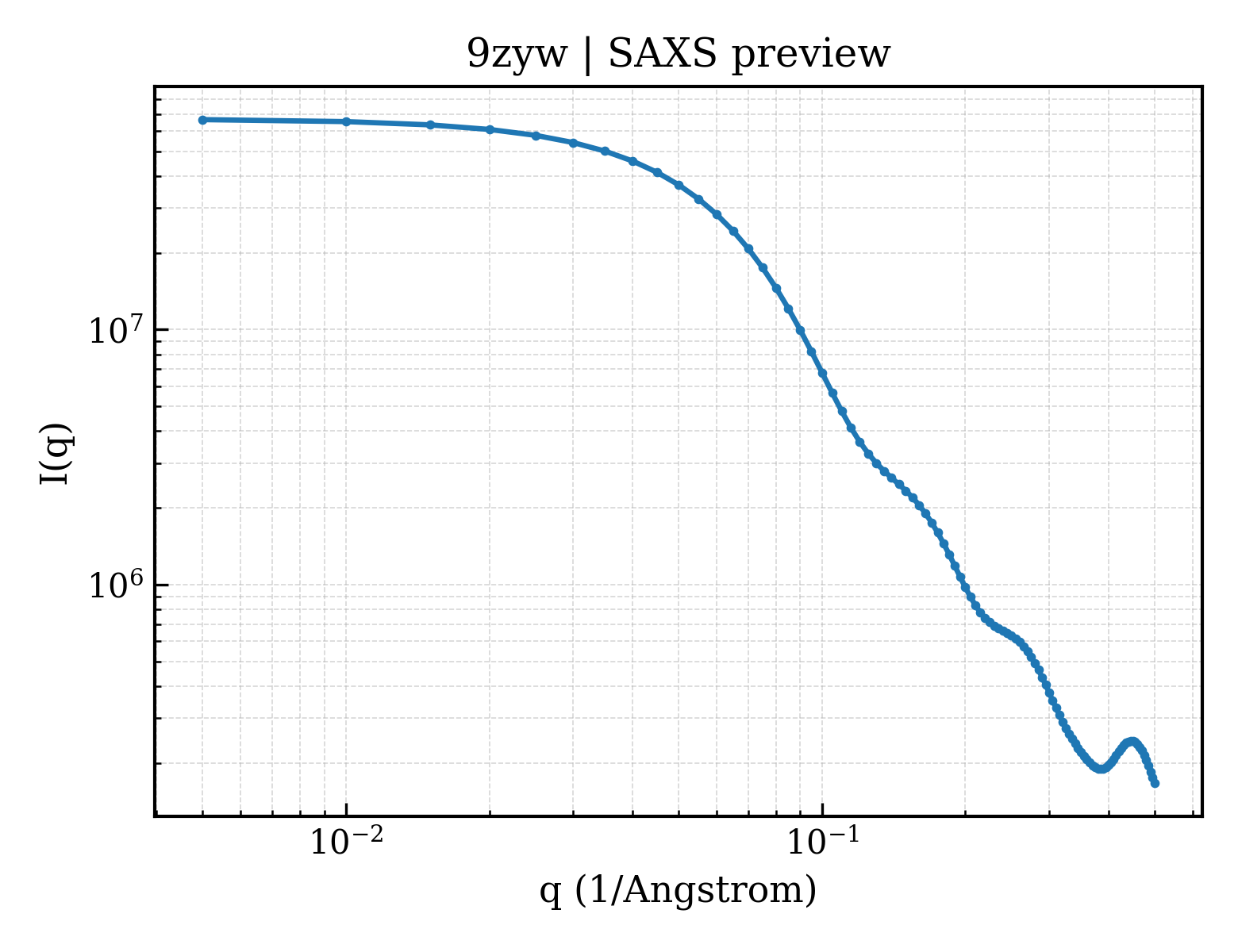

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9zyw |
| deposition_date | 2026-01-06 |
| last_revision | 2026-03-11 |
| title | [20,21,22] Two turn tensegrity triangle with 20,21, and 22 bp edges |
| keywords | Tensegrity triangle, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 26.64 Å |
| rg_electron | 26.30 Å |
| i0 | 66889600.00 |
| molecular_weight | 38610.0 kDa |
| excluded_volume | 37355 ų |
| envelope_volume | 65415 ų |
| shell_volume | 22071 ų |
| envelope_diameter | 88.3 Å |
| shell_rg | 31.54 Å |
| envelope_rg | 26.03 Å |
| shape_rg | 26.27 Å |
| total_rg | 26.75 Å |
| total_atoms | 2562 |
| n_residues | 126 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 84.7 Å |
| rg_real | 26.56 Å |
| rg_real_error | 0.77 Å |
| i0_real | 6.6890e+07 |
| i0_real_error | 1.0140e+06 |
| rg_reciprocal | 26.59 Å |
| i0_reciprocal | 66890000.0000 |
| total_estimate | 0.9113 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 31.1 Å |
| skewness | 0.134 |
| kurtosis | -0.612 |
| angular_range | — – 0.3000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1875000.0000 |
| n_real_points | 61 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.954; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.986 |
