查看完整 summary.json 原文
{
"code": "SASDZS8",
"status": "Published",
"type_of_curve": "Merged",
"angular_unit": "1/A",
"project": {
"title": "Integrated analysis with iCM-SANS, SAXS and MD simulations for dynamics of multi-domain proteins",
"publication": {
"title": "Integrated analysis with iCM-SANS, SAXS and MD simulations for dynamics of multi-domain proteins",
"author_list": "Okuda A, Inoue R, Kurokawa M, Martel A, Porcar L, Osaki R, Fukuzawa K, Weiss K, Pingali S, Urade R, Sugiyama M",
"journal": "Journal of Applied Crystallography",
"doi": "10.1107/S1600576726005832",
"pmid": null,
"published_date": "2026 Jul 29"
},
"status": "released",
"submitted_date": "2026-05-20",
"released_date": "2026-08-05"
},
"pddf_data": null,
"intensities_data": "https://www.sasbdb.org/media/intensities_files/SASDZS8.dat",
"intensities_log_plot": "https://www.sasbdb.org/media/intensities_files/scattering_plots/SASDZS8_dat_img.png",
"intensities_kratky_plot": "https://www.sasbdb.org/media/intensities_files/scattering_plots/SASDZS8_kratky_img.png",
"pddf_plot": null,
"intensities_guinier_plot": "https://www.sasbdb.org/media/intensities_files/scattering_plots/SASDZS8_guinier_img.png",
"sascif_data": "https://www.sasbdb.org/media/sascif/sascif_files/SASDZS8.sascif",
"experiment": {
"instrument": {
"detector": {
"type": null,
"name": "HyPix-6000",
"resolution": 100.0
},
"name": "KURNS",
"city": "Osaka",
"country": "Japan",
"beamline_name": "Rigaku NANOPIX",
"beam_geometry": null,
"type_of_source": "X-ray in house",
"point_source": null,
"line_collimation": null,
"sample_path_length": null,
"line_collimation_slitlength": null,
"line_collimation_integrationwidth": null,
"xray_energy": null,
"beam_profile_ah": null,
"beam_profile_al": null
},
"sample": {
"molecule": [
{
"long_name": "Protein disulfide-isomerase A3 D122N/I124L/R363N/Y364G segmental deuterated",
"short_name": null,
"sequence": "SDVLELTDDNFESRISDTGSAGLMLVEFFAPWCGHCKRLAPEYEAAATRLKGIVPLAKVDCTANTNTCNKYGVSGYPTLKIFRDGEEAGAYDGPRTANGLVSHLKKQAGPASVPLRTEEEFKKFISDKDASIVGFFDDSFSEAHSEFLKAASNLRDNYRFAHTNVESLVNEYDDNGEGIILFRPSHLTNKFEDKTVAYTEQKMTSGKIKKFIQENIFGICPHMTEDNKDLIQGKDLLIAYYDVDYEKNAKGSNYWRNRVMMVAKKFLDAGHKLNFAVASRKTFSHELSDFGLESTAGEIPVVAIRTAKGEKFVMQEEFSRDGKALERFLQDYFDGNLKNGLKSEPIPESNDGPVKVVVAENFDEIVNNENKDVLIEFYAPWCGHCKNLEPKYKELGEKLSKDPNIVIAKMDATANDVPSPYEVRGFPTIYFSPANKKLNPKKYEGGRELSDFISYLQREATNPPVIQEEKPKKKKKAQEDL",
"organism": "Homo sapiens",
"uniprot_code": "P30101",
"uniprot_range_first": null,
"uniprot_range_last": null,
"oligomerization": "monomer",
"molecular_type": "protein",
"uniprot_sequence": "MRLRRLALFPGVALLLAAARLAAASDVLELTDDNFESRISDTGSAGLMLVEFFAPWCGHC\nKRLAPEYEAAATRLKGIVPLAKVDCTANTNTCNKYGVSGYPTLKIFRDGEEAGAYDGPRT\nADGIVSHLKKQAGPASVPLRTEEEFKKFISDKDASIVGFFDDSFSEAHSEFLKAASNLRD\nNYRFAHTNVESLVNEYDDNGEGIILFRPSHLTNKFEDKTVAYTEQKMTSGKIKKFIQENI\nFGICPHMTEDNKDLIQGKDLLIAYYDVDYEKNAKGSNYWRNRVMMVAKKFLDAGHKLNFA\nVASRKTFSHELSDFGLESTAGEIPVVAIRTAKGEKFVMQEEFSRDGKALERFLQDYFDGN\nLKRYLKSEPIPESNDGPVKVVVAENFDEIVNNENKDVLIEFYAPWCGHCKNLEPKYKELG\nEKLSKDPNIVIAKMDATANDVPSPYEVRGFPTIYFSPANKKLNPKKYEGGRELSDFISYL\nQREATNPPVIQEEKPKKKKKAQEDL",
"mw": 54.115,
"total_mw": 54.115,
"number_molecules": 1,
"complex_state": false,
"deuteration": null,
"molecule_source": "biological",
"molecule_description": ""
}
],
"buffer": {
"name": "20 mM Tris-HCl buffer, 150 mM NaCl, 1mM CaCl2",
"concentration_unit": null,
"comment": null,
"additive": null,
"concentration": null,
"pka": null,
"ph": 8.0,
"deuteration": null
},
"purity_method": null,
"name": "Segmental deuterated Protein disulfide-isomerase A3 comprising three point mutations (D122N/I124L/R363N/Y364G; ER-60 h(a)-pd(bb’)-h(a’))",
"ext_coefficient": null,
"contrast": null,
"specific_vol": null,
"dry_vol": null,
"absorbption": null,
"deuteration": null,
"mixture": null
},
"contributor": [
{
"affiliation": [
{
"short_name": null,
"address": null,
"full_name": "Kyoto University",
"webpage": null
}
],
"contributor_name": "Aya",
"contributor_surname": "Okuda",
"orcid": ""
}
],
"concentration_method": null,
"concentration_unit": null,
"date": "2024-09-27",
"storage_temperature": 4.0,
"cell_temperature": 25.0,
"exposure_time": 300.0,
"number_of_frames": 72,
"wavelength": 1.54182,
"sample_detector_distance": 1.33,
"concentration_min": 4.0,
"concentration_max": 4.0,
"sample_volume": null,
"flow_rate": null,
"s_min": 0.061,
"s_max": 8.104,
"total_exposure_time": null,
"seccolumn": null
},
"fits": [],
"estimated_volume_method": null,
"pddf_software": null,
"pddf_software_version": null,
"i0_calibration_standard": null,
"description": "Two sample-to-detector distance (SDD) conditions, 1330 mm and 300 mm, were used to cover a q range (0.01-0.70 Å-1). Scattering profiles were recorded as 300 s frames, and 72 and 120 frames merged for low q (0.01-0.06 Å-1) and high q (0.06-0.70 Å-1) setups, respectively. We applied the AUC-SAS method to remove aggregation components from the profile.",
"experiment_description": null,
"tags": [],
"intensity_unit": "1/cm",
"experimental_mw": 33.673,
"experimental_mw_error": null,
"guinier_i0_mw": null,
"guinier_i0_mw_error": null,
"porod_mw": null,
"porod_mw_error": null,
"pddf_i0": null,
"pddf_i0_error": null,
"guinier_i0": 0.0313768,
"guinier_i0_error": null,
"pddf_rg": null,
"pddf_rg_error": null,
"guinier_rg": 3.264,
"guinier_rg_error": 0.077,
"pddf_dmax": null,
"pddf_dmax_error": null,
"porod_volume": null,
"porod_volume_error": null,
"estimated_volume": null,
"estimated_volume_error": null,
"guinier_point_first": 14,
"guinier_point_last": 86,
"pddf_point_first": null,
"pddf_point_last": null,
"i0_calibration_standard_data": null,

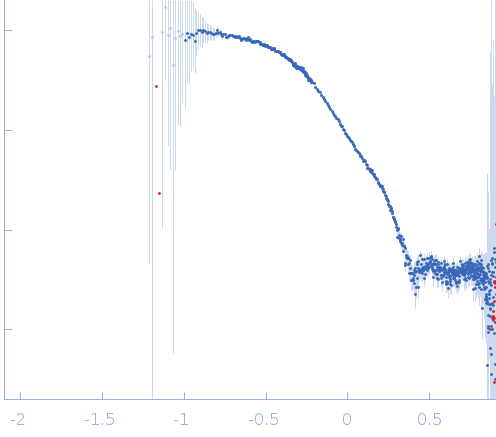

"intensities_log_log_plot": "SASDZS8_datloglog_img.png",
"symmetry": null,
"last_modified": "2026-08-05T11:43:21.505535+02:00",
"bragg_peak": []
}查看完整 manifest.json 原文
{
"code": "SASDZS8",
"status": "success",
"started_at": "2026-08-11T16:38:21.156799+00:00",
"finished_at": "2026-08-11T16:38:26.857621+00:00",
"source_last_modified": "2026-08-05T11:43:21.505535+02:00",
"files": [
{
"status": "downloaded",
"url": "https://www.sasbdb.org/rest-api/entry/summary/SASDZS8/",
"path": "/data/saxsdb/sasbdb/entries/s8/sasdzs8/source/summary.json",
"size": 6554,
"sha256": "c15d32dea3ace653090e2566099066e25127f634ca39e0a200a751dd07db901c"
},
{
"status": "downloaded",
"url": "https://www.sasbdb.org/media/intensities_files/SASDZS8.dat",
"path": "/data/saxsdb/sasbdb/entries/s8/sasdzs8/source/SASDZS8.dat",
"size": 40668,
"sha256": "86e81ee8bb786d18eef3cc98d296257454acf4068af0f9813694097a9e178713",
"role": "curve"
},
{
"role": "pddf",
"status": "not_listed",
"path": "/data/saxsdb/sasbdb/entries/s8/sasdzs8/source/SASDZS8.out"
},
{
"status": "not_available",
"url": "https://www.sasbdb.org/media/sascif/sascif_files/SASDZS8.sascif",
"path": "/data/saxsdb/sasbdb/entries/s8/sasdzs8/source/SASDZS8.sascif",
"role": "sascif"
},
{
"status": "downloaded",
"url": "https://www.sasbdb.org/media/zip_directories/SASDZS8.zip",
"path": "/data/saxsdb/sasbdb/entries/s8/sasdzs8/source/SASDZS8.zip",
"size": 17740,
"sha256": "87e9cdacd97b0bba24f80ccf49307db8d4460b6db7abafad15fcab85bfb5d58a",
"role": "full_entry_zip",
"zip_member_count": 1,
"zip_validation": "central_directory_readable"
}
]
}
