下列内容直接来自 SASBDB 条目。字段没有值时显示“—”；Not declared的单位不会由 SAXSdb 猜测。
打开 SASBDB 原始条目
缓冲液与样品属性
采集条件与仪器
SASBDB 原始图
实验 I(q)

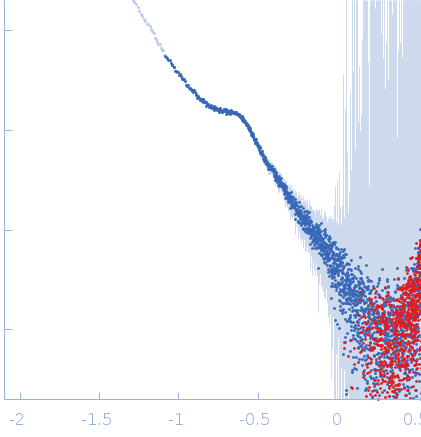

实验 I(q) log-log
Guinier 图
Kratky 图
P(r) 图可Download文件
curve：来源记录
{
"path": "/data/saxsdb/sasbdb/entries/w4/sasdzw4/source/SASDZW4.dat",
"role": "curve",
"sha256": "6b63c9f6ceb0300f5a85180973fb661f9217822f7f7b3be80d0a302bf066901f",
"size": 126327,
"status": "downloaded",
"url": "https://www.sasbdb.org/media/intensities_files/SASDZW4.dat"
}full_entry_zip：来源记录与 ZIP 内部目录（2 项）
{
"path": "/data/saxsdb/sasbdb/entries/w4/sasdzw4/source/SASDZW4.zip",
"role": "full_entry_zip",
"sha256": "a7876b3be02e351d1e2473a9ac58e08924f816c85b7bd3c514541f3489a6ea5e",
"size": 41409,
"status": "downloaded",
"url": "https://www.sasbdb.org/media/zip_directories/SASDZW4.zip",
"zip_member_count": 2,
"zip_members": [
{
"crc32": "da431fb1",
"name": "SASDZW4/experimental_data/SASDZW4.dat",
"size": 126327
},
{
"crc32": "2bb304b0",
"name": "SASDZW4/pddf/SASDZW4.dat",
"size": 7753
}
],
"zip_validation": "central_directory_readable"
}pddf：来源记录
{
"path": "/data/saxsdb/sasbdb/entries/w4/sasdzw4/source/SASDZW4.out",
"role": "pddf",
"sha256": "a3f26cfb735b8d7e3f99e729e0a8e8ab859c1f3d0d31fd991f499bc865b85d66",
"size": 7753,
"status": "downloaded",
"url": "https://www.sasbdb.org/media/p_of_R_files/SASDZW4.dat"
}sascif：来源记录
{
"path": "/data/saxsdb/sasbdb/entries/w4/sasdzw4/source/SASDZW4.sascif",
"role": "sascif",
"status": "not_available",
"url": "https://www.sasbdb.org/media/sascif/sascif_files/SASDZW4.sascif"
}summary：来源记录
{
"path": "/data/saxsdb/sasbdb/entries/w4/sasdzw4/source/summary.json",
"sha256": "002487d28391660109ff998053334a4ab61234b78b1b29e38e156a059d1a11b1",
"size": 7274,
"status": "downloaded",
"url": "https://www.sasbdb.org/rest-api/entry/summary/SASDZW4/"
}全部来源字段（无筛选）
这里自动展开来源记录中的每一个字段，包括空值、列表成员和页面上方已展示过的字段。
summary.json：134 个字段值
manifest.json：34 个字段值
查看完整 summary.json 原文
{
"code": "SASDZW4",
"status": "Published",
"type_of_curve": "Single concentration",
"angular_unit": "1/A",
"project": {
"title": "Comprehensive biophysical and structural profiling of alpha-actinin-2 variants reveals mechanistic diversity in hypertrophic cardiomyopathy.",
"publication": {
"title": "Comprehensive biophysical and structural profiling of alpha-actinin-2 variants reveals mechanistic diversity in hypertrophic cardiomyopathy.",
"author_list": "Noureddine M, Mikolajek H, Cowieson N, Pinotsis N, Robinson P, Slater A, Redwood C, Loughna S, Denning C, Mohammed F, Gehmlich K",
"journal": "Nat Commun",
"doi": "10.1038/s41467-026-75392-z",
"pmid": "42481460",
"published_date": "2026 Jul 21"
},
"status": "released",
"submitted_date": "2026-03-31",
"released_date": "2026-05-14"
},
"pddf_data": "https://www.sasbdb.org/media/p_of_R_files/SASDZW4.dat",
"intensities_data": "https://www.sasbdb.org/media/intensities_files/SASDZW4.dat",
"intensities_log_plot": "https://www.sasbdb.org/media/intensities_files/scattering_plots/SASDZW4_dat_img.png",
"intensities_kratky_plot": "https://www.sasbdb.org/media/intensities_files/scattering_plots/SASDZW4_kratky_img.png",
"pddf_plot": "https://www.sasbdb.org/media/p_of_R_files/pofr_images/SASDZW4_pofr_img.png",
"intensities_guinier_plot": "https://www.sasbdb.org/media/intensities_files/scattering_plots/SASDZW4_guinier_img.png",
"sascif_data": "https://www.sasbdb.org/media/sascif/sascif_files/SASDZW4.sascif",
"experiment": {
"instrument": {
"detector": {
"type": null,
"name": "Eiger 4M",
"resolution": 75.0
},
"name": "Diamond Light Source",
"city": "Didcot",
"country": "UK",
"beamline_name": "B21",
"beam_geometry": null,
"type_of_source": "X-ray synchrotron",
"point_source": null,
"line_collimation": null,
"sample_path_length": null,
"line_collimation_slitlength": null,
"line_collimation_integrationwidth": null,
"xray_energy": null,
"beam_profile_ah": null,
"beam_profile_al": null
},
"sample": {
"molecule": [
{
"long_name": "Alpha-actinin-2",
"short_name": "ACTN2",
"sequence": ">ACTN2 \r\nMNQIEPGVQYNYVYDEDEYMIQEEEWDRDLLLDPAWEKQQRKTFTAWCNSHLRKAGTQIENIEEDFRNGLKLMLLLEVISGERLPKPDRGKMRFHKIANVNKALDYIASKGVKLVSIGAEEIVDGNVKMTLGMIWTIILRFAIQDISVEETSAKEGLLLWCQRKTAPYRNVNIQNFHTSWKDGLGLCALIHRHRPDLIDYSKLNKDDPIGNINLAMEIAEKHLDIPKMLDAEDIVNTPKPDERAIMTYVSCFYHAFAGAEQAETAANRICKVLAVNQENERLMEEYERLASELLEWIRRTIPWLENRTPEKTMQAMQKKLEDFRDYRRKHKPPKVQEKCQLEINFNTLQTKLRISNRPAFMPSEGKMVSDIAGAWQRLEQAEKGYEEWLLNEIRRLERLEHLAEKFRQKASTHETWAYGKEQILLQKDYESASLTEVRALLRKHEAFESDLAAHQDRVEQIAAIAQELNELDYHDAVNVNDRCQKICDQWDRLGTLTQKRREALERMEKLLETIDQLHLEFAKRAAPFNNWMEGAMEDLQDMFIVHSIEEIQSLITAHEQFKATLPEADGERQSIMAIQNEVEKVIQSYNIRISSSNPYSTVTMDELRTKWDKVKQLVPIRDQSLQEELARQHANERLRRQFAAQANAIGPWIQNKMEEIARSSIQITGALEDQMNQLKQYEHNIINYKNNIDKLEGDHQLIQEALVFDNKHTNYTMEHIRVGWELLLTTIARTINEVETQILTRDAKGITQEQMNEFRASFNHFDRRKNGLMDHEDFRACLISMGYDLGEAEFARIMTLVDPNGQGTVTFQSFIDFMTRETADTDTAEQVIASFRILASDKPYILAEELRRELPPDQAQYCIKRMPAYSGPGSVPGALDYAAFSSALYGESDL",
"organism": "Homo sapiens",
"uniprot_code": "P35609",
"uniprot_range_first": null,
"uniprot_range_last": null,
"oligomerization": "dimer",
"molecular_type": "protein",
"uniprot_sequence": "MNQIEPGVQYNYVYDEDEYMIQEEEWDRDLLLDPAWEKQQRKTFTAWCNSHLRKAGTQIE\nNIEEDFRNGLKLMLLLEVISGERLPKPDRGKMRFHKIANVNKALDYIASKGVKLVSIGAE\nEIVDGNVKMTLGMIWTIILRFAIQDISVEETSAKEGLLLWCQRKTAPYRNVNIQNFHTSW\nKDGLGLCALIHRHRPDLIDYSKLNKDDPIGNINLAMEIAEKHLDIPKMLDAEDIVNTPKP\nDERAIMTYVSCFYHAFAGAEQAETAANRICKVLAVNQENERLMEEYERLASELLEWIRRT\nIPWLENRTPEKTMQAMQKKLEDFRDYRRKHKPPKVQEKCQLEINFNTLQTKLRISNRPAF\nMPSEGKMVSDIAGAWQRLEQAEKGYEEWLLNEIRRLERLEHLAEKFRQKASTHETWAYGK\nEQILLQKDYESASLTEVRALLRKHEAFESDLAAHQDRVEQIAAIAQELNELDYHDAVNVN\nDRCQKICDQWDRLGTLTQKRREALERMEKLLETIDQLHLEFAKRAAPFNNWMEGAMEDLQ\nDMFIVHSIEEIQSLITAHEQFKATLPEADGERQSIMAIQNEVEKVIQSYNIRISSSNPYS\nTVTMDELRTKWDKVKQLVPIRDQSLQEELARQHANERLRRQFAAQANAIGPWIQNKMEEI\nARSSIQITGALEDQMNQLKQYEHNIINYKNNIDKLEGDHQLIQEALVFDNKHTNYTMEHI\nRVGWELLLTTIARTINEVETQILTRDAKGITQEQMNEFRASFNHFDRRKNGLMDHEDFRA\nCLISMGYDLGEAEFARIMTLVDPNGQGTVTFQSFIDFMTRETADTDTAEQVIASFRILAS\nDKPYILAEELRRELPPDQAQYCIKRMPAYSGPGSVPGALDYAAFSSALYGESDL",
"mw": 103.853,
"total_mw": 207.706,
"number_molecules": 2,
"complex_state": false,
"deuteration": null,
"molecule_source": "biological",
"molecule_description": ""
}
],
"buffer": {
"name": "20 mM HEPES, 150 mM NaCl",
"concentration_unit": null,
"comment": null,
"additive": null,
"concentration": null,
"pka": null,
"ph": 8.0,
"deuteration": null
},
"purity_method": null,
"name": "ACTN2-T247M at 53 degrees (°C) using batch-mode SAXS",
"ext_coefficient": null,
"contrast": null,
"specific_vol": null,
"dry_vol": null,
"absorbption": null,
"deuteration": null,
"mixture": null
},
"contributor": [
{
"affiliation": [
{
"short_name": null,
"address": "Birmingham, UK",
"full_name": "University of Birmingham",
"webpage": "https://www.birmingham.ac.uk"
}
],
"contributor_name": "Maya",
"contributor_surname": "Noureddine",
"orcid": "https://orcid.org/0009-0001-1890-5962"
}
],
"concentration_method": null,
"concentration_unit": null,
"date": "2024-05-13",
"storage_temperature": 53.0,
"cell_temperature": 53.0,
"exposure_time": 1.0,
"number_of_frames": 25,
"wavelength": 0.94,
"sample_detector_distance": 3.7,
"concentration_min": null,
"concentration_max": 1.0,
"sample_volume": null,
"flow_rate": null,
"s_min": 0.045,
"s_max": 3.4,
"total_exposure_time": null,
"seccolumn": null
},
"fits": [],
"estimated_volume_method": null,
"pddf_software": "ScÅtter",
"pddf_software_version": null,
"i0_calibration_standard": null,
"description": "ACTN2 with T247M missense variant, dimer peak using batch-mode SAXS at 53 degrees (°C)",
"experiment_description": null,
"tags": [],
"intensity_unit": "arbitrary",
"experimental_mw": 1443.0,
"experimental_mw_error": null,
"guinier_i0_mw": null,
"guinier_i0_mw_error": null,
"porod_mw": null,
"porod_mw_error": null,
"pddf_i0": 8.202342,
"pddf_i0_error": null,
"guinier_i0": 0.398166,
"guinier_i0_error": null,
"pddf_rg": 22.69,
"pddf_rg_error": null,
"guinier_rg": 16.967,
"guinier_rg_error": 2.22,
"pddf_dmax": 67.0,
"pddf_dmax_error": null,
"porod_volume": null,
"porod_volume_error": null,
"estimated_volume": null,
"estimated_volume_error": null,
"guinier_point_first": 30,
"guinier_point_last": 63,
"pddf_point_first": null,
"pddf_point_last": null,
"i0_calibration_standard_data": null,
"intensities_log_log_plot": "SASDZW4_datloglog_img.png",
"symmetry": null,
"last_modified": "2026-08-03T08:23:28.645637+02:00",
"bragg_peak": []
