"code": "SASDZW5",
"status": "Published",
"type_of_curve": "SEC-SAS",
"angular_unit": "1/A",
"project": {
"title": "Structure of a Stand-Alone Homodimeric NRPS Condensation Domain Reveals Occlusion of the Canonical Carrier-Protein Interface",
"publication": {
"title": "Structure of a Stand-Alone Homodimeric NRPS Condensation Domain Reveals Occlusion of the Canonical Carrier-Protein Interface",
"author_list": "Singh J, Grant T, Gulick A",
"journal": null,
"doi": "10.64898/2026.04.24.720670",
"pmid": null,
"published_date": "2026 Apr 28"
},
"status": "released",
"submitted_date": "2026-04-14",
"released_date": "2026-05-13"
},
"pddf_data": "https://www.sasbdb.org/media/p_of_R_files/SASDZW5.dat",
"intensities_data": "https://www.sasbdb.org/media/intensities_files/SASDZW5.dat",
"intensities_log_plot": "https://www.sasbdb.org/media/intensities_files/scattering_plots/SASDZW5_dat_img.png",
"intensities_kratky_plot": "https://www.sasbdb.org/media/intensities_files/scattering_plots/SASDZW5_kratky_img.png",
"pddf_plot": "https://www.sasbdb.org/media/p_of_R_files/pofr_images/SASDZW5_pofr_img.png",
"intensities_guinier_plot": "https://www.sasbdb.org/media/intensities_files/scattering_plots/SASDZW5_guinier_img.png",
"sascif_data": "https://www.sasbdb.org/media/sascif/sascif_files/SASDZW5.sascif",
"experiment": {
"instrument": {
"detector": {
"type": "Dectris",
"name": "Pilatus 1M",
"resolution": 172.0
},
"name": "National Synchrotron Light Source II (NSLS-II)",
"city": "Upton, NY",
"country": "USA",
"beamline_name": "16-ID (LiX)",
"beam_geometry": null,
"type_of_source": "X-ray synchrotron",
"point_source": null,
"line_collimation": null,
"sample_path_length": null,
"line_collimation_slitlength": null,
"line_collimation_integrationwidth": null,
"xray_energy": null,
"beam_profile_ah": null,
"beam_profile_al": null
},
"sample": {
"molecule": [
{
"long_name": "Condensation Domain from Coprococcus Eutactus",
"short_name": "OaaC",
"sequence": ">WP_004853257.1\r\nMPRKYYPLTPSQKIHFKPIIEFGTQQVANISICMTLQAPLDFGLLKKCIQLEYERYECLRIRFTKVDQNGEVRQYVVSRDDRDIDYENLSWLSGDDAYHRMEEWSRIPFDGDNIPMNVIKMISLPGGYNGLYIKIDHRLMDSCGAIVMVNDIMELYCHYKFGTPYPEDMASFTDMVERDLKKSTDEKRVSKDRMYWQNVLEENGEPIYSDIQGQRILQESRRLHNDKSLRAADQEINDLSVATKNYHLDAEPTQNLLDFCMNNHISMTNLILMGIRTYLSKANGGQTDISIRNYVSRRSTHAEWVSGGSRAMAYPCRTIIDPDTEFLDAVFMIQDVQNHVYRHCNYDPELLSDQMKEMFHTPPHTTYESVGLTYQPLPIRLKNPHLENISVRSMWIPNGTSKQKIYLTVMHSANDLGLNFYFRYQTASLSEQDIELFYYYLMKIIFKGIAEPEMTVGEIIECI",
"organism": "Coprococcus eutactus ATCC 27759",
"uniprot_code": "A0A8D9NZF9",
"uniprot_range_first": 1,
"uniprot_range_last": 463,
"oligomerization": "dimer",
"molecular_type": "protein",
"uniprot_sequence": "",
"mw": 54.044,
"total_mw": 108.088,
"number_molecules": 2,
"complex_state": false,
"deuteration": null,
"molecule_source": "biological",
"molecule_description": "Stand alone fatty acid amide producing condensation domain from C. eutactus."
}
],
"buffer": {
"name": "10mM HEPES pH 7.5, 50mM NaCl, 0.2mM TCEP",
"concentration_unit": null,
"comment": "Gel filtration buffer",
"additive": null,
"concentration": null,
"pka": null,
"ph": 7.5,
"deuteration": null
},
"purity_method": null,
"name": "The FAA Condensation Domain, OaaC from Coprococcus Eutactus (Plipastatin synthase subunit A)",
"ext_coefficient": null,
"contrast": null,
"specific_vol": null,
"dry_vol": null,
"absorbption": null,
"deuteration": null,
"mixture": null
},
"contributor": [
{
"affiliation": [
{
"short_name": null,
"address": null,
"full_name": "University at Buffalo",
"webpage": null
}
],
"contributor_name": "Tom",
"contributor_surname": "Grant",
"orcid": "https://orcid.org/0000-0002-8583-3700"
},
{
"affiliation": [
{
"short_name": null,
"address": null,
"full_name": "University at Buffalo",
"webpage": null
}
],
"contributor_name": "Andrew",
"contributor_surname": "Gulick",
"orcid": "https://orcid.org/0000-0003-4238-7453"
},
{
"affiliation": [
{
"short_name": null,
"address": null,
"full_name": "University at Buffalo",
"webpage": null
}
],
"contributor_name": "Jitendra",
"contributor_surname": "Singh",
"orcid": "https://orcid.org/0000-0002-5257-1337"
}
],
"concentration_method": null,
"concentration_unit": null,
"date": "2022-12-16",
"storage_temperature": 4.0,
"cell_temperature": 11.0,
"exposure_time": 2.0,
"number_of_frames": 450,
"wavelength": 0.08188,
"sample_detector_distance": 3.571,
"concentration_min": null,
"concentration_max": 18.0,
"sample_volume": 28.0,
"flow_rate": 0.35,
"s_min": 0.05,
"s_max": 20.99,
"total_exposure_time": null,
"seccolumn": 2
},
"fits": [
{
"models": [
{
"model_plot": "https://www.sasbdb.org/media/pdb_file/images/SASDZW5_fit1_model1_img.png",
"software": "GROMACS",
"pdb_link": [],
"model_title": null,
"type_of_model": "atomic",
"software_version": "2021.7",
"model_data": "https://www.sasbdb.org/media/pdb_file/SASDZW5_fit1_model1.pdb",
"model_mw": 102.8,
"bead_radius": null,
"log": null,
"symmetry": null,
"comment": null,
"user": 1347
}
],
"fit_unit": "1/A",
"fit_plot": "https://www.sasbdb.org/media/fitting_files/scattering_plots/SASDZW5_fit1_fixed_fit_img.png",
"software": "DENSS",
"chi_square_value": 1.215,
"p_value": 0.0,
"fit_residual_plot": "SASDZW5_fit1_fitresiduals_img.png",
"fit_data": "https://www.sasbdb.org/media/fitting_files/SASDZW5_fit1.fit",
"fit_log": "https://www.sasbdb.org/media/fitting_files/log_files/OaaC-gromacs-model118-699-data-points.log",
"software_version": "1.8.3",
"description": ""
}
],
"estimated_volume_method": null,
"pddf_software": "Other",
"pddf_software_version": null,
"i0_calibration_standard": null,
"description": null,
"experiment_description": null,
"tags": [],
"intensity_unit": "arbitrary",
"experimental_mw": 113.0,
"experimental_mw_error": null,
"guinier_i0_mw": 113.0,
"guinier_i0_mw_error": 3.0,
"porod_mw": 111.0,
"porod_mw_error": null,
"pddf_i0": 36.94909,
"pddf_i0_error": 2e-10,
"guinier_i0": 37.2265,
"guinier_i0_error": null,
"pddf_rg": 3.17,
"pddf_rg_error": 0.009,
"guinier_rg": 3.212,
"guinier_rg_error": 0.053,
"pddf_dmax": 9.5,
"pddf_dmax_error": null,
"porod_volume": 184.0,
"porod_volume_error": null,
"estimated_volume": null,
"estimated_volume_error": null,
"guinier_point_first": 1,
"guinier_point_last": 12,
"pddf_point_first": null,
"pddf_point_last": null,
"i0_calibration_standard_data": null,

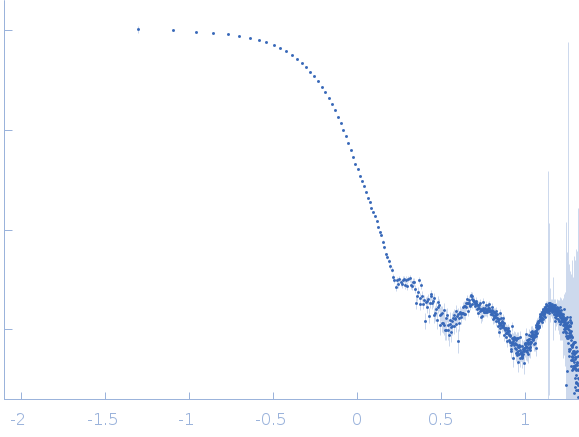

"intensities_log_log_plot": "SASDZW5_datloglog_img.png",
"symmetry": null,
"last_modified": "2026-05-13T21:19:19.027813+02:00",
"bragg_peak": []
