SPERM WHALE MYOGLOBIN F46V N-BUTYL ISOCYANIDE AT PH 9.0

Method: X-RAY DIFFRACTION D_max: 50.9 Å Quality: GOOD

SAXS Profile

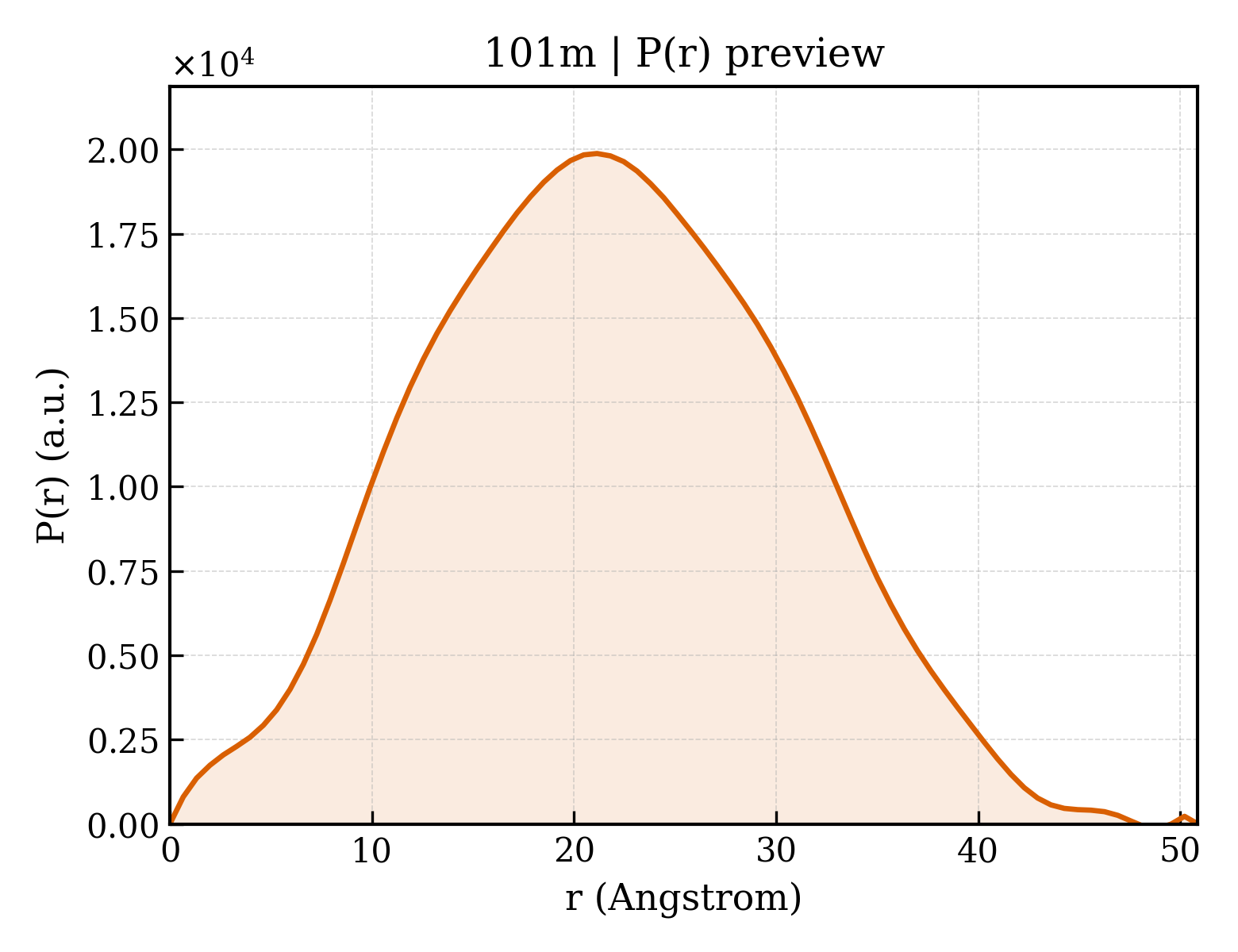

P(r) Distribution

▼

1. Structure Basics

entry_id	101m
deposition_date	1997-12-13
title	SPERM WHALE MYOGLOBIN F46V N-BUTYL ISOCYANIDE AT PH 9.0
keywords	LIGAND BINDING, OXYGEN STORAGE, OXYGEN BINDING, HEME, OXYGEN TRANSPORT; OXYGEN TRANSPORT
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	16.66 Å
rg_electron	15.23 Å
i0	5791230.00
molecular_weight	18081.0 kDa
excluded_volume	22923 Å³
envelope_volume	25284 Å³
shell_volume	14077 Å³
envelope_diameter	51.3 Å
shell_rg	20.99 Å
envelope_rg	15.43 Å
shape_rg	15.20 Å
total_rg	16.41 Å
total_atoms	1275
n_residues	154
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	50.9 Å
rg_real	16.53 Å
rg_real_error	0.30 Å
i0_real	5.7910e+06
i0_real_error	7.1930e+04
rg_reciprocal	16.55 Å
i0_reciprocal	5791000.0000
total_estimate	0.8245
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	21.1 Å
skewness	0.085
kurtosis	-0.468
angular_range	— – 0.4800 Å⁻¹
current_alpha	0.0000
highest_alpha	882700.0000
n_real_points	78
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.912; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	MYOGLOBIN
formula_weight	17317.1 kDa
mutation	INS(M0), F46V, D122N
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	1413

MVLSEGEWQLVLHVWAKVEADVAGHGQDILIRLFKSHPETLEKFDRVKHLKTEAEMKASEDLKKHGVTVLTALGAILKKKGHHEAELKPLAQSHATKHKIPIKYLEFISEAIIHVLHSRHPGNFGADAQGAMNKALELFRKDIAAKYKELGYQG

Source

organism	Physeter catodon
common_name	sperm whale
ncbi_taxonomy_id	9755
host_organism	Escherichia coli

Entity 2 non-polymer

description	SULFATE ION
formula_weight	96.1 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	PROTOPORPHYRIN IX CONTAINING FE
formula_weight	616.5 kDa
src_method	syn
entity_count	1

Entity 4 non-polymer

description	N-BUTYL ISOCYANIDE
formula_weight	83.1 kDa
src_method	syn
entity_count	1

Entity 5 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	138

▶

6. Citations (1)

▶

length_a	91.670 Å
length_b	91.670 Å
length_c	45.970 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	6

space_group	P 6
int_tables_number	168
crystal_system	—

resolution	2.070 Å
resolution_low	5.000 Å
r_factor	0.1570
r_work	0.1570
r_free	0.2020
