10my
Single particle reconstruction of PilU from Vibrio cholerae El Tor E7946, form 1
SAXS Profile

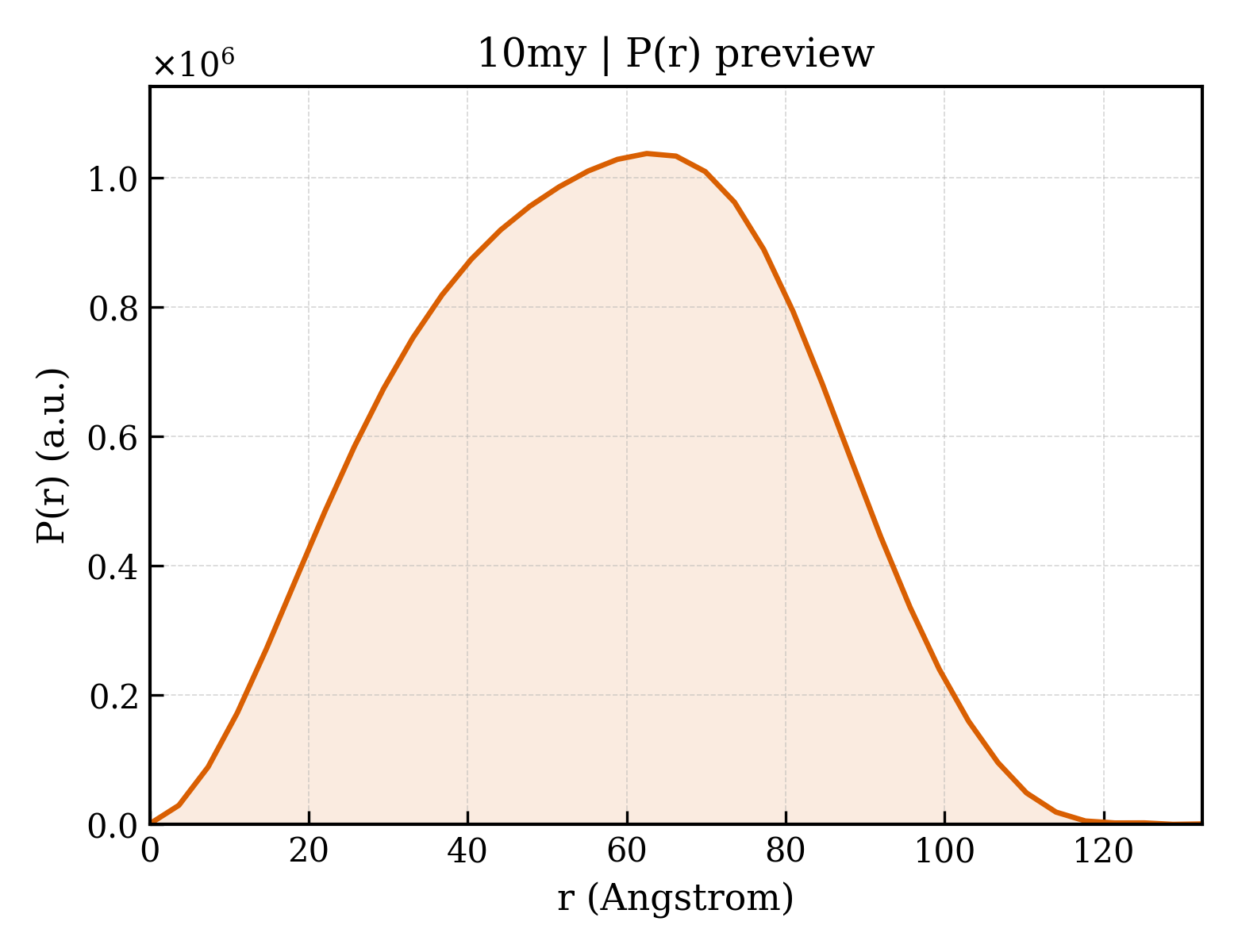

P(r) Distribution
1. Structure Basics
| entry_id | 10my |
| deposition_date | 2026-01-28 |
| title | Single particle reconstruction of PilU from Vibrio cholerae El Tor E7946, form 1 |
| keywords | Retraction ATPase, Structural Genomics, Center for Structural Biology of Infectious Diseases, CSBID, MOTOR PROTEIN; MOTOR PROTEIN |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 43.79 Å |
| rg_electron | 43.01 Å |
| i0 | 847319000.00 |
| molecular_weight | 235650.0 kDa |
| excluded_volume | 293760 ų |
| envelope_volume | 431150 ų |
| shell_volume | 79637 ų |
| envelope_diameter | 127.2 Å |
| shell_rg | 52.26 Å |
| envelope_rg | 41.43 Å |
| shape_rg | 43.01 Å |
| total_rg | 43.42 Å |
| total_atoms | 16536 |
| n_residues | 2103 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 132.4 Å |
| rg_real | 43.49 Å |
| rg_real_error | 0.81 Å |
| i0_real | 8.4730e+08 |
| i0_real_error | 1.4270e+07 |
| rg_reciprocal | 43.78 Å |
| i0_reciprocal | 847600000.0000 |
| total_estimate | 0.8321 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 62.5 Å |
| skewness | -0.014 |
| kurtosis | -0.698 |
| angular_range | — – 0.1800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 197800000.0000 |
| n_real_points | 37 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.945; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.977; Smooth: 0.000 |
