;Crystal structure of Glutathione Transferase from Shrimp Litopenaeus vannamei in complex with silver ions and a molecules of Glutathione binding in G-site and H-site ;

entry_id	10pw
deposition_date	2026-01-31
last_revision	2026-02-18
title	;Crystal structure of Glutathione Transferase from Shrimp Litopenaeus vannamei in complex with silver ions and a molecules of Glutathione binding in G-site and H-site ;
keywords	;Glutathione transferase, silver ion inhibition, Marine crustaceans, Litopenaeus vannamei, GSH interaction, enzymatic inhibition, OXIDOREDUCTASE ;; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

rg_guinier	41.63 Å
rg_electron	41.12 Å
i0	584881000.00
molecular_weight	207370.0 kDa
excluded_volume	262460 ų
envelope_volume	334660 ų
shell_volume	66116 ų
envelope_diameter	139.9 Å
shell_rg	48.01 Å
envelope_rg	40.52 Å
shape_rg	41.15 Å
total_rg	41.38 Å
total_atoms	14610
n_residues	1746
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	134.3 Å
rg_real	41.52 Å
rg_real_error	1.08 Å
i0_real	5.8490e+08
i0_real_error	1.0980e+07
rg_reciprocal	41.63 Å
i0_reciprocal	585000000.0000
total_estimate	0.8932
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	56.5 Å
skewness	0.178
kurtosis	-0.527
angular_range	— – 0.1900 Å−1
current_alpha	0.0000
highest_alpha	224900000.0000
n_real_points	39
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.914; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.869

Unit Cell

length_a	57.390 Å
length_b	93.020 Å
length_c	169.110 Å
angle_alpha	90.00 °
angle_beta	90.75 °
angle_gamma	90.00 °
z_pdb	16

Symmetry

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

Refinement

resolution	2.200 Å
resolution_low	56.370 Å
r_factor	0.1950
r_work	0.1920
r_free	0.2430

Diffraction

temperature

100.0 K

Files (7)

• pr_distribution /app/data/pr_computation/0p/10pw/pr_distribution.json
• pr_output /app/data/pr_computation/0p/10pw/10pw.pr.out

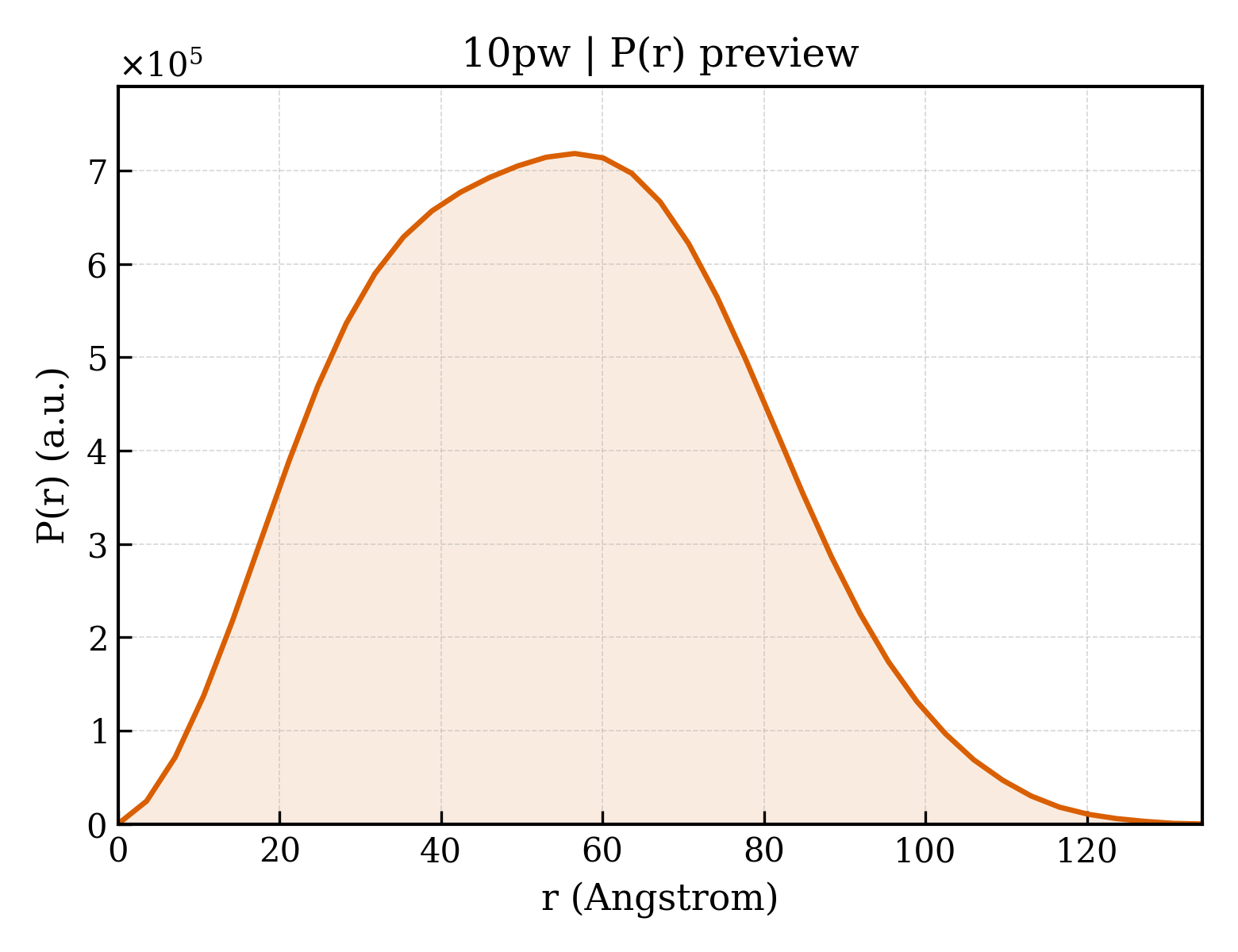

• pr_plot /app/data/visualization/pr_computation/0p/10pw/10pw_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/0p/10pw/10pw.dat
• saxs_fit /app/data/saxs_computation/0p/10pw/10pw.fit
• saxs_log /app/data/saxs_computation/0p/10pw/10pw.log

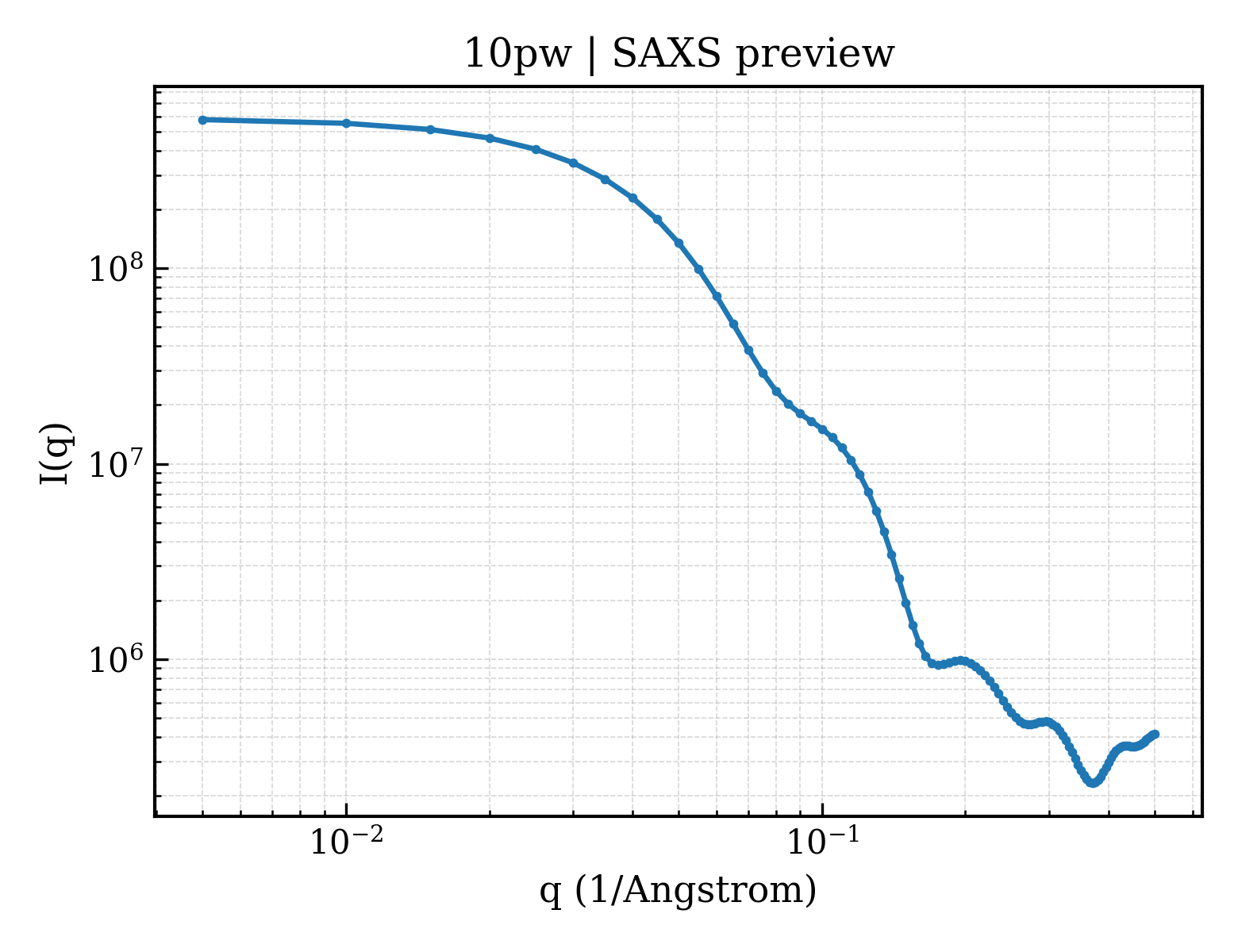

• saxs_plot /app/data/visualization/saxs_computation/0p/10pw/10pw_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/0p/10pw/10pw.fit
pddf	/app/data/pr_computation/0p/10pw/10pw.pr.out
profile	/app/data/saxs_computation/0p/10pw/10pw.dat
