10sw
Crystal structure of Guanylate Kinase from Burkholderia thailandensis in complex with GDP
SAXS Profile

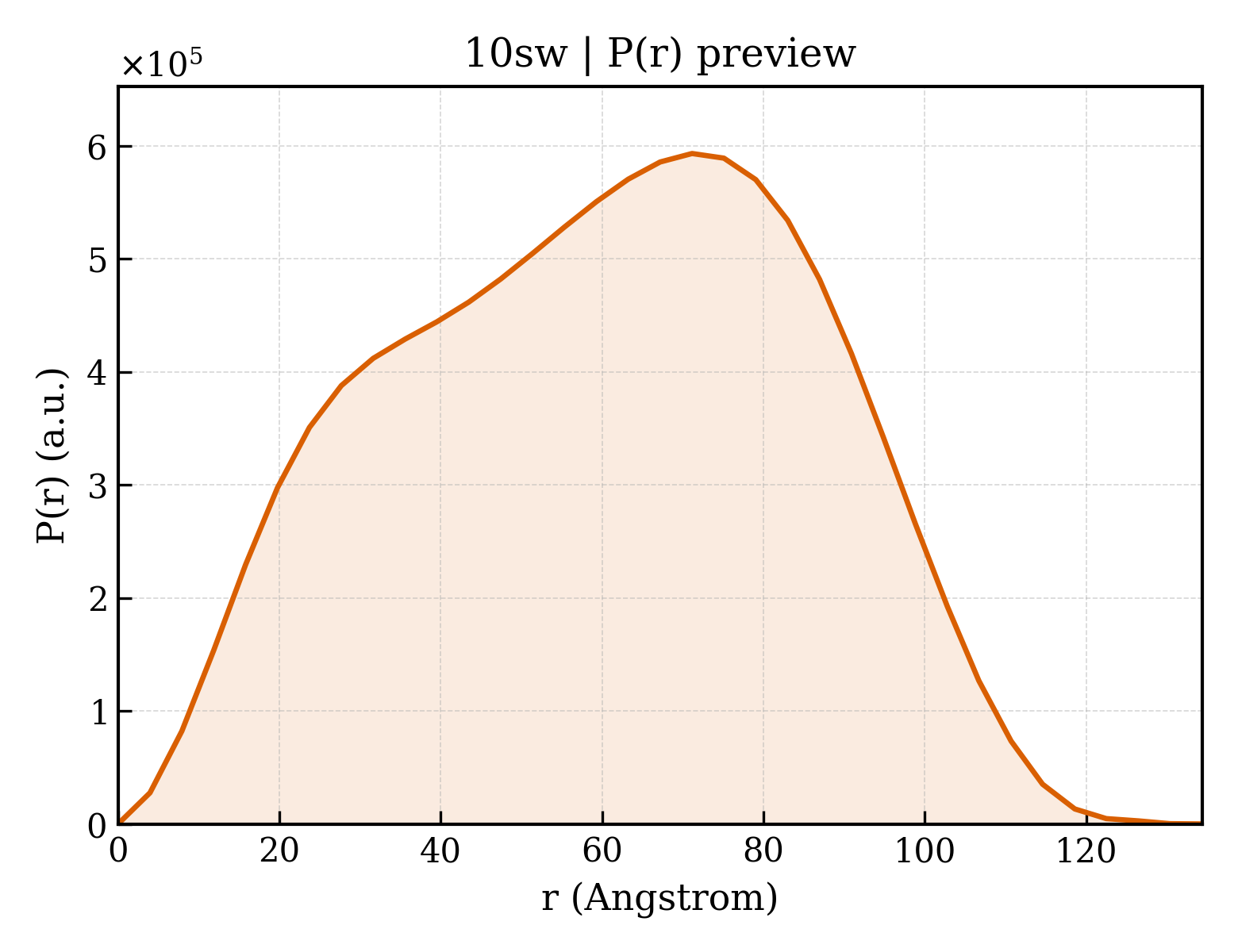

P(r) Distribution
1. Structure Basics
| entry_id | 10sw |
| deposition_date | 2026-02-06 |
| last_revision | 2026-02-18 |
| title | Crystal structure of Guanylate Kinase from Burkholderia thailandensis in complex with GDP |
| keywords | SSGCID, STRUCTURAL GENOMICS, SEATTLE STRUCTURAL GENOMICS CENTER FOR INFECTIOUS DISEASE, TRANSFERASE, Guanylate Kinase; TRANSFERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 46.36 Å |
| rg_electron | 45.48 Å |
| i0 | 533235000.00 |
| molecular_weight | 185260.0 kDa |
| excluded_volume | 229410 ų |
| envelope_volume | 352870 ų |
| shell_volume | 63817 ų |
| envelope_diameter | 139.8 Å |
| shell_rg | 52.82 Å |
| envelope_rg | 42.73 Å |
| shape_rg | 45.46 Å |
| total_rg | 45.87 Å |
| total_atoms | 13068 |
| n_residues | 1639 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 134.4 Å |
| rg_real | 46.07 Å |
| rg_real_error | 0.88 Å |
| i0_real | 5.3320e+08 |
| i0_real_error | 9.2860e+06 |
| rg_reciprocal | 46.36 Å |
| i0_reciprocal | 533400000.0000 |
| total_estimate | 0.8802 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 71.2 Å |
| skewness | -0.085 |
| kurtosis | -0.835 |
| angular_range | — – 0.1700 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 28110000.0000 |
| n_real_points | 35 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.963; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.554 |
