10xa
Nocardia asteroides DnaA DI in the P31(1)21 space group
SAXS Profile

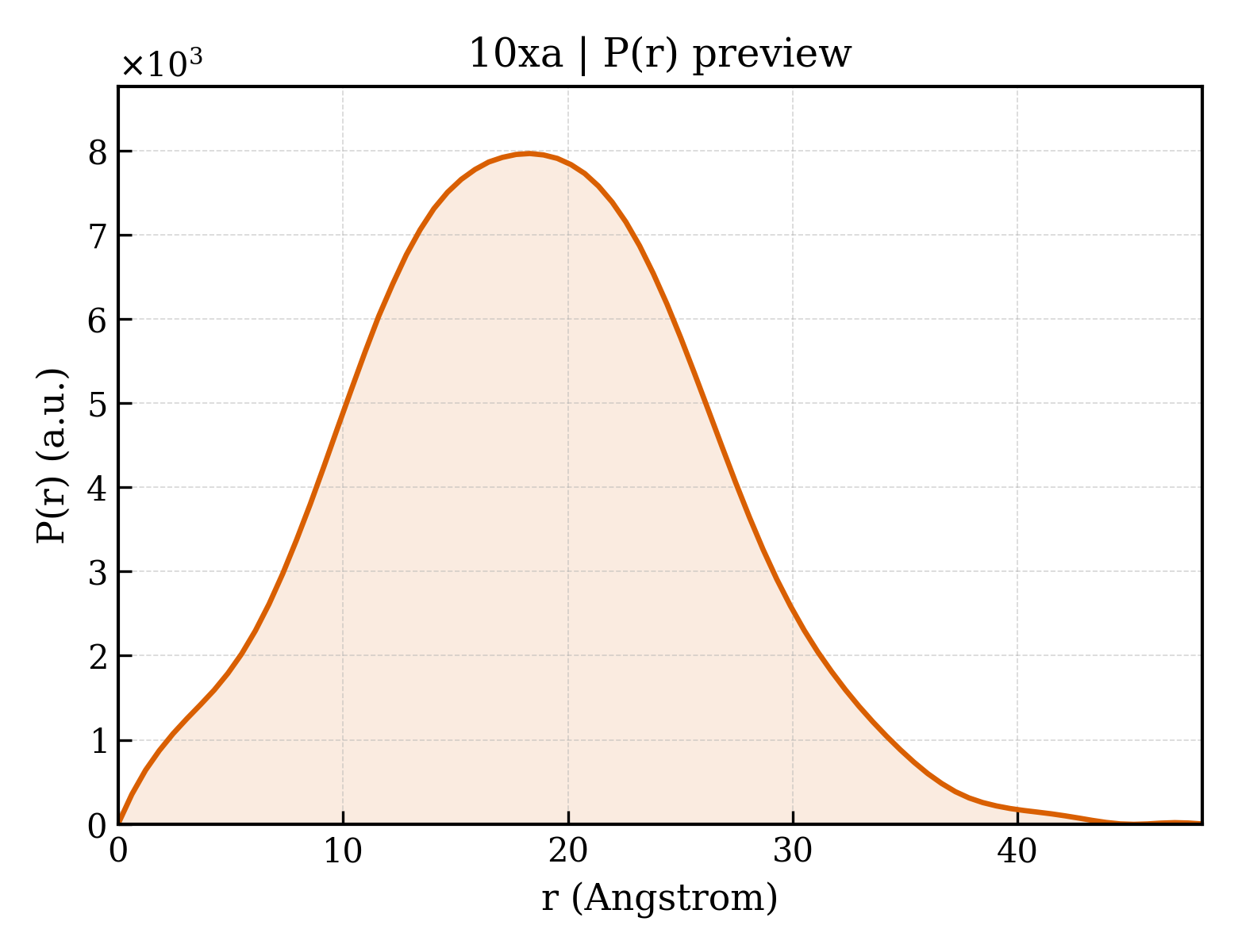

P(r) Distribution
1. Structure Basics
| entry_id | 10xa |
| deposition_date | 2026-02-11 |
| last_revision | 2026-06-03 |
| title | Nocardia asteroides DnaA DI in the P31(1)21 space group |
| keywords | Initiator, DNA BINDING PROTEIN; DNA BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.16 Å |
| rg_electron | 12.51 Å |
| i0 | 1996460.00 |
| molecular_weight | 9746.0 kDa |
| excluded_volume | 12319 ų |
| envelope_volume | 13980 ų |
| shell_volume | 9751 ų |
| envelope_diameter | 45.1 Å |
| shell_rg | 17.86 Å |
| envelope_rg | 12.97 Å |
| shape_rg | 12.48 Å |
| total_rg | 13.91 Å |
| total_atoms | 1399 |
| n_residues | 92 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 48.2 Å |
| rg_real | 14.08 Å |
| rg_real_error | 0.40 Å |
| i0_real | 1.9960e+06 |
| i0_real_error | 2.3190e+04 |
| rg_reciprocal | 14.09 Å |
| i0_reciprocal | 1996000.0000 |
| total_estimate | 0.8617 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 18.3 Å |
| skewness | 0.153 |
| kurtosis | -0.244 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 270500.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.735; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.994 |
