10xg
Corynebacterium bovis DnaA DI S89C disulfide-linked dimer

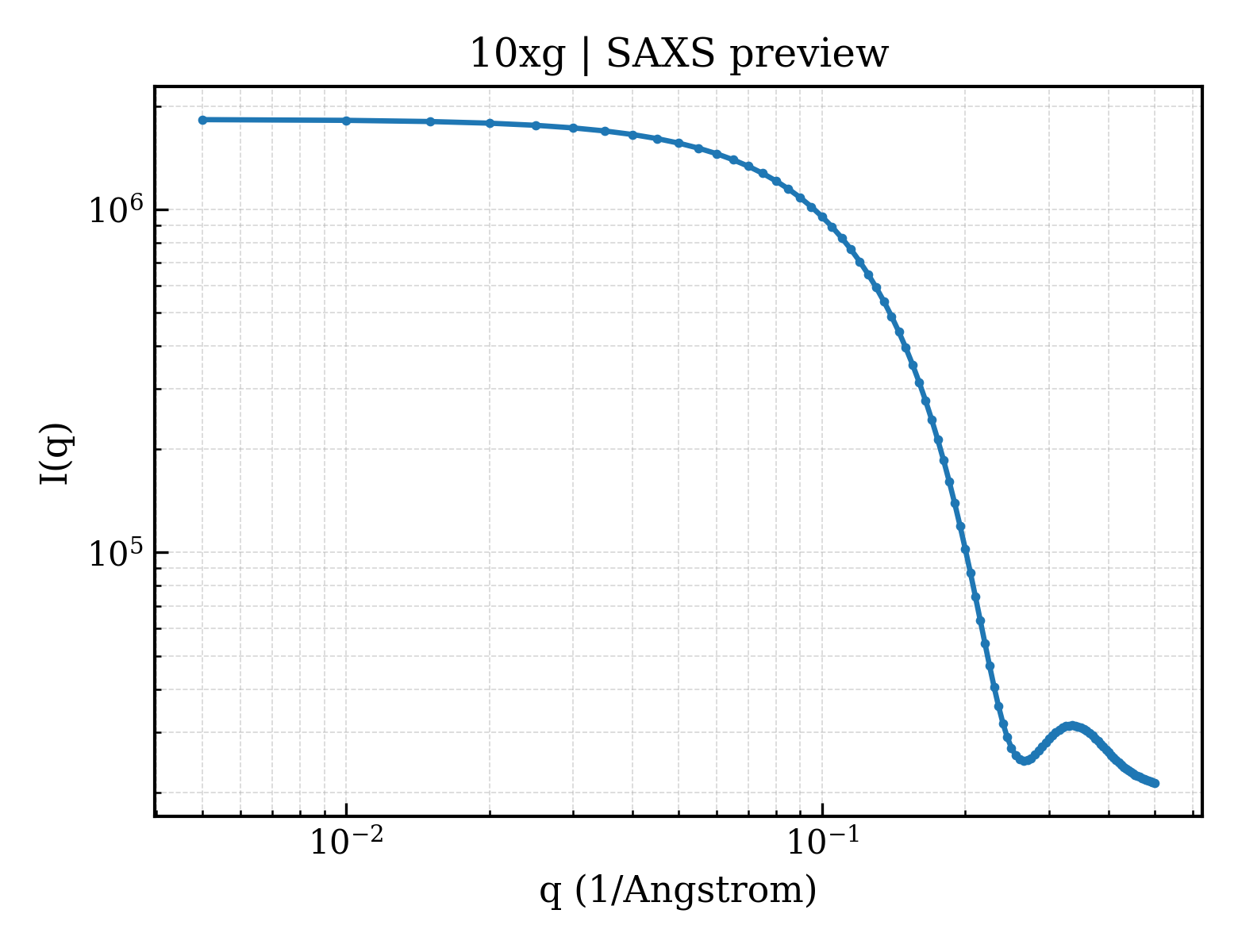

SAXS Profile

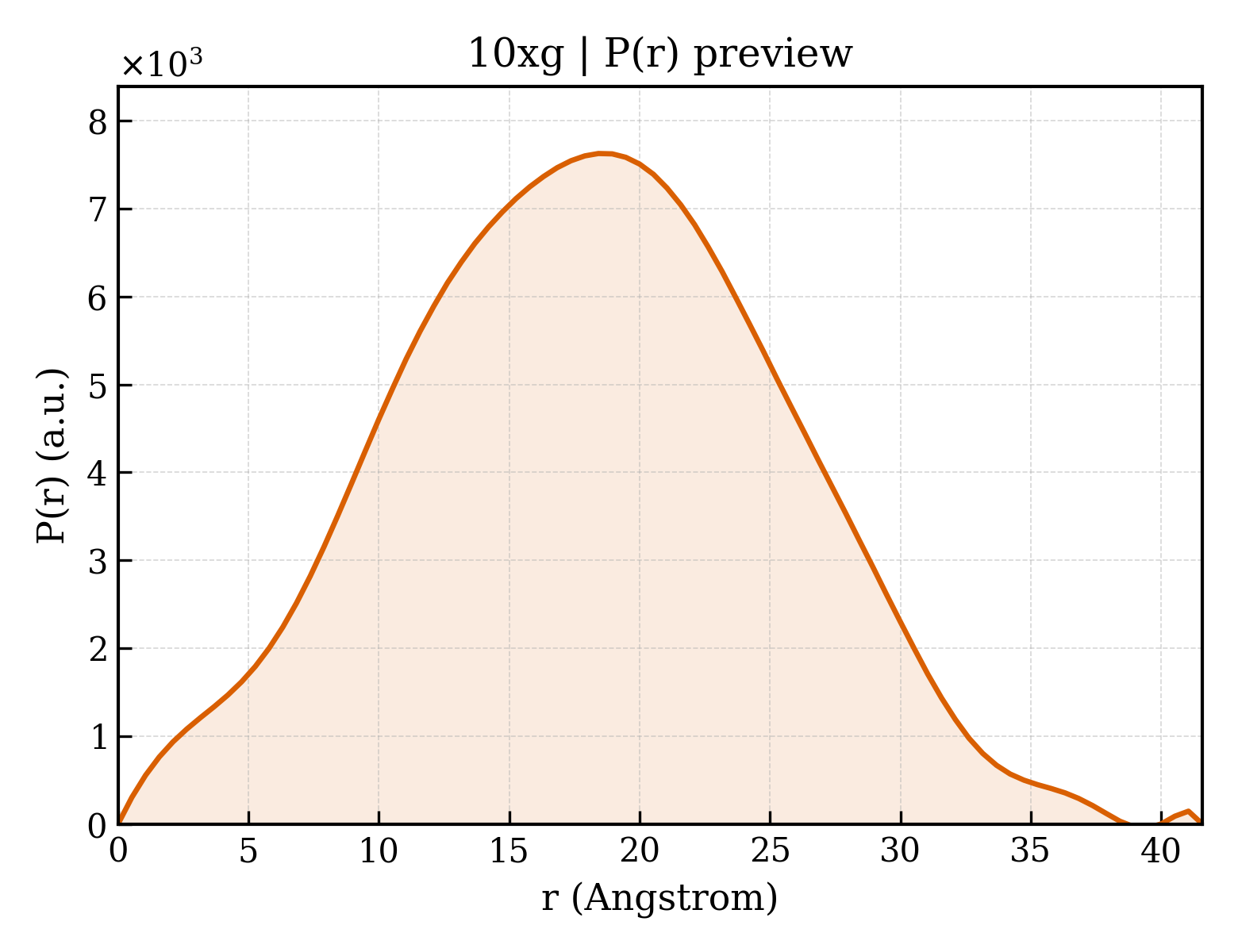

P(r) Distribution
1. Structure Basics
| entry_id | 10xg |
| deposition_date | 2026-02-11 |
| last_revision | 2026-06-03 |
| title | Corynebacterium bovis DnaA DI S89C disulfide-linked dimer |
| keywords | Initiator, DNA BINDING PROTEIN; DNA BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.86 Å |
| rg_electron | 12.22 Å |
| i0 | 1828350.00 |
| molecular_weight | 9460.0 kDa |
| excluded_volume | 12014 ų |
| envelope_volume | 13296 ų |
| shell_volume | 9523 ų |
| envelope_diameter | 40.4 Å |
| shell_rg | 17.60 Å |
| envelope_rg | 12.47 Å |
| shape_rg | 12.19 Å |
| total_rg | 13.66 Å |
| total_atoms | 666 |
| n_residues | 90 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 41.6 Å |
| rg_real | 13.76 Å |
| rg_real_error | 0.24 Å |
| i0_real | 1.8280e+06 |
| i0_real_error | 1.7910e+04 |
| rg_reciprocal | 13.76 Å |
| i0_reciprocal | 1828000.0000 |
| total_estimate | 0.8262 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 18.4 Å |
| skewness | 0.032 |
| kurtosis | -0.397 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 210100.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.919; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.000 |
