10xp
Streptomyces lividans DnaA DI protein in the I222 space group.
SAXS Profile

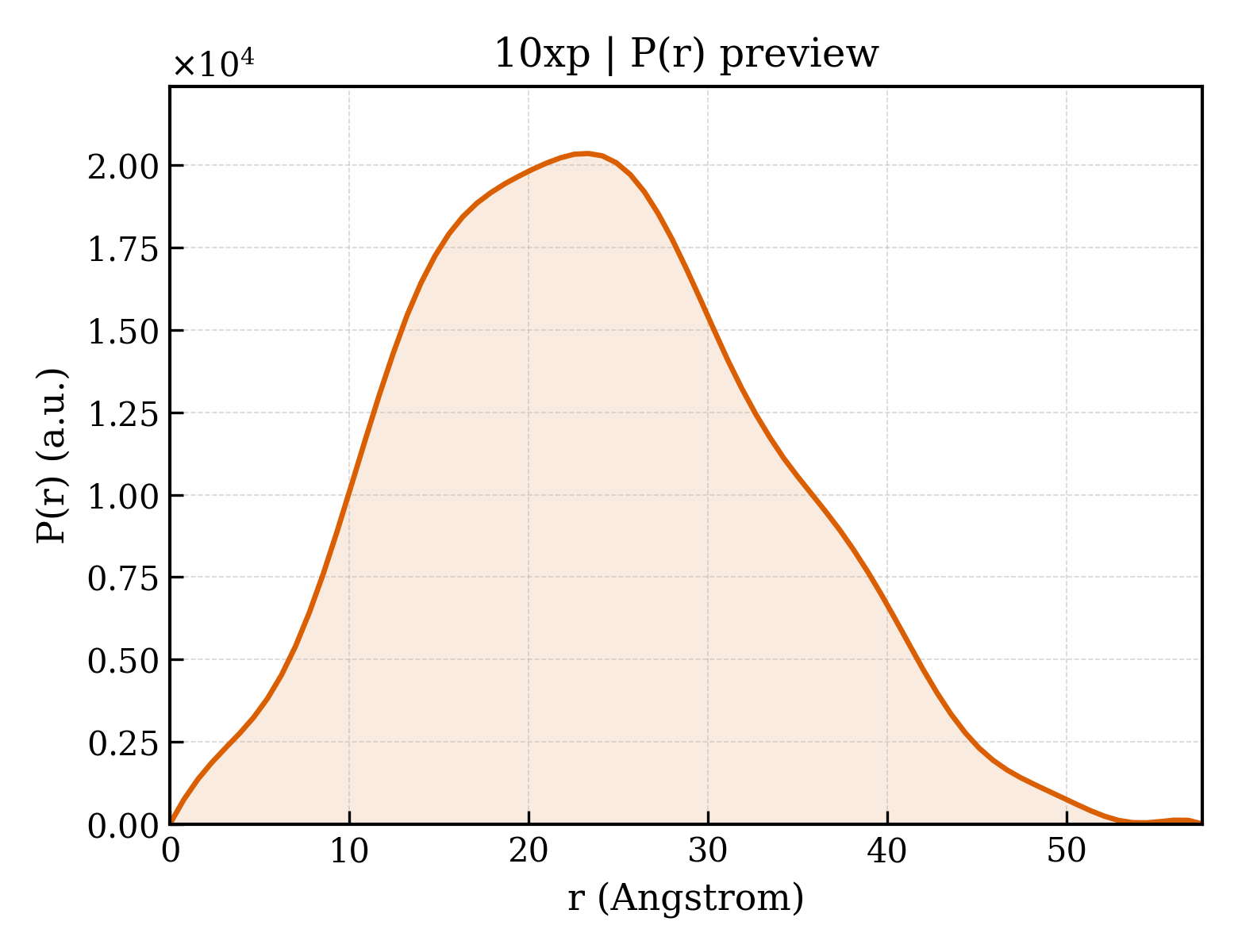

P(r) Distribution
1. Structure Basics
| entry_id | 10xp |
| deposition_date | 2026-02-11 |
| last_revision | 2026-06-03 |
| title | Streptomyces lividans DnaA DI protein in the I222 space group. |
| keywords | Initiator, DNA BINDING PROTEIN; DNA BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.11 Å |
| rg_electron | 17.10 Å |
| i0 | 6724880.00 |
| molecular_weight | 18729.0 kDa |
| excluded_volume | 23469 ų |
| envelope_volume | 28461 ų |
| shell_volume | 14498 ų |
| envelope_diameter | 57.5 Å |
| shell_rg | 22.22 Å |
| envelope_rg | 17.13 Å |
| shape_rg | 17.10 Å |
| total_rg | 18.02 Å |
| total_atoms | 1315 |
| n_residues | 173 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 57.6 Å |
| rg_real | 18.04 Å |
| rg_real_error | 0.31 Å |
| i0_real | 6.7250e+06 |
| i0_real_error | 7.8330e+04 |
| rg_reciprocal | 18.05 Å |
| i0_reciprocal | 6725000.0000 |
| total_estimate | 0.8933 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.3 Å |
| skewness | 0.236 |
| kurtosis | -0.412 |
| angular_range | — – 0.4400 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1578000.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.878; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.974 |
