SAXSdb — 11be

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein Rev

Human immunodeficiency virus 1

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 155 PDB declaration: 155-meric（155） Consistent with protein copy count	Chain A1； UniProt 1–116 Chain A4； UniProt 1–116 Chain A5； UniProt 1–116 Chain A9； UniProt 1–116 Chain B1； UniProt 1–116 Chain B4； UniProt 1–116 Chain B5； UniProt 1–116 Chain B9； UniProt 1–116 Chain C1； UniProt 1–116 Chain C5； UniProt 1–116 Chain C6； UniProt 1–116 Chain C9； UniProt 1–116 Chain D1； UniProt 1–116 Chain D5； UniProt 1–116 Chain D6； UniProt 1–116 Chain D9； UniProt 1–116 Chain E1； UniProt 1–116 Chain E5； UniProt 1–116 Chain E6； UniProt 1–116 Chain E9； UniProt 1–116 Chain F1； UniProt 1–116 Chain F5； UniProt 1–116 Chain F6； UniProt 1–116 Chain F9； UniProt 1–116 Chain G1； UniProt 1–116 Chain G5； UniProt 1–116 Chain G6； UniProt 1–116 Chain G9； UniProt 1–116 Chain H1； UniProt 1–116 Chain H5； UniProt 1–116 Chain H6； UniProt 1–116 Chain H9； UniProt 1–116 Chain I1； UniProt 1–116 Chain I4； UniProt 1–116 Chain I9； UniProt 1–116 Chain J1； UniProt 1–116 Chain J4； UniProt 1–116 Chain J9； UniProt 1–116 Chain K1； UniProt 1–116 Chain K4； UniProt 1–116 Chain K9； UniProt 1–116 Chain L1； UniProt 1–116 Chain L4； UniProt 1–116 Chain L9； UniProt 1–116 Chain M1； UniProt 1–116 Chain M4； UniProt 1–116 Chain M5； UniProt 1–116 Chain M9； UniProt 1–116 Chain N1； UniProt 1–116 Chain N4； UniProt 1–116 Chain N5； UniProt 1–116 Chain N9； UniProt 1–116 Chain O1； UniProt 1–116 Chain O4； UniProt 1–116 Chain O5； UniProt 1–116 Chain O9； UniProt 1–116 Chain P1； UniProt 1–116 Chain P5； UniProt 1–116 Chain P9； UniProt 1–116 Chain R1； UniProt 1–116 Chain R4； UniProt 1–116 Chain R9； UniProt 1–116 Chain S1； UniProt 1–116 Chain S4； UniProt 1–116 Chain S9； UniProt 1–116 Chain T1； UniProt 1–116 Chain T4； UniProt 1–116 Chain T5； UniProt 1–116 Chain T9； UniProt 1–116 Chain U1； UniProt 1–116 Chain U4； UniProt 1–116 Chain U5； UniProt 1–116 Chain U9； UniProt 1–116 Chain V1； UniProt 1–116 Chain V5； UniProt 1–116 Chain V6； UniProt 1–116 Chain V9； UniProt 1–116 Chain W1； UniProt 1–116 Chain W5； UniProt 1–116 Chain W6； UniProt 1–116 Chain W9； UniProt 1–116 Chain X1； UniProt 1–116 Chain X5； UniProt 1–116 Chain X6； UniProt 1–116 Chain X9； UniProt 1–116 Chain Y1； UniProt 1–116 Chain Y5； UniProt 1–116 Chain Y6； UniProt 1–116 Chain Y9； UniProt 1–116 Chain a3； UniProt 1–116 Chain a7； UniProt 1–116 Chain a8； UniProt 1–116 Chain b3； UniProt 1–116 Chain b7； UniProt 1–116 Chain b8； UniProt 1–116 Chain c2； UniProt 1–116 Chain c7； UniProt 1–116 Chain c8； UniProt 1–116 Chain d2； UniProt 1–116 Chain d7； UniProt 1–116 Chain d8； UniProt 1–116 Chain e2； UniProt 1–116 Chain e7； UniProt 1–116 Chain e8； UniProt 1–116 Chain f2； UniProt 1–116 Chain f7； UniProt 1–116 Chain f8； UniProt 1–116 Chain g2； UniProt 1–116 Chain g7； UniProt 1–116 Chain g8； UniProt 1–116 Chain h2； UniProt 1–116 Chain h7； UniProt 1–116 Chain h8； UniProt 1–116 Chain i3； UniProt 1–116 Chain i7； UniProt 1–116 Chain j3； UniProt 1–116 Chain j7； UniProt 1–116 Chain k3； UniProt 1–116 Chain k7； UniProt 1–116 Chain l3； UniProt 1–116 Chain l7； UniProt 1–116 Chain m3； UniProt 1–116 Chain m7； UniProt 1–116 Chain m8； UniProt 1–116 Chain n3； UniProt 1–116 Chain n7； UniProt 1–116 Chain n8； UniProt 1–116 Chain o3； UniProt 1–116 Chain o7； UniProt 1–116 Chain o8； UniProt 1–116 Chain p3； UniProt 1–116 Chain p7； UniProt 1–116 Chain p8； UniProt 1–116 Chain r3； UniProt 1–116 Chain r7； UniProt 1–116 Chain s3； UniProt 1–116 Chain s7； UniProt 1–116 Chain t3； UniProt 1–116 Chain t7； UniProt 1–116 Chain t8； UniProt 1–116 Chain u3； UniProt 1–116 Chain u7； UniProt 1–116 Chain u8； UniProt 1–116 Chain v2； UniProt 1–116 Chain v7； UniProt 1–116 Chain v8； UniProt 1–116 Chain w2； UniProt 1–116 Chain w7； UniProt 1–116 Chain w8； UniProt 1–116 Chain x2； UniProt 1–116 Chain x7； UniProt 1–116 Chain x8； UniProt 1–116 Chain y2； UniProt 1–116 Chain y7； UniProt 1–116 Chain y8； UniProt 1–116	Not recorded	No other associated polymer	ELECTRON MICROSCOPY cryo-EM buffer：pH 7 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 8.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 11BE	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
11BC Human Nap1 in complex with HIV-1 Rev Deposited 2026-02-15	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 1–116（116 aa） Chain D 1–116（116 aa） Chain E 1–116（116 aa） Chain F 1–116（116 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
5DHV HIV-1 Rev NTD dimers with variable crossing angles Deposited 2015-08-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain N 1–65（65 aa）	Not recorded	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Crystals of scFv-Rev were initially grown in 20% PEG 3350, a variety of salts (200 mM sodium sulfate, sodium bromide, or ammonium phosphate dibasic), and pH ranging from 6.5-8.5.	Resolution 2.30 Å R-free 0.227
5DHV HIV-1 Rev NTD dimers with variable crossing angles Deposited 2015-08-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain M 1–65（65 aa）	Not recorded	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Crystals of scFv-Rev were initially grown in 20% PEG 3350, a variety of salts (200 mM sodium sulfate, sodium bromide, or ammonium phosphate dibasic), and pH ranging from 6.5-8.5.	Resolution 2.30 Å R-free 0.227
5DHY HIV-1 Rev NTD dimers with variable crossing angles Deposited 2015-08-31	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–65（65 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Crystals of scFv-Rev were initially grown in 20% PEG 3350, a variety of salts (200 mM sodium sulfate, sodium bromide, or ammonium phosphate dibasic), and pH ranging from 6.5-8.5	Resolution 3.10 Å R-free 0.300
5DHY HIV-1 Rev NTD dimers with variable crossing angles Deposited 2015-08-31	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain M 1–65（65 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Crystals of scFv-Rev were initially grown in 20% PEG 3350, a variety of salts (200 mM sodium sulfate, sodium bromide, or ammonium phosphate dibasic), and pH ranging from 6.5-8.5	Resolution 3.10 Å R-free 0.300
5DHZ HIV-1 Rev NTD dimers with variable crossing angles Deposited 2015-08-31	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain M 1–65（65 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Crystals of scFv-Rev were initially grown in 20% PEG 3350, a variety of salts (200 mM sodium sulfate, sodium bromide, or ammonium phosphate dibasic), and pH ranging from 6.5-8.5	Resolution 4.30 Å R-free 0.324
6BSY HIV-1 Rev assembly domain (residues 1-69) Deposited 2017-12-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–70（70 aa） Fragment：assembly domain (UNP residues 1-70) Chain B 1–70（70 aa） Fragment：assembly domain (UNP residues 1-70)	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；283.15 K；0.1 M sodium citrate, 25% MPD	Resolution 2.25 Å R-free 0.260
6CF2 Crystal structure of HIV-1 Rev (residues 1-93)-RNA aptamer complex Deposited 2018-02-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 3 PDB declaration: tetrameric	Chain F 1–93（93 aa） Fragment：UNP residues 1-93	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291.15 K；2% v/v 1,4-dioxane, 0.1 M Tris, pH 8.0, 15% w/v PEG3350	Resolution 3.00 Å R-free 0.241

6 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q76PP8_HV1
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A1； PDBConstruct 1–116； UniProt 1–116 Author chain A4； PDBConstruct 1–116； UniProt 1–116 Author chain A5； PDBConstruct 1–116； UniProt 1–116 Author chain A9； PDBConstruct 1–116； UniProt 1–116 Author chain B1； PDBConstruct 1–116； UniProt 1–116 Author chain B4； PDBConstruct 1–116； UniProt 1–116 Author chain B5； PDBConstruct 1–116； UniProt 1–116 Author chain B9； PDBConstruct 1–116； UniProt 1–116 Author chain C1； PDBConstruct 1–116； UniProt 1–116 Author chain C5； PDBConstruct 1–116； UniProt 1–116 Author chain C6； PDBConstruct 1–116； UniProt 1–116 Author chain C9； PDBConstruct 1–116； UniProt 1–116 Author chain D1； PDBConstruct 1–116； UniProt 1–116 Author chain D5； PDBConstruct 1–116； UniProt 1–116 Author chain D6； PDBConstruct 1–116； UniProt 1–116 Author chain D9； PDBConstruct 1–116； UniProt 1–116 Author chain E1； PDBConstruct 1–116； UniProt 1–116 Author chain E5； PDBConstruct 1–116； UniProt 1–116 Author chain E6； PDBConstruct 1–116； UniProt 1–116 Author chain E9； PDBConstruct 1–116； UniProt 1–116 Author chain F1； PDBConstruct 1–116； UniProt 1–116 Author chain F5； PDBConstruct 1–116； UniProt 1–116 Author chain F6； PDBConstruct 1–116； UniProt 1–116 Author chain F9； PDBConstruct 1–116； UniProt 1–116 Author chain G1； PDBConstruct 1–116； UniProt 1–116 Author chain G5； PDBConstruct 1–116； UniProt 1–116 Author chain G6； PDBConstruct 1–116； UniProt 1–116 Author chain G9； PDBConstruct 1–116； UniProt 1–116 Author chain H1； PDBConstruct 1–116； UniProt 1–116 Author chain H5； PDBConstruct 1–116； UniProt 1–116 Author chain H6； PDBConstruct 1–116； UniProt 1–116 Author chain H9； PDBConstruct 1–116； UniProt 1–116 Author chain I1； PDBConstruct 1–116； UniProt 1–116 Author chain I4； PDBConstruct 1–116； UniProt 1–116 Author chain I9； PDBConstruct 1–116； UniProt 1–116 Author chain J1； PDBConstruct 1–116； UniProt 1–116 Author chain J4； PDBConstruct 1–116； UniProt 1–116 Author chain J9； PDBConstruct 1–116； UniProt 1–116 Author chain K1； PDBConstruct 1–116； UniProt 1–116 Author chain K4； PDBConstruct 1–116； UniProt 1–116 Author chain K9； PDBConstruct 1–116； UniProt 1–116 Author chain L1； PDBConstruct 1–116； UniProt 1–116 Author chain L4； PDBConstruct 1–116； UniProt 1–116 Author chain L9； PDBConstruct 1–116； UniProt 1–116 Author chain M1； PDBConstruct 1–116； UniProt 1–116 Author chain M4； PDBConstruct 1–116； UniProt 1–116 Author chain M5； PDBConstruct 1–116； UniProt 1–116 Author chain M9； PDBConstruct 1–116； UniProt 1–116 Author chain N1； PDBConstruct 1–116； UniProt 1–116 Author chain N4； PDBConstruct 1–116； UniProt 1–116 Author chain N5； PDBConstruct 1–116； UniProt 1–116 Author chain N9； PDBConstruct 1–116； UniProt 1–116 Author chain O1； PDBConstruct 1–116； UniProt 1–116 Author chain O4； PDBConstruct 1–116； UniProt 1–116 Author chain O5； PDBConstruct 1–116； UniProt 1–116 Author chain O9； PDBConstruct 1–116； UniProt 1–116 Author chain P1； PDBConstruct 1–116； UniProt 1–116 Author chain P5； PDBConstruct 1–116； UniProt 1–116 Author chain P9； PDBConstruct 1–116； UniProt 1–116 Author chain R1； PDBConstruct 1–116； UniProt 1–116 Author chain R4； PDBConstruct 1–116； UniProt 1–116 Author chain R9； PDBConstruct 1–116； UniProt 1–116 Author chain S1； PDBConstruct 1–116； UniProt 1–116 Author chain S4； PDBConstruct 1–116； UniProt 1–116 Author chain S9； PDBConstruct 1–116； UniProt 1–116 Author chain T1； PDBConstruct 1–116； UniProt 1–116 Author chain T4； PDBConstruct 1–116； UniProt 1–116 Author chain T5； PDBConstruct 1–116； UniProt 1–116 Author chain T9； PDBConstruct 1–116； UniProt 1–116 Author chain U1； PDBConstruct 1–116； UniProt 1–116 Author chain U4； PDBConstruct 1–116； UniProt 1–116 Author chain U5； PDBConstruct 1–116； UniProt 1–116 Author chain U9； PDBConstruct 1–116； UniProt 1–116 Author chain V1； PDBConstruct 1–116； UniProt 1–116 Author chain V5； PDBConstruct 1–116； UniProt 1–116 Author chain V6； PDBConstruct 1–116； UniProt 1–116 Author chain V9； PDBConstruct 1–116； UniProt 1–116 Author chain W1； PDBConstruct 1–116； UniProt 1–116 Author chain W5； PDBConstruct 1–116； UniProt 1–116 Author chain W6； PDBConstruct 1–116； UniProt 1–116 Author chain W9； PDBConstruct 1–116； UniProt 1–116 Author chain X1； PDBConstruct 1–116； UniProt 1–116 Author chain X5； PDBConstruct 1–116； UniProt 1–116 Author chain X6； PDBConstruct 1–116； UniProt 1–116 Author chain X9； PDBConstruct 1–116； UniProt 1–116 Author chain Y1； PDBConstruct 1–116； UniProt 1–116 Author chain Y5； PDBConstruct 1–116； UniProt 1–116 Author chain Y6； PDBConstruct 1–116； UniProt 1–116 Author chain Y9； PDBConstruct 1–116； UniProt 1–116 Author chain a3； PDBConstruct 1–116； UniProt 1–116 Author chain a7； PDBConstruct 1–116； UniProt 1–116 Author chain a8； PDBConstruct 1–116； UniProt 1–116 Author chain b3； PDBConstruct 1–116； UniProt 1–116 Author chain b7； PDBConstruct 1–116； UniProt 1–116 Author chain b8； PDBConstruct 1–116； UniProt 1–116 Author chain c2； PDBConstruct 1–116； UniProt 1–116 Author chain c7； PDBConstruct 1–116； UniProt 1–116 Author chain c8； PDBConstruct 1–116； UniProt 1–116 Author chain d2； PDBConstruct 1–116； UniProt 1–116 Author chain d7； PDBConstruct 1–116； UniProt 1–116 Author chain d8； PDBConstruct 1–116； UniProt 1–116 Author chain e2； PDBConstruct 1–116； UniProt 1–116 Author chain e7； PDBConstruct 1–116； UniProt 1–116 Author chain e8； PDBConstruct 1–116； UniProt 1–116 Author chain f2； PDBConstruct 1–116； UniProt 1–116 Author chain f7； PDBConstruct 1–116； UniProt 1–116 Author chain f8； PDBConstruct 1–116； UniProt 1–116 Author chain g2； PDBConstruct 1–116； UniProt 1–116 Author chain g7； PDBConstruct 1–116； UniProt 1–116 Author chain g8； PDBConstruct 1–116； UniProt 1–116 Author chain h2； PDBConstruct 1–116； UniProt 1–116 Author chain h7； PDBConstruct 1–116； UniProt 1–116 Author chain h8； PDBConstruct 1–116； UniProt 1–116 Author chain i3； PDBConstruct 1–116； UniProt 1–116 Author chain i7； PDBConstruct 1–116； UniProt 1–116 Author chain j3； PDBConstruct 1–116； UniProt 1–116 Author chain j7； PDBConstruct 1–116； UniProt 1–116 Author chain k3； PDBConstruct 1–116； UniProt 1–116 Author chain k7； PDBConstruct 1–116； UniProt 1–116 Author chain l3； PDBConstruct 1–116； UniProt 1–116 Author chain l7； PDBConstruct 1–116； UniProt 1–116 Author chain m3； PDBConstruct 1–116； UniProt 1–116 Author chain m7； PDBConstruct 1–116； UniProt 1–116 Author chain m8； PDBConstruct 1–116； UniProt 1–116 Author chain n3； PDBConstruct 1–116； UniProt 1–116 Author chain n7； PDBConstruct 1–116； UniProt 1–116 Author chain n8； PDBConstruct 1–116； UniProt 1–116 Author chain o3； PDBConstruct 1–116； UniProt 1–116 Author chain o7； PDBConstruct 1–116； UniProt 1–116 Author chain o8； PDBConstruct 1–116； UniProt 1–116 Author chain p3； PDBConstruct 1–116； UniProt 1–116 Author chain p7； PDBConstruct 1–116； UniProt 1–116 Author chain p8； PDBConstruct 1–116； UniProt 1–116 Author chain r3； PDBConstruct 1–116； UniProt 1–116 Author chain r7； PDBConstruct 1–116； UniProt 1–116 Author chain s3； PDBConstruct 1–116； UniProt 1–116 Author chain s7； PDBConstruct 1–116； UniProt 1–116 Author chain t3； PDBConstruct 1–116； UniProt 1–116 Author chain t7； PDBConstruct 1–116； UniProt 1–116 Author chain t8； PDBConstruct 1–116； UniProt 1–116 Author chain u3； PDBConstruct 1–116； UniProt 1–116 Author chain u7； PDBConstruct 1–116； UniProt 1–116 Author chain u8； PDBConstruct 1–116； UniProt 1–116 Author chain v2； PDBConstruct 1–116； UniProt 1–116 Author chain v7； PDBConstruct 1–116； UniProt 1–116 Author chain v8； PDBConstruct 1–116； UniProt 1–116 Author chain w2； PDBConstruct 1–116； UniProt 1–116 Author chain w7； PDBConstruct 1–116； UniProt 1–116 Author chain w8； PDBConstruct 1–116； UniProt 1–116 Author chain x2； PDBConstruct 1–116； UniProt 1–116 Author chain x7； PDBConstruct 1–116； UniProt 1–116 Author chain x8； PDBConstruct 1–116； UniProt 1–116 Author chain y2； PDBConstruct 1–116； UniProt 1–116 Author chain y7； PDBConstruct 1–116； UniProt 1–116 Author chain y8； PDBConstruct 1–116； UniProt 1–116

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	11be
Deposition date deposition_date	2026-02-15
Structure title title	HIV-1 Rev Filament
Keywords keywords	HIV-1, Rev, Filament, Rev Response Element, RNA, RNA binding protein, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	97.75 Å
Radius of gyration Rg (electron density) rg_electron	96.88 Å
Forward intensity I(0) i0	17708300000.00
Molecular weight molecular_weight	1079900.0 kDa
Excluded volume excluded_volume	1341500 Å³
Envelope volume envelope_volume	3301900 Å³
Hydration-shell volume shell_volume	296770 Å³
Envelope diameter envelope_diameter	331.7 Å
Shell Rg shell_rg	91.90 Å
Envelope Rg envelope_rg	90.72 Å
Shape Rg shape_rg	96.86 Å
Total Rg total_rg	96.87 Å
Total atoms total_atoms	76260
Residues n_residues	8680
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	271.1 Å
Rg (real space) rg_real	95.16 Å
Rg uncertainty (real space) rg_real_error	0.90 Å
I(0) (real space) i0_real	1.7050e+10
I(0) uncertainty (real space) i0_real_error	3.4190e+08
Rg (reciprocal space) rg_reciprocal	96.94 Å
I(0) (reciprocal space) i0_reciprocal	17660000000.0000
Solution quality estimate total_estimate	0.8841
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	118.6 Å
Skewness Skewness skewness	0.359
Kurtosis Kurtosis kurtosis	-0.274
Angular range angular_range	— – 0.0800 Å⁻¹
Current regularization parameter α current_alpha	0.9271
Highest regularization parameter α highest_alpha	5665000000.0000
Real-space data points n_real_points	17
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.001; Oscil: 0.875; Stabil: 0.952; Sysdev: 1.000; Positv: 1.000; Valcen: 0.965; Smooth: 0.050

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▶

8. Citations (1)

▶

Resolution resolution	8.30 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	300

Description description	Protein Rev
Molecular weight formula_weight	13142.9 kDa
Source method src_method	man
Copy count entity_count	155

Polymer type type	polypeptide(L)
Chain IDs strand_id	;A1,B1,C1,D1,E1,F1,G1,H1,I1,J1,K1,L1,M1,N1,O1,P1,R1,S1,T1,U1,V1,W1,X1,Y1,c2,d2,e2,f2,g2,h2,v2,w2,x2,y2,a3,b3,i3,j3,k3,l3,m3,n3,o3,p3,r3,s3,t3,u3,A4,B4,I4,J4,K4,L4,M4,N4,O4,R4,S4,T4,U4,A5,B5,C5,D5,E5,F5,G5,H5,M5,N5,O5,P5,T5,U5,V5,W5,X5,Y5,C6,D6,E6,F6,G6,H6,V6,W6,X6,Y6,a7,b7,c7,d7,e7,f7,g7,h7,i7,j7,k7,l7,m7,n7,o7,p7,r7,s7,t7,u7,v7,w7,x7,y7,a8,b8,c8,d8,e8,f8,g8,h8,m8,n8,o8,p8,t8,u8,v8,w8,x8,y8,A9,B9,C9,D9,E9,F9,G9,H9,I9,J9,K9,L9,M9,N9,O9,P9,R9,S9,T9,U9,V9,W9,X9,Y9 ;
Atom count atom_count	76260

来源生物 organism	Human immunodeficiency virus 1
NCBI Class编号 ncbi_taxonomy_id	11676
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/1b/11be/11be.fit
pddf	/app/data/pr_computation/1b/11be/11be.pr.out
profile	/app/data/saxs_computation/1b/11be/11be.dat

HIV-1 Rev Filament

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein Rev

State in the Current Structure

Other States of the Same Protein in the Database

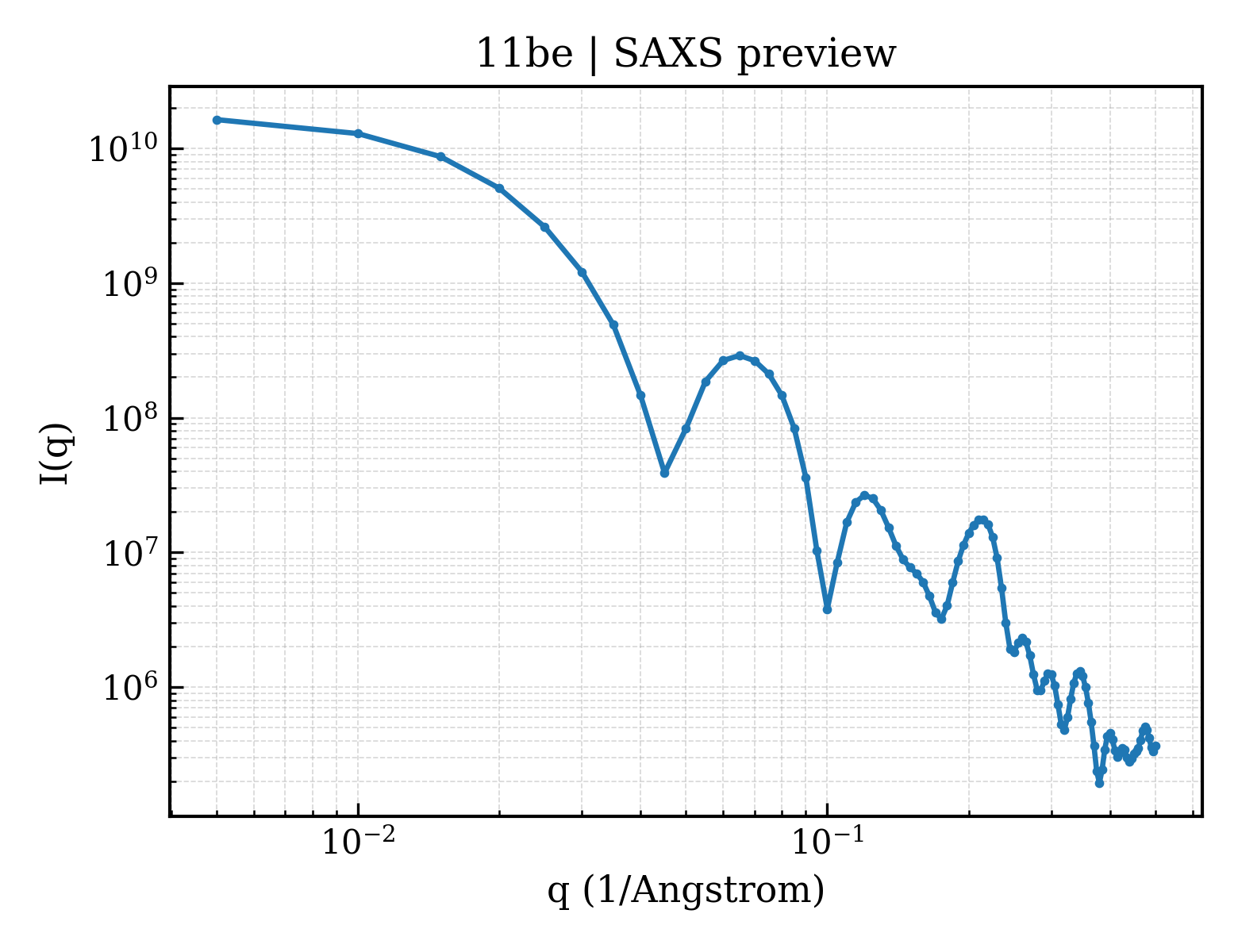

SAXS scattering curve SAXS Profile

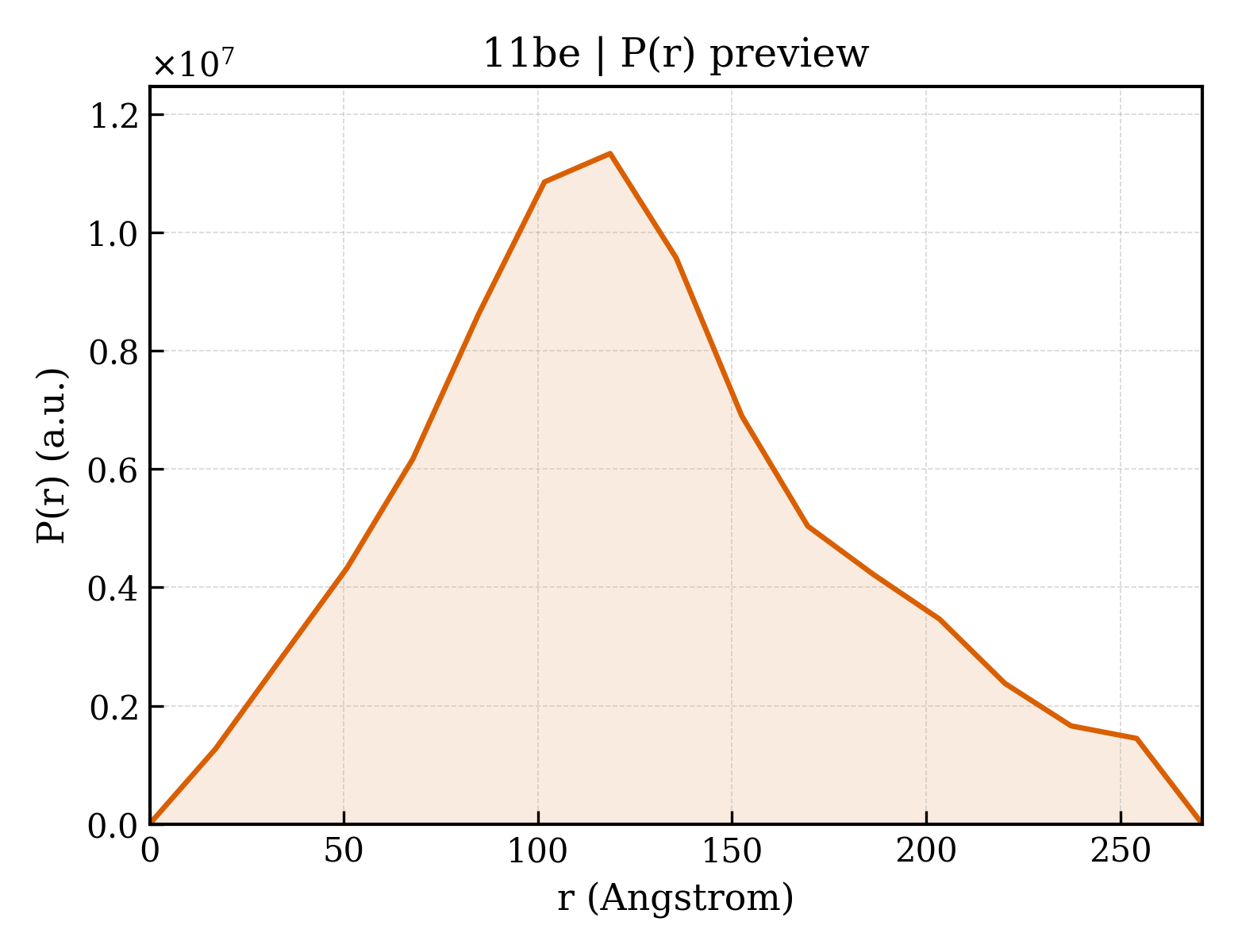

P(r) Distance Distribution P(r) Distribution
