SAXSdb — 11ef

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

L-erythrulose-1-phosphate isomerase

Brucella abortus 2308

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 3–256 Chain B； UniProt 3–256	Mutation：A173D	CL CHLORIDE ION × 1 GOL GLYCEROL × 2 PO4 PHOSPHATE ION × 3 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；JCSG+ D12: 40 mM potassium phosphate, 16% PEG 8000, 20% glycerol. BrabA.00276.a.B2.PW39519 at 15.2 mg/mL. plate 20694 D12 drop 1, Puck: PSL-1811, Cryo: JCSG+ D12.	Resolution 2.15 Å R-free 0.218
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 3–256 Chain D； UniProt 3–256	Mutation：A173D	CL CHLORIDE ION × 1 GOL GLYCEROL × 2 PO4 PHOSPHATE ION × 3 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；JCSG+ D12: 40 mM potassium phosphate, 16% PEG 8000, 20% glycerol. BrabA.00276.a.B2.PW39519 at 15.2 mg/mL. plate 20694 D12 drop 1, Puck: PSL-1811, Cryo: JCSG+ D12.	Resolution 2.15 Å R-free 0.218

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 11EF	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
11EG Crystal Structure of L-erythrulose-1-phosphate isomerase from Brucella melitensis (P1 form) Deposited 2026-02-18	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 3–256（254 aa） Chain B 3–256（254 aa）	Mutation：A173D Mutation：A173D	CL CHLORIDE ION × 6 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；Berkeley B2: 100 mM HEPES, pH 7.5, 400 mM NaCl, 30% PEG 3350. BrabA.00276.a.B2.PW39519 at 15.2 mg/mL. plate 20692 B2 drop 1, Puck: PSL-2008, Cryo: Berkeley B2.	Resolution 1.60 Å R-free 0.183
11EG Crystal Structure of L-erythrulose-1-phosphate isomerase from Brucella melitensis (P1 form) Deposited 2026-02-18	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 3–256（254 aa） Chain D 3–256（254 aa）	Mutation：A173D Mutation：A173D	CL CHLORIDE ION × 4 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；Berkeley B2: 100 mM HEPES, pH 7.5, 400 mM NaCl, 30% PEG 3350. BrabA.00276.a.B2.PW39519 at 15.2 mg/mL. plate 20692 B2 drop 1, Puck: PSL-2008, Cryo: Berkeley B2.	Resolution 1.60 Å R-free 0.183
13GN Crystal Structure of L-erythrulose-1-phosphate isomerase from Brucella melitensis in complex with SN-GLYCEROL-1-PHOSPHATE Deposited 2026-05-05	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 3–256（254 aa） Fragment：K3-N256 Chain D 3–256（254 aa） Fragment：K3-N256	Mutation：A173D Mutation：A173D	CL CHLORIDE ION × 2 NA SODIUM ION × 3 1GP SN-GLYCEROL-1-PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；70 mM MES pH 6.5, 70 mM CaCl2, 14% PEG 1500, 8.4% hexanediol. BrabA.00276.a.B2.PW39519 at 15.2 mg/mL. 20 hour soak in 10 mM glycerol 3-phosphate (D/L mixture), 1GP fit best to the electron density, plate Liu-S-202 E9-F10, Puck: PSL-0208, Cryo: 100 mM MES, pH 6.5, 100 mM CaCl2, 20% PEG 1500, 12% hexanediol	Resolution 1.95 Å R-free 0.216
13GN Crystal Structure of L-erythrulose-1-phosphate isomerase from Brucella melitensis in complex with SN-GLYCEROL-1-PHOSPHATE Deposited 2026-05-05	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 3–256（254 aa） Fragment：K3-N256 Chain C 3–256（254 aa） Fragment：K3-N256	Mutation：A173D Mutation：A173D	CL CHLORIDE ION × 1 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；70 mM MES pH 6.5, 70 mM CaCl2, 14% PEG 1500, 8.4% hexanediol. BrabA.00276.a.B2.PW39519 at 15.2 mg/mL. 20 hour soak in 10 mM glycerol 3-phosphate (D/L mixture), 1GP fit best to the electron density, plate Liu-S-202 E9-F10, Puck: PSL-0208, Cryo: 100 mM MES, pH 6.5, 100 mM CaCl2, 20% PEG 1500, 12% hexanediol	Resolution 1.95 Å R-free 0.216

2 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ERYH_BRUA2
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 9–262； UniProt 3–256 Author chain B； PDBConstruct 9–262； UniProt 3–256 Author chain C； PDBConstruct 9–262； UniProt 3–256 Author chain D； PDBConstruct 9–262； UniProt 3–256

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	11ef
Deposition date deposition_date	2026-02-18
最后修订 last_revision	2026-03-04
Structure title title	Crystal Structure of L-erythrulose-1-phosphate isomerase from Brucella melitensis (P21 form)
Keywords keywords	;SSGCID, STRUCTURAL GENOMICS, SEATTLE STRUCTURAL GENOMICS CENTER FOR INFECTIOUS DISEASE, L-erythrulose-1-phosphate isomerase, ISOMERASE ;; ISOMERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.79 Å
Radius of gyration Rg (electron density) rg_electron	33.00 Å
Forward intensity I(0) i0	188672000.00
Molecular weight molecular_weight	108980.0 kDa
Excluded volume excluded_volume	135800 Å³
Envelope volume envelope_volume	165160 Å³
Hydration-shell volume shell_volume	40928 Å³
Envelope diameter envelope_diameter	108.2 Å
Shell Rg shell_rg	40.46 Å
Envelope Rg envelope_rg	32.76 Å
Shape Rg shape_rg	33.01 Å
Total Rg total_rg	33.50 Å
Total atoms total_atoms	7652
Residues n_residues	991
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

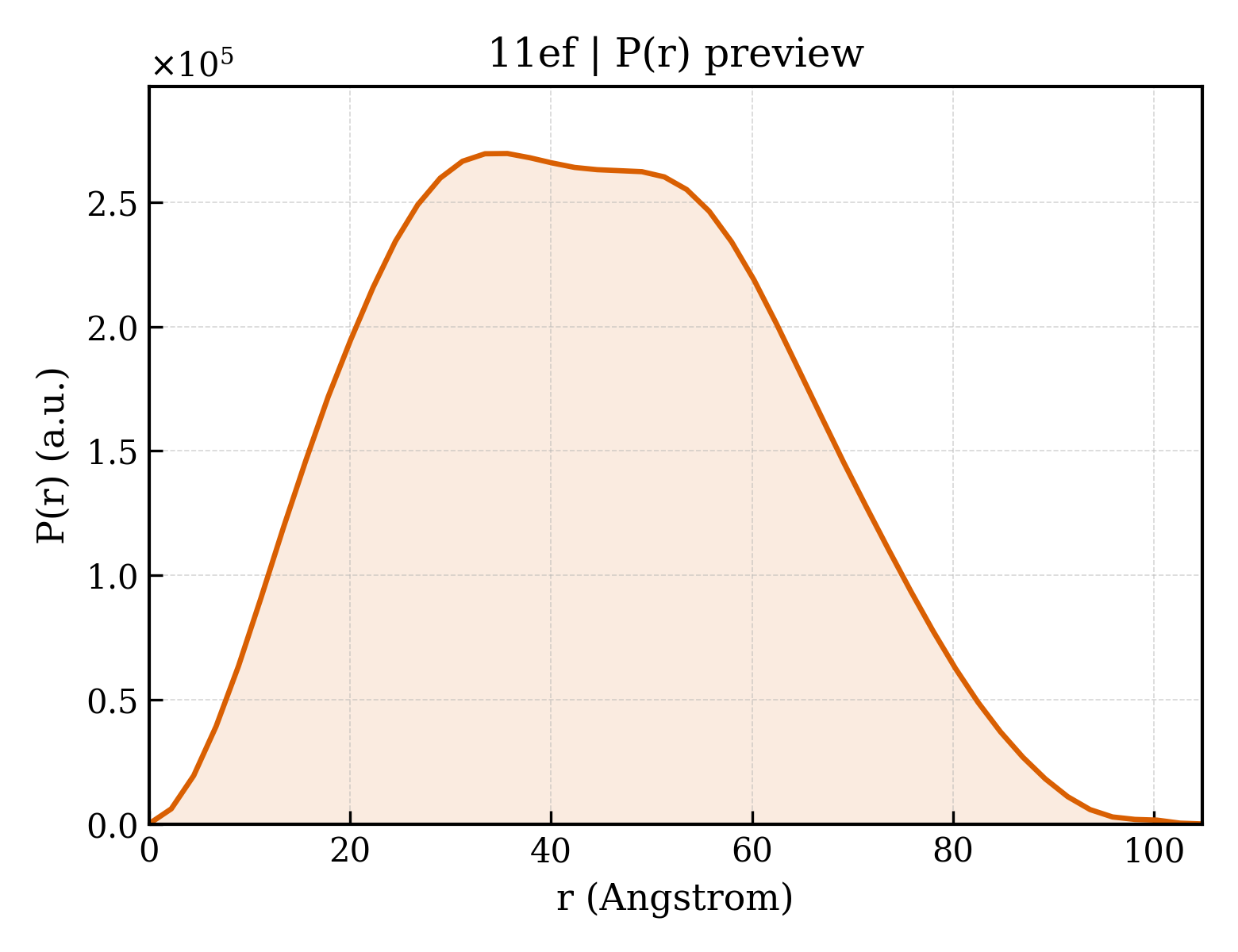

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	104.8 Å
Rg (real space) rg_real	33.72 Å
Rg uncertainty (real space) rg_real_error	0.74 Å
I(0) (real space) i0_real	1.8870e+08
I(0) uncertainty (real space) i0_real_error	3.0560e+06
Rg (reciprocal space) rg_reciprocal	33.77 Å
I(0) (reciprocal space) i0_reciprocal	188700000.0000
Solution quality estimate total_estimate	0.9046
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	35.7 Å
Skewness Skewness skewness	0.178
Kurtosis Kurtosis kurtosis	-0.669
Angular range angular_range	— – 0.2350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	57430000.0000
Real-space data points n_real_points	48
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.961; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.882

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	L-erythrulose-1-phosphate isomerase
Molecular weight formula_weight	28744.6 kDa
EC 编号 ec_number	5.3.1.33
Mutation mutation	A173D
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	8087

MAHHHHHHKFWIGTSWKMNKTLAEARLFAEALKAADAGRSPDIQRFVIPPFTAVREVKEILSGTSVKVGAQNMHWADQGAWTGEISPLMLKDCNLDIVELGHSERREHFGETNETVGLKVEAAVRHGLIPLICIGETLEDRESGRAAAVLEEEVRGALSKLSEAQKQAEILFAYEPVWDIGENGIPASADYADARQAEIIAVAQSVLARRVPCLYGGSVNPGNCEELIACPHIDGLFIGRSAWNVEGYLDILARCATKVQAN

来源 Source

来源生物 organism	Brucella abortus 2308
NCBI Class编号 ncbi_taxonomy_id	359391
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 5 Entity 5 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	413

▶

8. Citations (1)

▶

Unit-cell length a length_a	49.668 Å
Unit-cell length b length_b	141.818 Å
Unit-cell length c length_c	94.580 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	96.42 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.150 Å
Low-resolution limit resolution_low	46.610 Å
R factor r_factor	0.1813
R_work r_work	0.1794
R_free r_free	0.2180

fit	/app/data/saxs_computation/1e/11ef/11ef.fit
pddf	/app/data/pr_computation/1e/11ef/11ef.pr.out
profile	/app/data/saxs_computation/1e/11ef/11ef.dat
