11mz

;Influenza A virus Hemagglutinin (A/California/04/2009 H1N1), E47K HA2 stabilizing mutation (C3 symmetry) determined using the SPT Labtech chameleon in the presence of 0.25x SurfACT ;

Method: ELECTRON MICROSCOPY Dmax: 140.6 Å Quality: GOOD

SAXS Profile

SAXS profile for 11mz

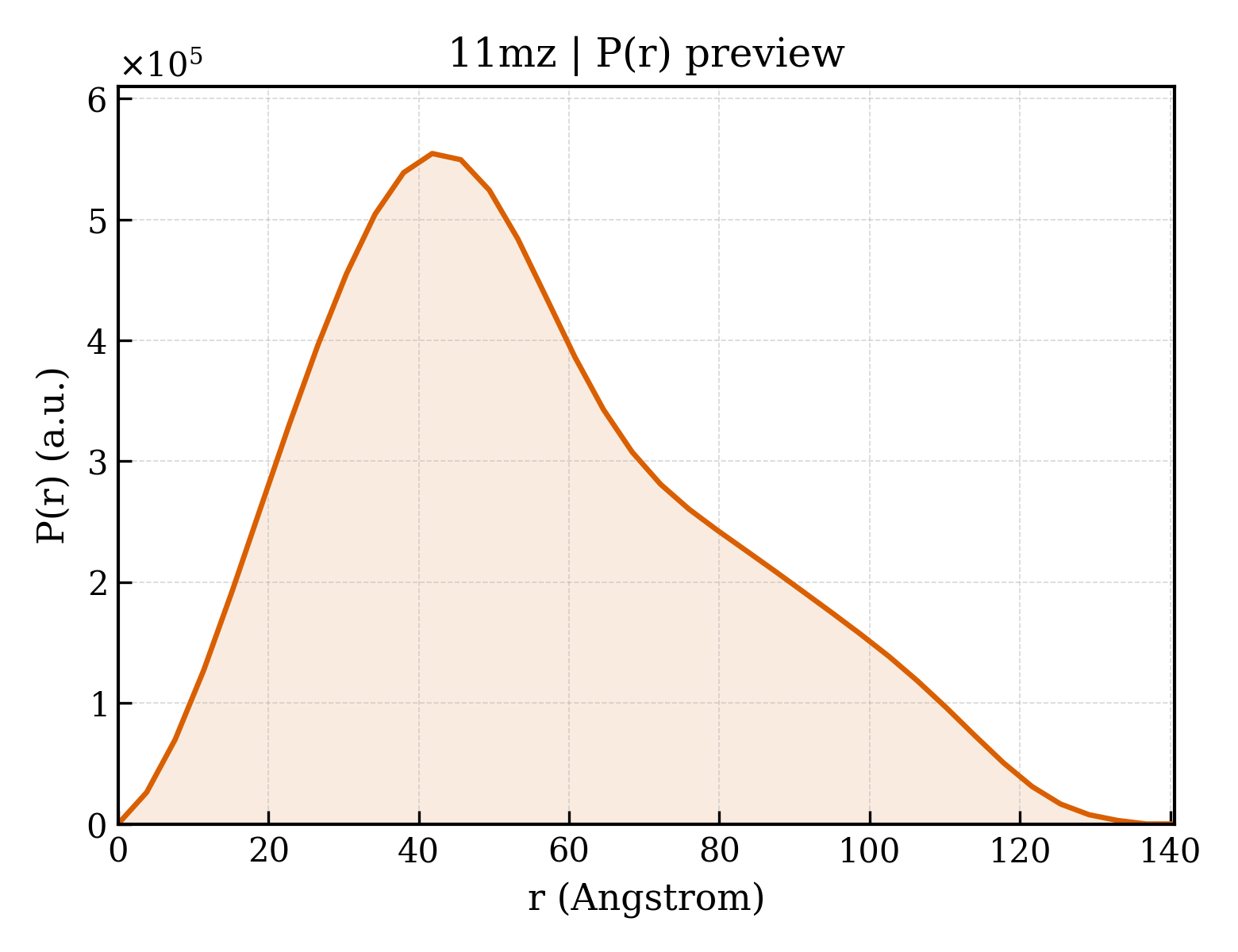

P(r) Distribution

P(r) distribution for 11mz
▼

1. Structure Basics

entry_id11mz
deposition_date2026-03-05
title;Influenza A virus Hemagglutinin (A/California/04/2009 H1N1), E47K HA2 stabilizing mutation (C3 symmetry) determined using the SPT Labtech chameleon in the presence of 0.25x SurfACT ;
keywordsHemagglutinin, Influenza A virus, H1N1, Viral Entry, Trimer, Glycoprotein, Membrane Fusion, VIRAL PROTEIN; VIRAL PROTEIN
methodELECTRON MICROSCOPY
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier42.32 Å
rg_electron41.94 Å
i0418455000.00
molecular_weight165200.0 kDa
excluded_volume205630 ų
envelope_volume271430 ų
shell_volume55768 ų
envelope_diameter142.6 Å
shell_rg44.95 Å
envelope_rg41.99 Å
shape_rg41.95 Å
total_rg42.05 Å
total_atoms11640
n_residues1470
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax140.6 Å
rg_real42.57 Å
rg_real_error1.41 Å
i0_real4.1850e+08
i0_real_error7.5420e+06
rg_reciprocal42.32 Å
i0_reciprocal418300000.0000
total_estimate0.8249
solution_quality GOOD a GOOD solution
n_peaks1
r_peak_primary41.8 Å
skewness0.513
kurtosis-0.393
angular_range— – 0.1850 Å−1
current_alpha0.0000
highest_alpha43410000.0000
n_real_points38
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.752; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.970; Smooth: 0.494
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

7. Files & Curves (10)
