11ts
Crystal structure of apo alpha/beta-hydrolase macrolide esterase EstT from Sphingobacterium faecium (S126A mutant)
SAXS Profile

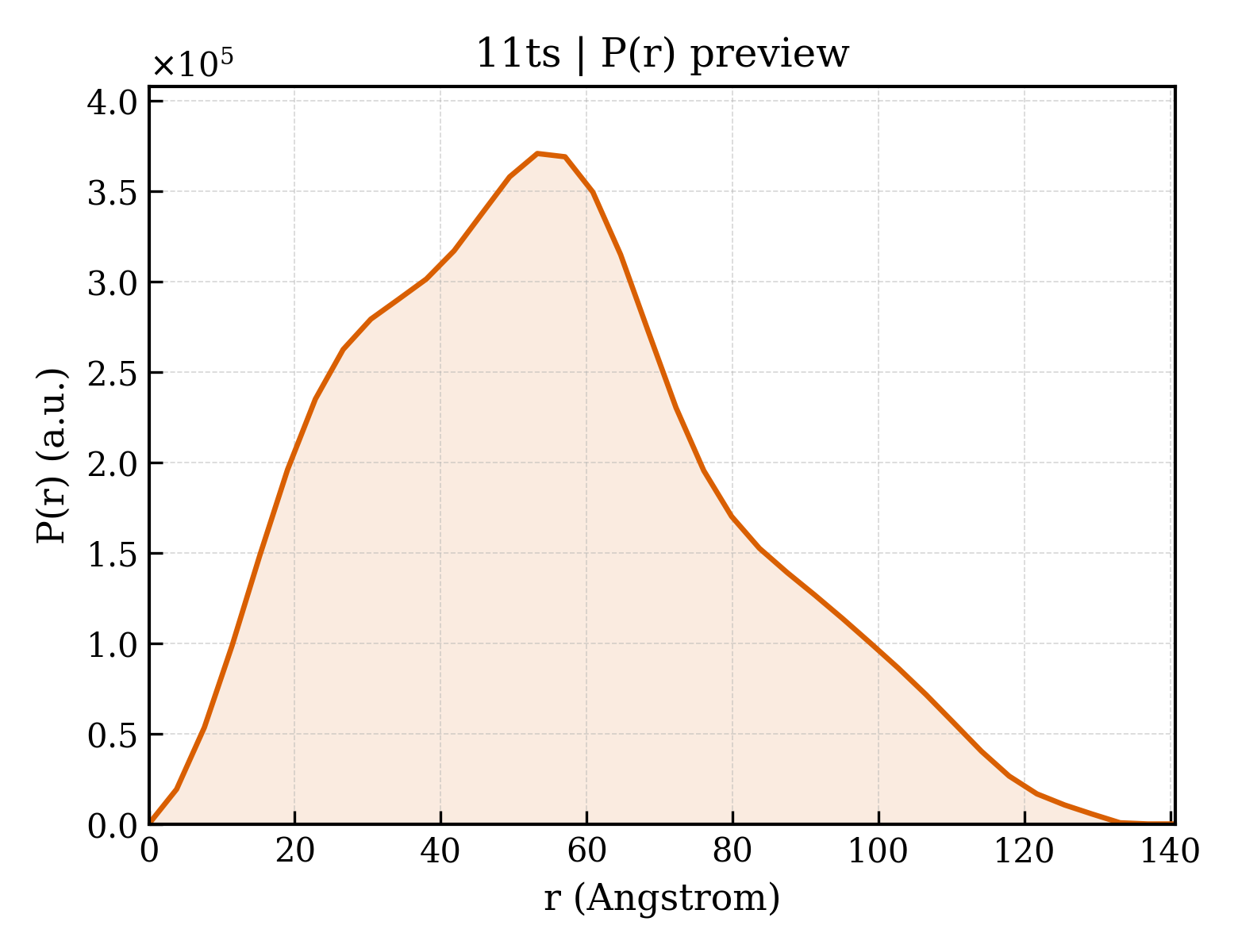

P(r) Distribution
1. Structure Basics
| entry_id | 11ts |
| deposition_date | 2026-03-12 |
| last_revision | 2026-04-08 |
| title | Crystal structure of apo alpha/beta-hydrolase macrolide esterase EstT from Sphingobacterium faecium (S126A mutant) |
| keywords | alpha/beta-hydrolase, esterase, macrolide resistance, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 42.43 Å |
| rg_electron | 42.27 Å |
| i0 | 292182000.00 |
| molecular_weight | 136160.0 kDa |
| excluded_volume | 168740 ų |
| envelope_volume | 245410 ų |
| shell_volume | 51116 ų |
| envelope_diameter | 141.6 Å |
| shell_rg | 44.27 Å |
| envelope_rg | 41.50 Å |
| shape_rg | 42.29 Å |
| total_rg | 42.30 Å |
| total_atoms | 9630 |
| n_residues | 1324 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 140.7 Å |
| rg_real | 42.56 Å |
| rg_real_error | 1.58 Å |
| i0_real | 2.9220e+08 |
| i0_real_error | 5.5450e+06 |
| rg_reciprocal | 42.43 Å |
| i0_reciprocal | 292100000.0000 |
| total_estimate | 0.8456 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 53.2 Å |
| skewness | 0.383 |
| kurtosis | -0.372 |
| angular_range | — – 0.1850 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 47540000.0000 |
| n_real_points | 38 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.807; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.971; Smooth: 0.598 |
