1. Structure Basics

entry_id	11ye
deposition_date	2026-03-18
title	Curved structure of mPiezo1 in plasma membrane vesicles
keywords	Piezo1, ion channel, mechanosensitive, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	66.49 Å
rg_electron	62.84 Å
i0	2448000000.00
molecular_weight	414490.0 kDa
excluded_volume	516970 Å³
envelope_volume	1021200 Å³
shell_volume	130960 Å³
envelope_diameter	201.0 Å
shell_rg	66.95 Å
envelope_rg	62.44 Å
shape_rg	63.01 Å
total_rg	62.36 Å
total_atoms	29295
n_residues	4005
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	207.2 Å
rg_real	66.30 Å
rg_real_error	1.38 Å
i0_real	2.4480e+09
i0_real_error	5.2860e+07
rg_reciprocal	67.05 Å
i0_reciprocal	2451000000.0000
total_estimate	0.8408
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	95.0 Å
skewness	0.040
kurtosis	-0.548
angular_range	— – 0.1200 Å⁻¹
current_alpha	0.0001
highest_alpha	206600000.0000
n_real_points	25
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.898; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.973; Smooth: 0.258

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

Entity 1 polymer

description	Piezo-type mechanosensitive ion channel component 1
formula_weight	294080.7 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	C,D,E
atom_count	29295

MEPHVLGAGLYWLLLPCTLLAASLLRFNALSLVYLLFLLLLPWLPGPSRHSIPGHTGRLLRALLCLSLLFLVAHLAFQICLHTVPHLDQFLGQNGSLWVKVSQHIGVTRLDLKDIFNTTRLVAPDLGVLLASSLCLGLCGRLTRKAGQSRRTQELQDDDDDDDDDDEDIDAAPAVGLKGAPALATKRRLWLASRFRVTAHWLLMTSGRTLVIVLLALAGIAHPSAFSSIYLVVFLAICTWWSCHFPLSPLGFNTLCVMVSCFGAGHLICLYCYQTPFIQDMLPPGNIWARLFGLKNFVDLPNYSSPNALVLNTKHAWPIYVSPGILLLLYYTATSLLKLHKSCPSELRKETPREDEEHELELDHLEPEPQARDATQGEMPMTTEPDLDNCTVHVLTSQSPVRQRPVRPRLAELKEMSPLHGLGHLIMDQSYVCALIAMMVWSIMYHSWLTFVLLLWACLIWTVRSRHQLAMLCSPCILLYGLTLCCLRYVWAMELPELPTTLGPVSLHQLGLEHTRYPCLDLGAMLLYLLTFWLLLRQFVKEKLLKKQKVPAALLEVTVADTEPTQTQTLLRSLGELVTGIYVKYWIYVCAGMFIVVSFAGRLVVYKIVYMFLFLLCLTLFQVYYTLWRKLLRVFWWLVVAYTMLVLIAVYTFQFQDFPTYWRNLTGFTDEQLGDLGLEQFSVSELFSSILIPGFFLLACILQLHYFHRPFMQLTDLEHVPPPGTRHPRWAHRQDAVSEAPLLEHQEEEEVFREDGQSMDGPHQATQVPEGTASKWGLVADRLLDLAASFSAVLTRIQVFVRRLLELHVFKLVALYTVWVALKEVSVMNLLLVVLWAFALPYPRFRPMASCLSTVWTCIIIVCKMLYQLKIVNPHEYSSNCTEPFPNNTNLQPLEINQSLLYRGPVDPANWFGVRKGYPNLGYIQNHLQILLLLVFEAVVYRRQEHYRRQHQQAPLPAQAVCADGTRQRLDQDLLSCLKYFINFFFYKFGLEICFLMAVNVIGQRMNFMVILHGCWLVAILTRRRREAIARLWPNYCLFLTLFLLYQYLLCLGMPPALCIDYPWRWSKAIPMNSALIKWLYLPDFFRAPNSTNLISDFLLLLCASQQWQVFSAERTEEWQRMAGINTDHLEPLRGEPNPIPNFIHCRSYLDMLKVAVFRYLFWLVLVVVFVAGATRISIFGLGYLLACFYLLLFGTTLLQKDTRAQLVLWDCLILYNVTVIISKNMLSLLSCVFVEQMQSNFCWVIQLFSLVCTVKGYYDPKEMMTRDRDCLLPVEEAGIIWDSICFFFLLLQRRIFLSHYFLHVSADLKATALQASRGFALYNAANLKSINFHRQIEEKSLAQLKRQMKRIRAKQEKYRQSQASRGQLQSKDPQDPSQEPGPDSPGGSSPPRRQWWRPWLDHATVIHSGDYFLFESDSEEEEEALPEDPRPAAQSAFQMAYQAWVTNAQTVLRQRRERARQERAEQLASGGDLNPDVEPVDVPEDEMAGRSHMMQRVLSTMQFLWVLGQATVDGLTRWLRAFTKHHRTMSDVLCAERYLLTQELLRVGEVRRGVLDQLYVGEDEATLSGPVETRDGPSTASSGLGAEEPLSSMTDDTSSPLSTGYNTRSGSEEIVTDAGDLQAGTSLHGSQELLANARTRMRTASELLLDRRLHIPELEEAERFEAQQGRTLRLLRAGYQCVAAHSELLCYFIIILNHMVTASAASLVLPVLVFLWAMLTIPRPSKRFWMTAIVFTEVMVVTKYLFQFGFFPWNSYVVLRRYENKPYFPPRILGLEKTDSYIKYDLVQLMALFFHRSQLLCYGLWDHEEDRYPKDHCRSSVKDREAKEEPEAKLESQSETGTGHPKEPVLAGTPRDHIQGKGSIRSKDVIQDPPEDLKPRHTRHISIRFRRRKETPGPKGTAVMETEHEEGEGKETTERKRPRHTQEKSKFRERMKAAGRRLQSFCVSLAQSFYQPLQRFFHDILHTKYRAATDVYALMFLADIVDIIIIIFGFWAFGKHSAATDIASSLSDDQVPQAFLFMLLVQFGTMVIDRALYLRKTVLGKLAFQVVLVVAIHIWMFFILPAVTERMFSQNAVAQLWYFVKCIYFALSAYQIRCGYPTRILGNFLTKKYNHLNLFLFQGFRLVPFLVELRAVMDWVWTDTTLSLSNWMCVEDIYANIFIIKCSRETEKKYPQPKGQKKKKIVKYGMGGLIILFLIAIIWFPLLFMSLIRSVVGVVNQPIDVTVTLKLGGYEPLFTMSAQQPSIVPFTPQAYEELSQQFDPYPLAMQFISQYSPEDIVTAQIEGSSGALWRISPPSRAQMKQELYNGTADITLRFTWNFQRDLAKGGTVEYTNEKHTLELAPNSTARRQLAQLLEGRPDQSVVIPHLFPKYIRAPNGPEANPVKQLQPDEEEDYLGVRIQLRREQVGTGASGEQAGSRLEEELRRRLTETKASDFLEWWVIELQDCKADCNLLPMVIFSDKVSPPSLGFLAGYGIVGLYVSIVLVVGKFVRGFFSEISHSIMFEELPCVDRILKLCQDIFLVRETRELELEEELYAKLIFLYRSPETMIKWTRERES

Source

organism	Mus musculus
common_name	house mouse
ncbi_taxonomy_id	10090
host_organism	Homo sapiens

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.700 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.70 Å
resolution_method	—
num_particles	69370

fit	/app/data/saxs_computation/1y/11ye/11ye.fit
pddf	/app/data/pr_computation/1y/11ye/11ye.pr.out
profile	/app/data/saxs_computation/1y/11ye/11ye.dat

Curved structure of mPiezo1 in plasma membrane vesicles

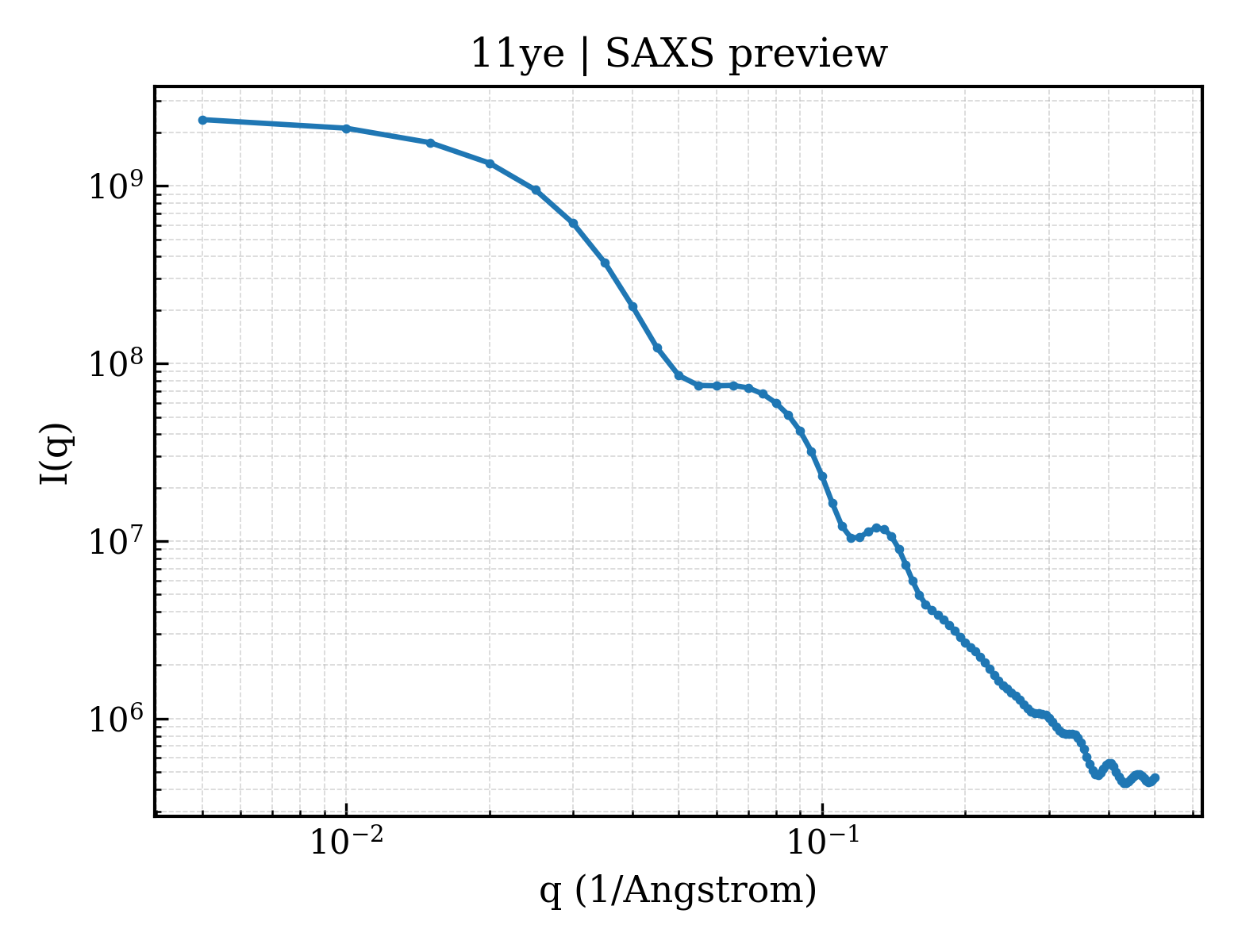

SAXS Profile

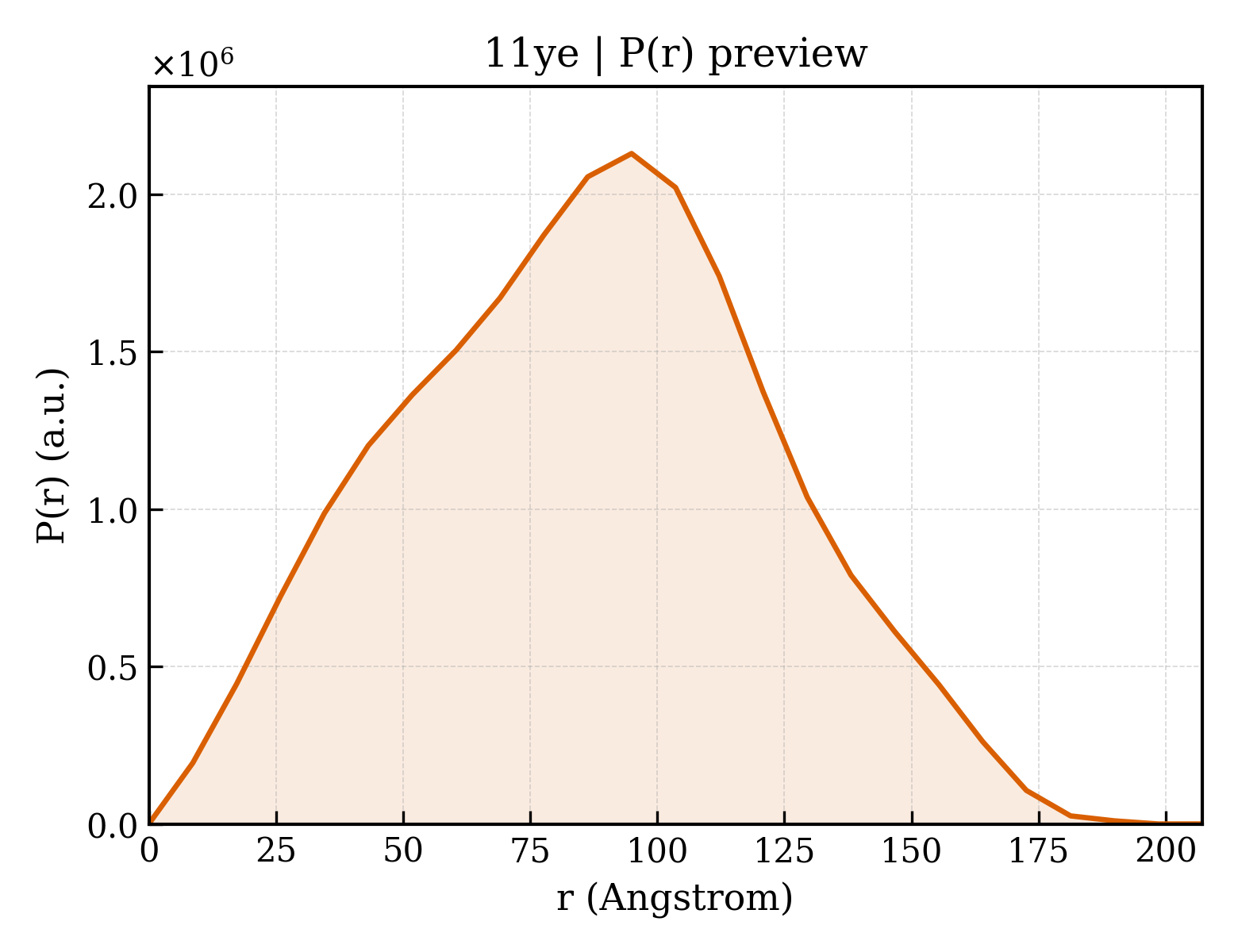

P(r) Distribution
