13qm

PanDDA analysis group deposition -- Crystal structure of PLpro-C111S in complex with Fr12588

Method: X-RAY DIFFRACTION D_max: 64.6 Å Quality: REASONABLE

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	13qm
deposition_date	2025-09-17
last_revision	2026-02-18
title	PanDDA analysis group deposition -- Crystal structure of PLpro-C111S in complex with Fr12588
keywords	PLpro, SARS-CoV-2, HYDROLASE; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	23.71 Å
rg_electron	23.19 Å
i0	40884300.00
molecular_weight	33307.0 kDa
excluded_volume	32271 Å³
envelope_volume	53387 Å³
shell_volume	20797 Å³
envelope_diameter	89.8 Å
shell_rg	28.54 Å
envelope_rg	23.54 Å
shape_rg	23.11 Å
total_rg	23.82 Å
total_atoms	2512
n_residues	313
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

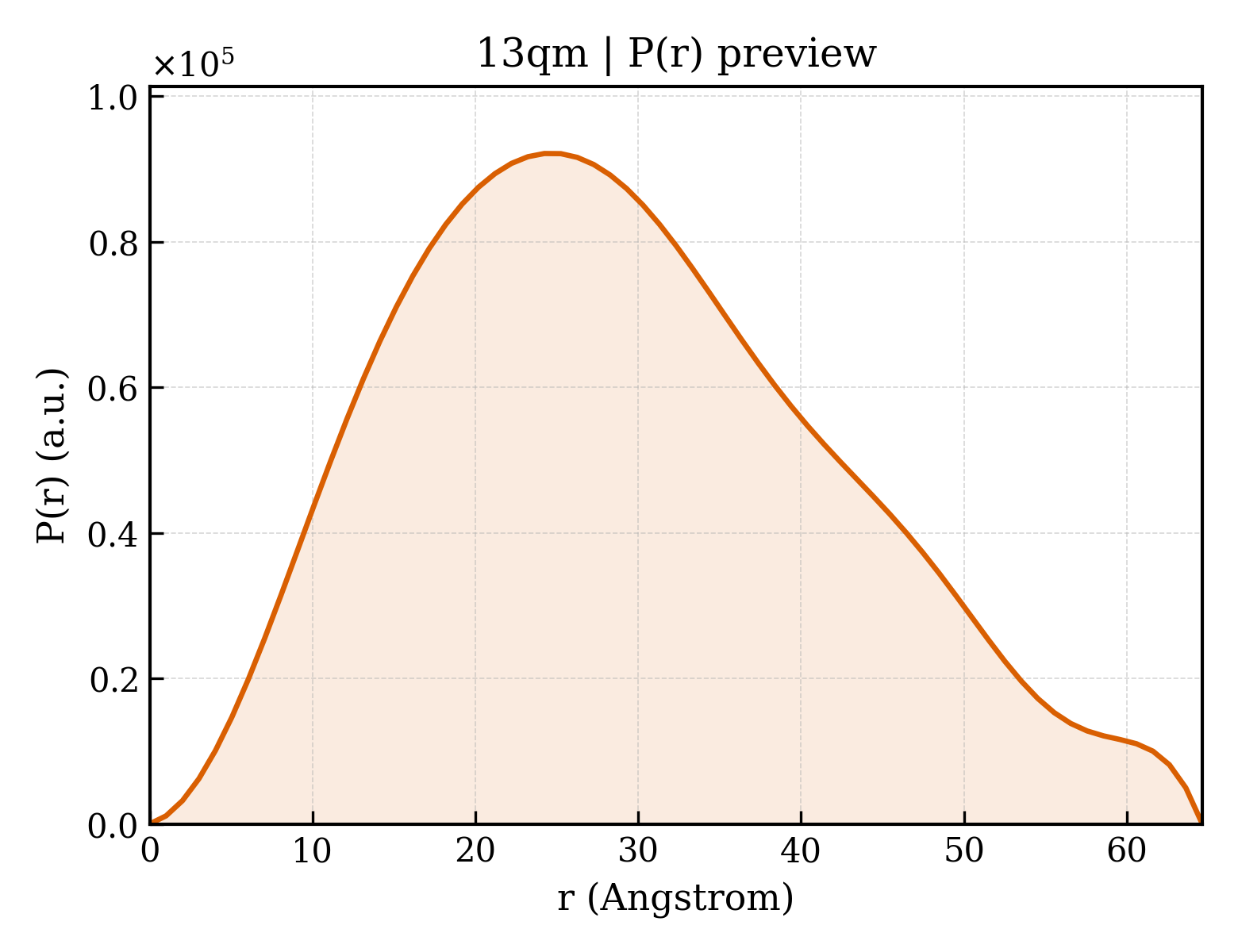

3. P(r) Analysis (GNOM)

dmax	64.6 Å
rg_real	22.43 Å
rg_real_error	0.13 Å
i0_real	3.9130e+07
i0_real_error	4.3560e+05
rg_reciprocal	23.88 Å
i0_reciprocal	40880000.0000
total_estimate	0.6856
solution_quality	REASONABLE a REASONABLE solution
n_peaks	1
r_peak_primary	24.2 Å
skewness	0.365
kurtosis	-0.469
angular_range	— – 0.3350 Å⁻¹
current_alpha	2.0570
highest_alpha	4769000.0000
n_real_points	65
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.985; Stabil: 0.991; Sysdev: 0.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Papain-like protease nsp3
formula_weight	39803.1 kDa
ec_number	3.4.19.12,3.4.22.-
mutation	C111S
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	2724

MGSSHHHHHHSSGLVPRGSHMASMTGGQQMGRGSSLREVRTIKVFTTVDNINLHTQVVDMSMTYGQQFGPTYLDGADVTKIKPHNSHEGKTFYVLPNDDTLRVEAFEYYHTTDPSFLGRYMSALNHTKKWKYPQVNGLTSIKWADNNSYLATALLTLQQIELKFNPPALQDAYYRARAGEAANFCALILAYCNKTVGELGDVRETMSYLFQHANLDSCKRVLNVVCKTCGQQQTTLKGVEAVMYMGTLSYEQFKKGVQIPCTCGKQATKYLVQQESPFVMMSAPPAQYELKHGTFTCASEYTGNYQCGHYKHITSKETLYCIDGALLTKSSEYKGPITDVFYKENSYTTTIKHV

Source

organism	Severe acute respiratory syndrome coronavirus 2
ncbi_taxonomy_id	2697049
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	4-(piperazin-1-yl)benzonitrile
formula_weight	187.2 kDa
src_method	syn
entity_count	2

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	212

▶

6. Citations (1)

▶

length_a	83.230 Å
length_b	83.230 Å
length_c	133.190 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	6

space_group	P 32 2 1
int_tables_number	154
crystal_system	trigonal

resolution	2.120 Å
resolution_low	31.700 Å
r_factor	0.1844
r_work	0.1834
r_free	0.2050

fit	/app/data/saxs_computation/3q/13qm/13qm.fit
pddf	/app/data/pr_computation/3q/13qm/13qm.pr.out
profile	/app/data/saxs_computation/3q/13qm/13qm.dat
