CONSERVATION OF SOLVENT-BINDING SITES IN 10 CRYSTAL FORMS OF T4 LYSOZYME

Method: X-RAY DIFFRACTION D_max: 59.7 Å Quality: GOOD

SAXS Profile

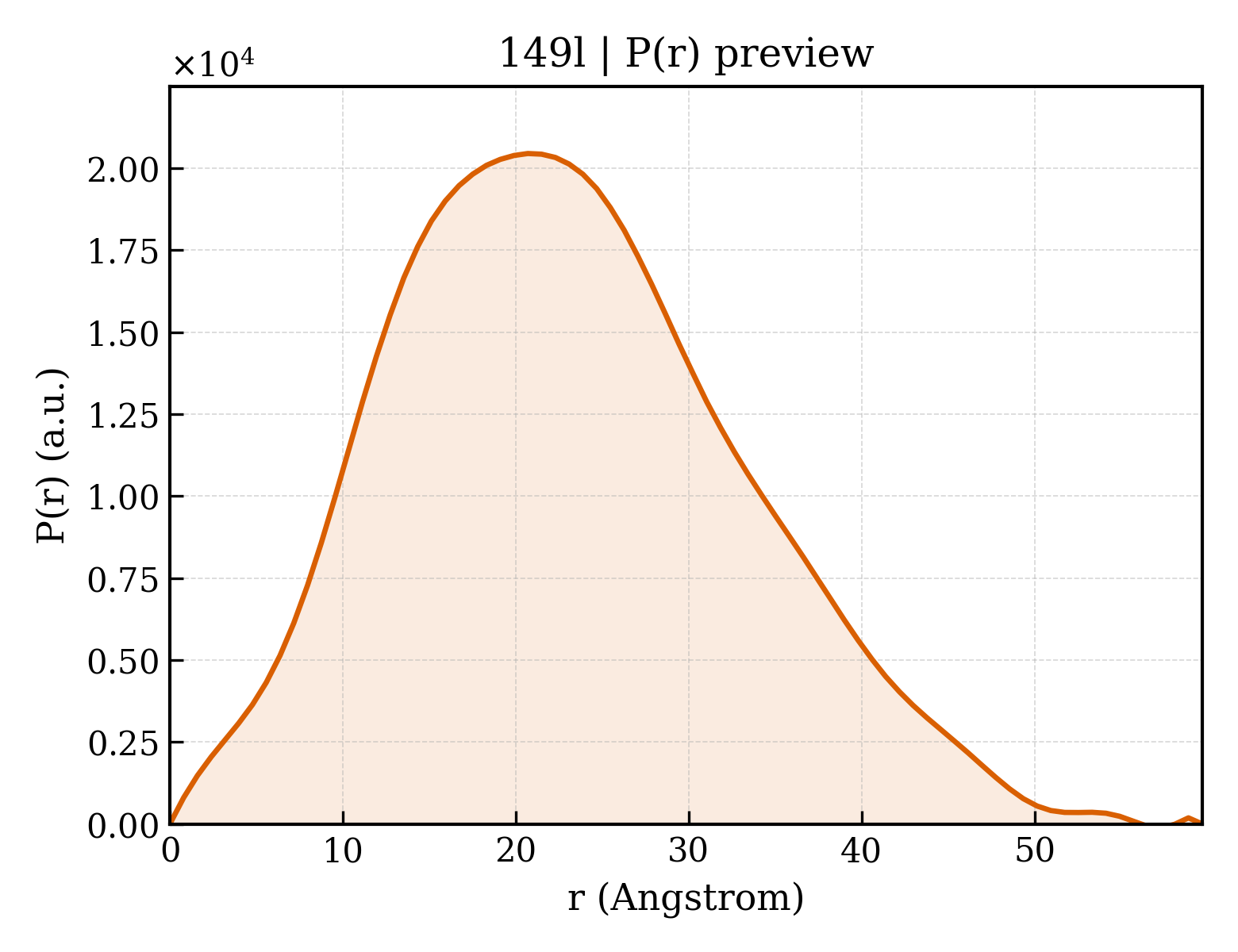

P(r) Distribution

▼

1. Structure Basics

entry_id	149l
deposition_date	1994-01-25
title	CONSERVATION OF SOLVENT-BINDING SITES IN 10 CRYSTAL FORMS OF T4 LYSOZYME
keywords	HYDROLASE(O-GLYCOSYL); HYDROLASE(O-GLYCOSYL)
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	17.69 Å
rg_electron	16.66 Å
i0	6613020.00
molecular_weight	18644.0 kDa
excluded_volume	23347 Å³
envelope_volume	26476 Å³
shell_volume	13918 Å³
envelope_diameter	59.0 Å
shell_rg	21.85 Å
envelope_rg	16.77 Å
shape_rg	16.62 Å
total_rg	17.66 Å
total_atoms	1309
n_residues	164
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	59.7 Å
rg_real	17.68 Å
rg_real_error	0.43 Å
i0_real	6.6130e+06
i0_real_error	8.0280e+04
rg_reciprocal	17.68 Å
i0_reciprocal	6613000.0000
total_estimate	0.7952
solution_quality	GOOD a GOOD solution
n_peaks	3
r_peak_primary	20.7 Å
skewness	0.339
kurtosis	-0.277
angular_range	— – 0.4500 Å⁻¹
current_alpha	0.0000
highest_alpha	1213000.0000
n_real_points	76
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.790; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.965; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (3)

▶

length_a	94.200 Å
length_b	35.800 Å
length_c	56.600 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	2.600 Å
resolution_low	10.000 Å
r_factor	0.1920
r_work	—
r_free	—

description	T4 LYSOZYME
formula_weight	18662.5 kDa
ec_number	3.2.1.17
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	1347

CONSERVATION OF SOLVENT-BINDING SITES IN 10 CRYSTAL FORMS OF T4 LYSOZYME

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (3)

7. Files & Curves (10)

Files (7)

Curves (3)

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	38

fit	/app/data/saxs_computation/49/149l/149l.fit
pddf	/app/data/pr_computation/49/149l/149l.pr.out
profile	/app/data/saxs_computation/49/149l/149l.dat

organism	Enterobacteria phage T4
ncbi_taxonomy_id	10665
