2rh1

High resolution crystal structure of human B2-adrenergic G protein-coupled receptor.

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

beta-2-adrenergic receptor/T4-lysozyme chimera

Enterobacteria phage T4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1 其他Polymer 1	alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose × 1 SULFATE ION × 6 (2S)-1-(9H-Carbazol-4-yloxy)-3-(isopropylamino)propan-2-ol × 1 1,4-BUTANEDIOL × 2 ACETAMIDE × 1 CHOLESTEROL × 3 PALMITIC ACID × 1 DODECAETHYLENE GLYCOL × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LYS_BPT4
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 238–397； UniProt 2–161

beta-2-adrenergic receptor/T4-lysozyme chimera

Enterobacteria phage T4

UniProt P07550

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1 其他Polymer 1	alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose × 1 SULFATE ION × 6 (2S)-1-(9H-Carbazol-4-yloxy)-3-(isopropylamino)propan-2-ol × 1 1,4-BUTANEDIOL × 2 ACETAMIDE × 1 CHOLESTEROL × 3 PALMITIC ACID × 1 DODECAETHYLENE GLYCOL × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ADRB2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 8–237； UniProt 1–230 Author chain A； PDBConstruct 398–500； UniProt 263–365

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2rh1
Deposition date deposition_date	2007-10-05
Structure title title	High resolution crystal structure of human B2-adrenergic G protein-coupled receptor.
Keywords keywords	;GPCR, 7TM, adrenergic, fusion, lipidic cubic phase, lipidic, mesophase, cholesterol, membrane protein, MEMBRANE PROTEIN - HYDROLASE COMPLEX, Structural Genomics, PSI-2, Protein Structure Initiative, Accelerated Technologies Center for Gene to 3D Structure, ATCG3D, GPCR Network ;; MEMBRANE PROTEIN / HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2rh1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2rh1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

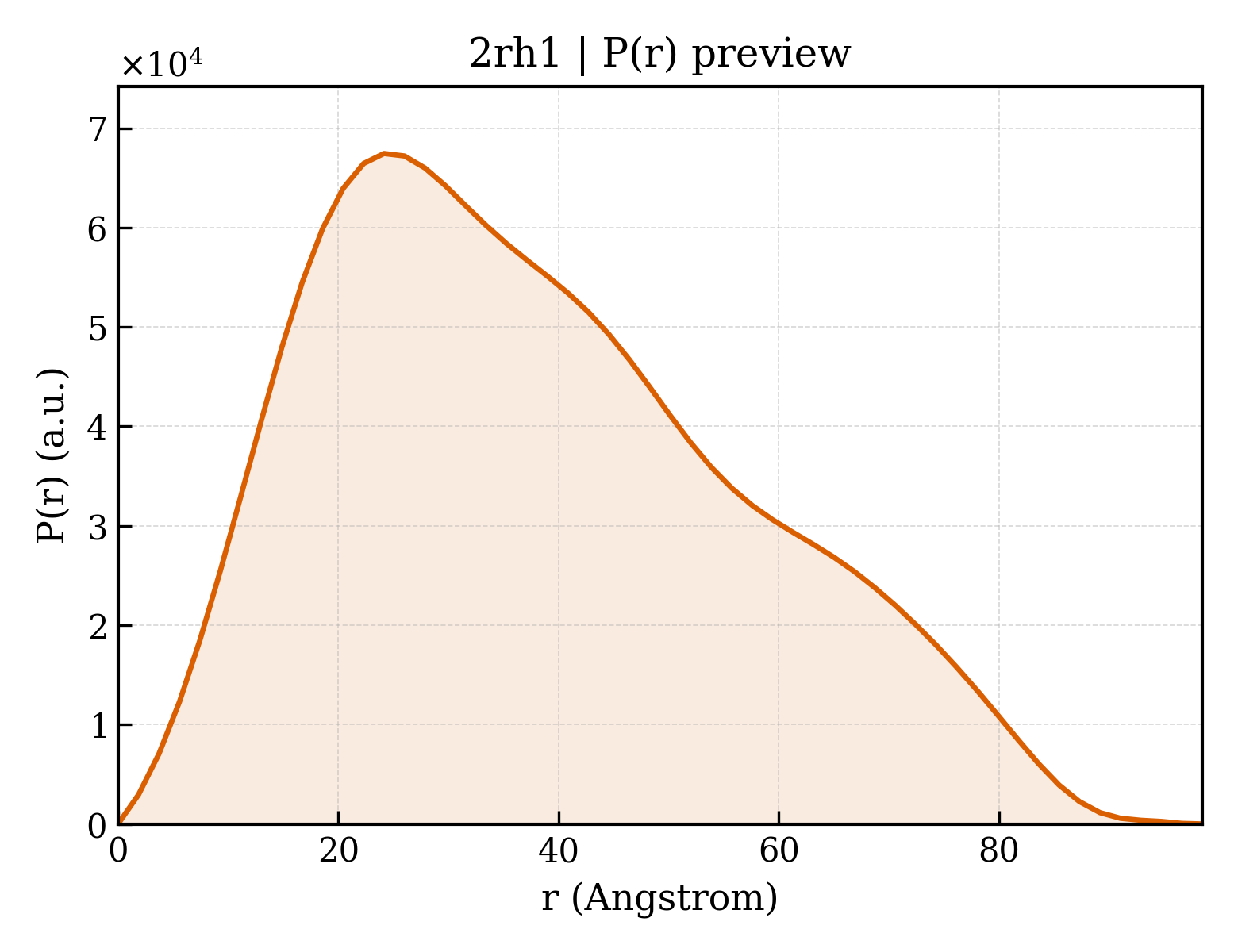

2rh1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.81 Å
Rg (electron density)	29.05 Å
Total Rg	29.63 Å
Atom count	3756
Residues	442
Excluded volume	68787 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2rh1__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Description description	beta-2-adrenergic receptor/T4-lysozyme chimera
Molecular weight formula_weight	56601.4 kDa
Mutation mutation	N187E, C54T, C97A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3804

DYKDDDAMGQPGNGSAFLLAPNRSHAPDHDVTQQRDEVWVVGMGIVMSLIVLAIVFGNVLVITAIAKFERLQTVTNYFITSLACADLVMGLAVVPFGAAHILMKMWTFGNFWCEFWTSIDVLCVTASIETLCVIAVDRYFAITSPFKYQSLLTKNKARVIILMVWIVSGLTSFLPIQMHWYRATHQEAINCYAEETCCDFFTNQAYAIASSIVSFYVPLVIMVFVYSRVFQEAKRQLNIFEMLRIDEGLRLKIYKDTEGYYTIGIGHLLTKSPSLNAAKSELDKAIGRNTNGVITKDEAEKLFNQDVDAAVRGILRNAKLKPVYDSLDAVRRAALINMVFQMGETGVAGFTNSLRMLQQKRWDEAAVNLAKSRWYNQTPNRAKRVITTFRTGTWDAYKFCLKEHKALKTLGIIMGTFTLCWLPFFIVNIVHVIQDNLIRKEVYILLNWIGYVNSGFNPLIYCRSPDFRIAFQELLCLRRSSLKAYGNGYSSNGNTGEQSG

Source Source

Source organism organism	Enterobacteria phage T4
Common name common_name	human,
NCBI taxonomy ID ncbi_taxonomy_id	10665
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 branched

Description description	alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose
Molecular weight formula_weight	342.3 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 non-polymer

Description description	(2S)-1-(9H-Carbazol-4-yloxy)-3-(isopropylamino)propan-2-ol
Molecular weight formula_weight	298.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	1,4-BUTANEDIOL
Molecular weight formula_weight	90.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	ACETAMIDE
Molecular weight formula_weight	59.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	CHOLESTEROL
Molecular weight formula_weight	386.7 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 8 Entity 8 non-polymer

Description description	PALMITIC ACID
Molecular weight formula_weight	256.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 non-polymer

Description description	DODECAETHYLENE GLYCOL
Molecular weight formula_weight	546.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 10 Entity 10 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	48

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2rh1a1
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.13 — Class A G protein-coupled receptor (GPCR)-like
Superfamily Superfamily superfamily	f.13.1 — Class A G protein-coupled receptor (GPCR)-like
Family Family family	f.13.1.3 — Amine receptor-like

Domain ID domain_id	d2rh1a2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.2 — Lysozyme-like
Superfamily Superfamily superfamily	d.2.1 — Lysozyme-like
Family Family family	d.2.1.3 — Phage lysozyme

CATH v4.4 (2 domains)

Domain ID domain_id	2rh1A01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1070 — Rhopdopsin 7-helix transmembrane proteins
Homologous superfamily homologous superfamily	10 — Rhodopsin 7-helix transmembrane proteins

Domain ID domain_id	2rh1A02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	530 — Lysozyme
Homologous superfamily homologous superfamily	40 —

▶

Unit-cell length a length_a	106.318 Å
Unit-cell length b length_b	169.240 Å
Unit-cell length c length_c	40.154 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	105.62 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	19.950 Å
R factor r_factor	0.1980
R_work r_work	0.1960
R_free r_free	0.2320
