172l
PROTEIN FLEXIBILITY AND ADAPTABILITY SEEN IN 25 CRYSTAL FORMS OF T4 LYSOZYME

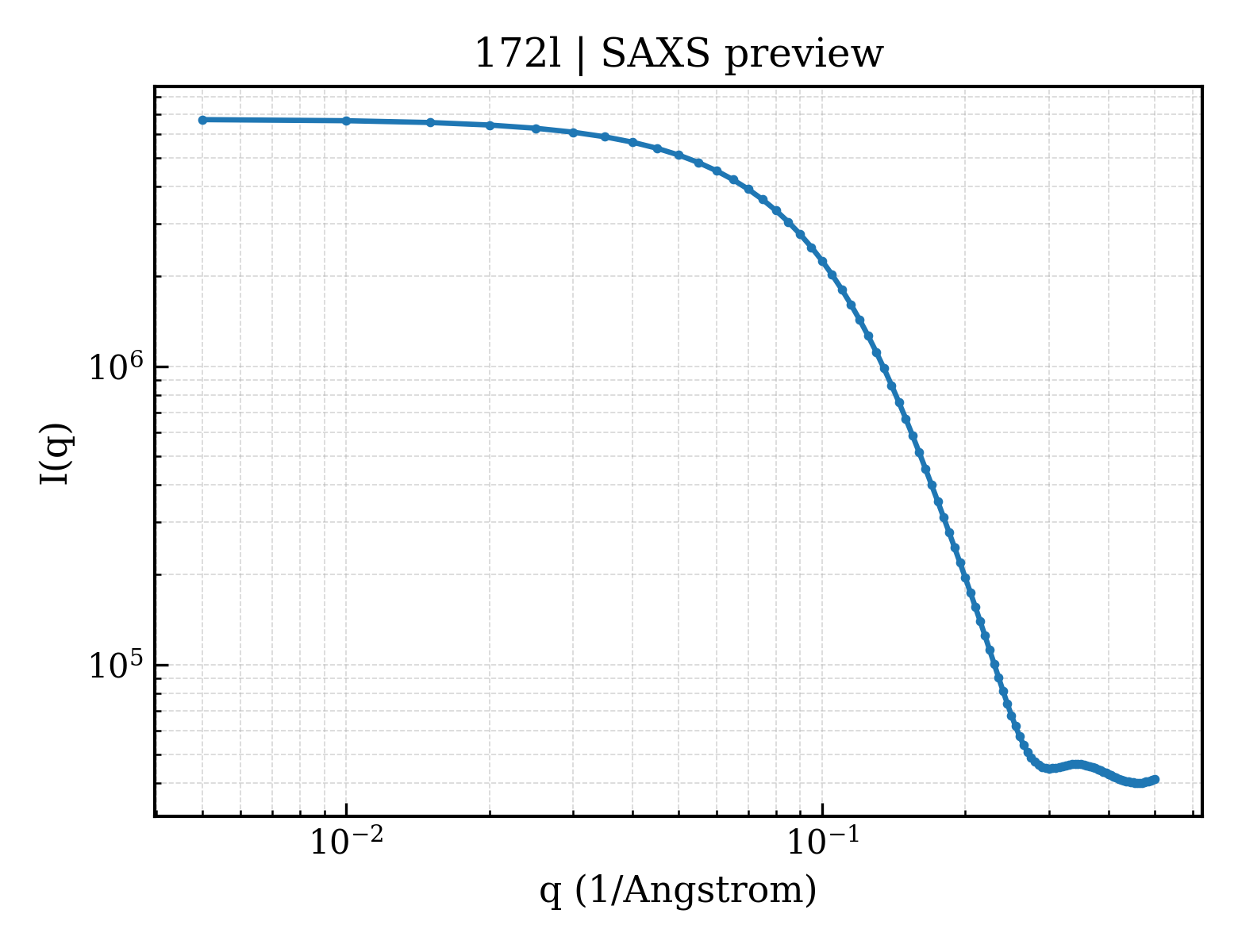

SAXS Profile

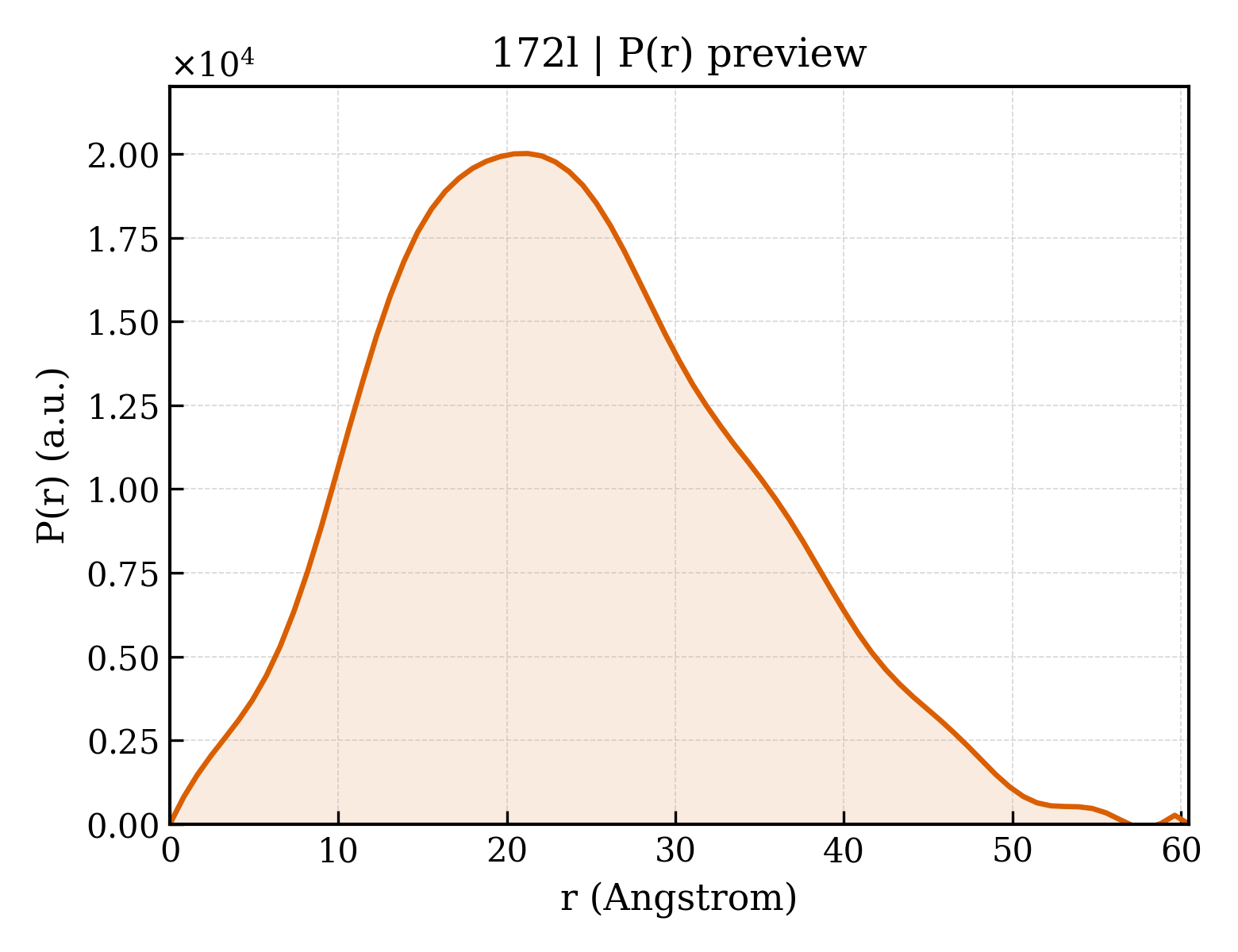

P(r) Distribution
1. Structure Basics
| entry_id | 172l |
| deposition_date | 1995-03-24 |
| title | PROTEIN FLEXIBILITY AND ADAPTABILITY SEEN IN 25 CRYSTAL FORMS OF T4 LYSOZYME |
| keywords | HYDROLASE (O-GLYCOSYL); HYDROLASE (O-GLYCOSYL) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.20 Å |
| rg_electron | 17.21 Å |
| i0 | 6730630.00 |
| molecular_weight | 18695.0 kDa |
| excluded_volume | 23364 ų |
| envelope_volume | 27398 ų |
| shell_volume | 14044 ų |
| envelope_diameter | 60.4 Å |
| shell_rg | 22.35 Å |
| envelope_rg | 17.27 Å |
| shape_rg | 17.17 Å |
| total_rg | 18.20 Å |
| total_atoms | 1310 |
| n_residues | 164 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 60.5 Å |
| rg_real | 18.20 Å |
| rg_real_error | 0.49 Å |
| i0_real | 6.7310e+06 |
| i0_real_error | 9.0380e+04 |
| rg_reciprocal | 18.20 Å |
| i0_reciprocal | 6731000.0000 |
| total_estimate | 0.8038 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 21.2 Å |
| skewness | 0.358 |
| kurtosis | -0.311 |
| angular_range | — – 0.4350 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1299000.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.820; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.000 |
