Dark structure of beta-2 Adrenergic receptor with photoazolol in Dark state recorded at LCLS

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Beta-2 adrenergic receptor,Endolysin

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1	SULFATE ION × 5 CHOLESTEROL × 2 PALMITIC ACID × 1 DODECAETHYLENE GLYCOL × 3 ~{N}-[4-[(~{E})-[2-[(2~{S})-2-oxidanyl-3-(propan-2-ylamino)propoxy]phenyl]diazenyl]phenyl]ethanamide × 1 (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 7 1,2-ETHANEDIOL × 1 GLYCEROL × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ENLYS_BPT4
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 203–363； UniProt 2–162

Beta-2 adrenergic receptor,Endolysin

Homo sapiens

UniProt P07550

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1	SULFATE ION × 5 CHOLESTEROL × 2 PALMITIC ACID × 1 DODECAETHYLENE GLYCOL × 3 ~{N}-[4-[(~{E})-[2-[(2~{S})-2-oxidanyl-3-(propan-2-ylamino)propoxy]phenyl]diazenyl]phenyl]ethanamide × 1 (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 7 1,2-ETHANEDIOL × 1 GLYCEROL × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ADRB2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–202； UniProt 29–230 Author chain A； PDBConstruct 364–442； UniProt 264–342

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9rkh
Deposition date deposition_date	2025-06-13
Structure title title	Dark structure of beta-2 Adrenergic receptor with photoazolol in Dark state recorded at LCLS
Keywords keywords	;GPCR, 7TM, Beta 2, ADRENERGIC, LIPIDIC CUBIC PHASE, LIPIDIC, MEMBRANE PROTEIN, PHOTO-SWITCHABLE COMPOUNDS, PHOTOAZOLOL-1, TIME RESOLVE CRYSTALLOGRAPHY ;; MEMBRANE PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9rkh__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9rkh__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

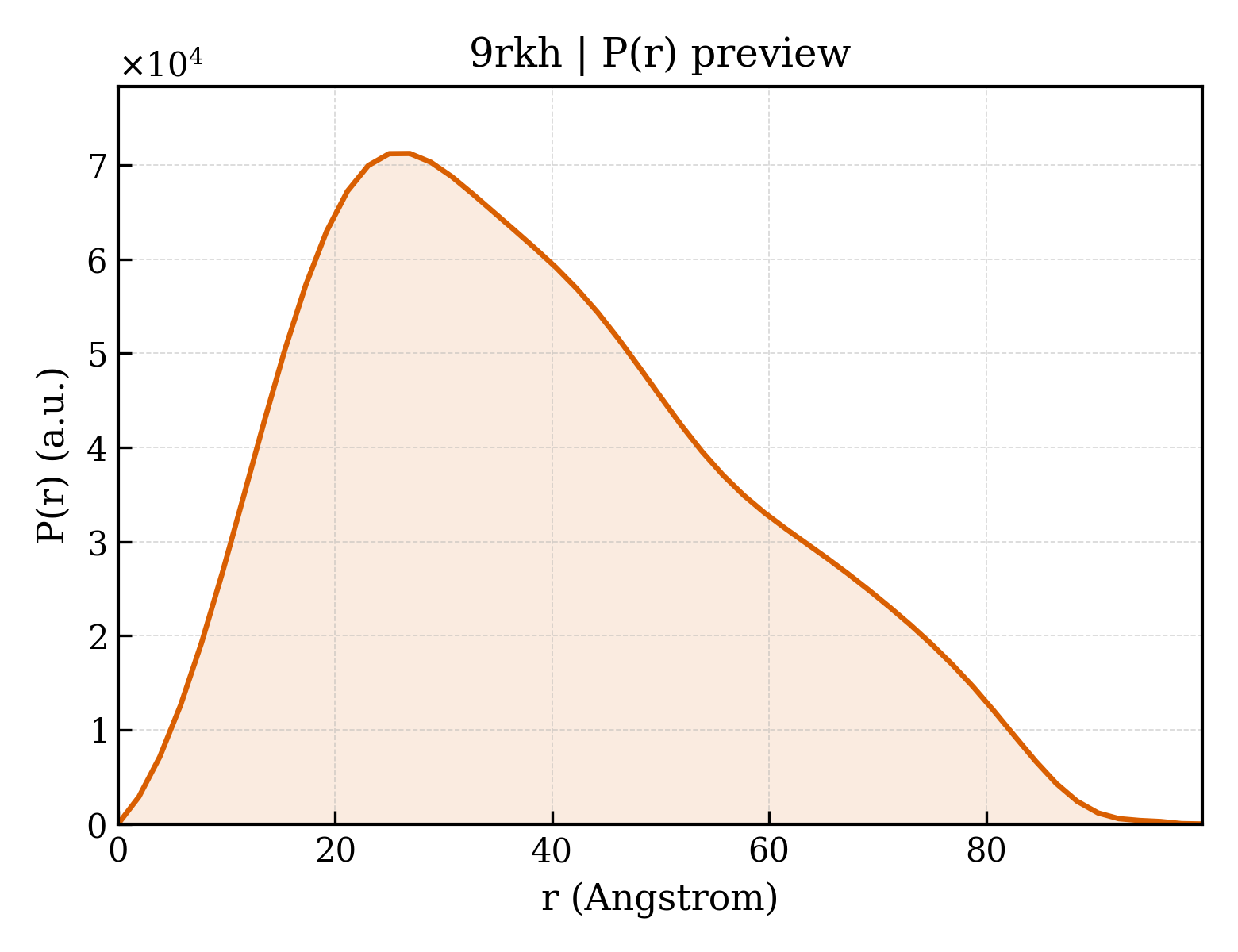

9rkh__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.39 Å
Rg (electron density)	29.39 Å
Total Rg	30.00 Å
Atom count	7596
Residues	441
Excluded volume	71263 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9rkh__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Description description	Beta-2 adrenergic receptor,Endolysin
Molecular weight formula_weight	50528.1 kDa
EC 编号 ec_number	3.2.1.17
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	7649

DEVWVVGMGIVMSLIVLAIVFGNVLVITAIAKFERLQTVTNYFITSLACADLVMGLAVVPFGAAHILMKMWTFGNFWCEFWTSIDVLCVTASIWTLCVIAVDRYFAITSPFKYQSLLTKNKARVIILMVWIVSGLTSFLPIQMHWYRATHQEAINCYAEETCCDFFTNQAYAIASSIVSFYVPLVIMVFVYSRVFQEAKRQLNIFEMLRIDEGLRLKIYKDTEGYYTIGIGHLLTKSPSLNAAKSELDKAIGRNTNGVITKDEAEKLFNQDVDAAVRGILRNAKLKPVYDSLDAVRRAALINMVFQMGETGVAGFTNSLRMLQQKRWDEAAVNLAKSRWYNQTPNRAKRVITTFRTGTWDAYKFCLKEHKALKTLGIIMGTFTLCWLPFFIVNIVHVIQDNLIRKEVYILLNWIGYVNSGFNPLIYCRSPDFRIAFQELLCL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 non-polymer

Description description	CHOLESTEROL
Molecular weight formula_weight	386.7 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	PALMITIC ACID
Molecular weight formula_weight	256.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	DODECAETHYLENE GLYCOL
Molecular weight formula_weight	546.6 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 6 Entity 6 non-polymer

Description description	~{N}-[4-[(~{E})-[2-[(2~{S})-2-oxidanyl-3-(propan-2-ylamino)propoxy]phenyl]diazenyl]phenyl]ethanamide
Molecular weight formula_weight	370.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	(2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate
Molecular weight formula_weight	356.5 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 8 Entity 8 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 10 Entity 10 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	26

▶

Unit-cell length a length_a	111.940 Å
Unit-cell length b length_b	172.230 Å
Unit-cell length c length_c	41.230 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	106.20 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	28.330 Å
R factor r_factor	0.1950
R_work r_work	0.1931
R_free r_free	0.2183
