1c6m
T4 LYSOZYME MUTANT C54T/C97A/L99A/F153A IN THE PRESENCE OF 8 ATM KRYPTON
SAXS Profile

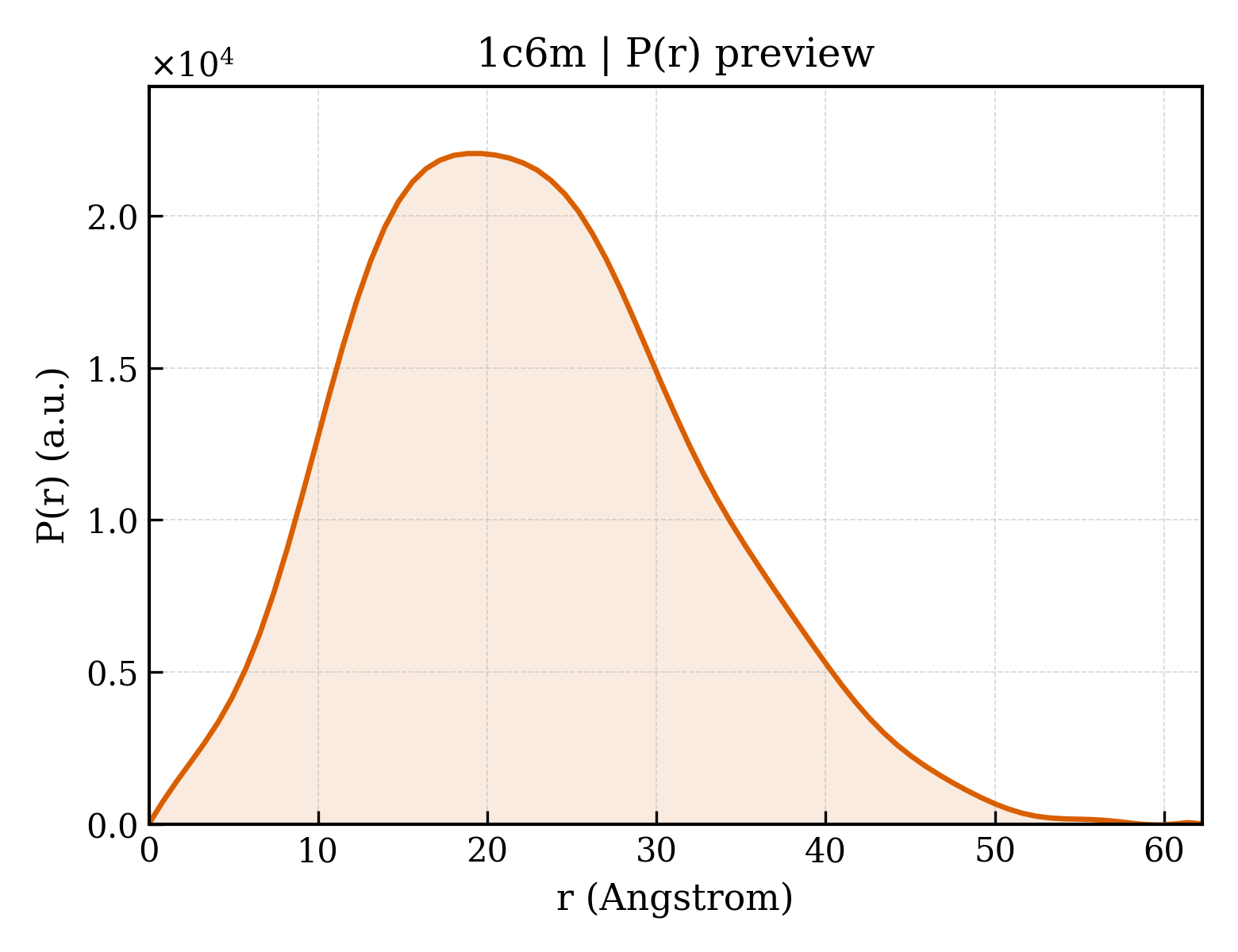

P(r) Distribution
1. Structure Basics
| entry_id | 1c6m |
| deposition_date | 1999-12-21 |
| title | T4 LYSOZYME MUTANT C54T/C97A/L99A/F153A IN THE PRESENCE OF 8 ATM KRYPTON |
| keywords | HYDROLASE (O-GLYCOSYL), T4 LYSOZYME, NOBLE GAS BINDING, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.29 Å |
| rg_electron | 16.46 Å |
| i0 | 7107780.00 |
| molecular_weight | 18809.0 kDa |
| excluded_volume | 23210 ų |
| envelope_volume | 26654 ų |
| shell_volume | 14108 ų |
| envelope_diameter | 59.0 Å |
| shell_rg | 21.82 Å |
| envelope_rg | 16.60 Å |
| shape_rg | 16.47 Å |
| total_rg | 17.30 Å |
| total_atoms | 1297 |
| n_residues | 162 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 62.3 Å |
| rg_real | 17.28 Å |
| rg_real_error | 0.47 Å |
| i0_real | 7.1080e+06 |
| i0_real_error | 9.3280e+04 |
| rg_reciprocal | 17.29 Å |
| i0_reciprocal | 7108000.0000 |
| total_estimate | 0.7615 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 61.4 Å |
| skewness | 0.375 |
| kurtosis | -0.225 |
| angular_range | — – 0.4600 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2565000.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.671; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.883; Smooth: 0.000 |
