SAXSdb — 5jqh

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Endolysin,Beta-2 adrenergic receptor

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 2	Nanobody60, Nb60 × 1 (2S)-1-(9H-Carbazol-4-yloxy)-3-(isopropylamino)propan-2-ol × 1 CHOLESTEROL × 1	Consistent with protein count
2	Insufficient information	Heteromer	Protein 2	Nanobody60, Nb60 × 1 (2S)-1-(9H-Carbazol-4-yloxy)-3-(isopropylamino)propan-2-ol × 1 CHOLESTEROL × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ENLYS_BPT4
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 16–175； UniProt 2–161 Author chain B； PDBConstruct 16–175； UniProt 2–161

Endolysin,Beta-2 adrenergic receptor

Homo sapiens

UniProt P07550

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 2	Nanobody60, Nb60 × 1 (2S)-1-(9H-Carbazol-4-yloxy)-3-(isopropylamino)propan-2-ol × 1 CHOLESTEROL × 1	Consistent with protein count
2	Insufficient information	Heteromer	Protein 2	Nanobody60, Nb60 × 1 (2S)-1-(9H-Carbazol-4-yloxy)-3-(isopropylamino)propan-2-ol × 1 CHOLESTEROL × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ADRB2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 179–471； UniProt 30–348 Author chain B； PDBConstruct 179–471； UniProt 30–348

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5jqh
Deposition date deposition_date	2016-05-05
Structure title title	Structure of beta2 adrenoceptor bound to carazolol and inactive-state stabilizing nanobody, Nb60
Keywords keywords	GPCR, Signaling, Nanobody, Allostery, SIGNALING PROTEIN, HYDROLASE, hydrolase-inhibitor complex; signaling protein, hydrolase/inhibitor
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5jqh__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

5jqh__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

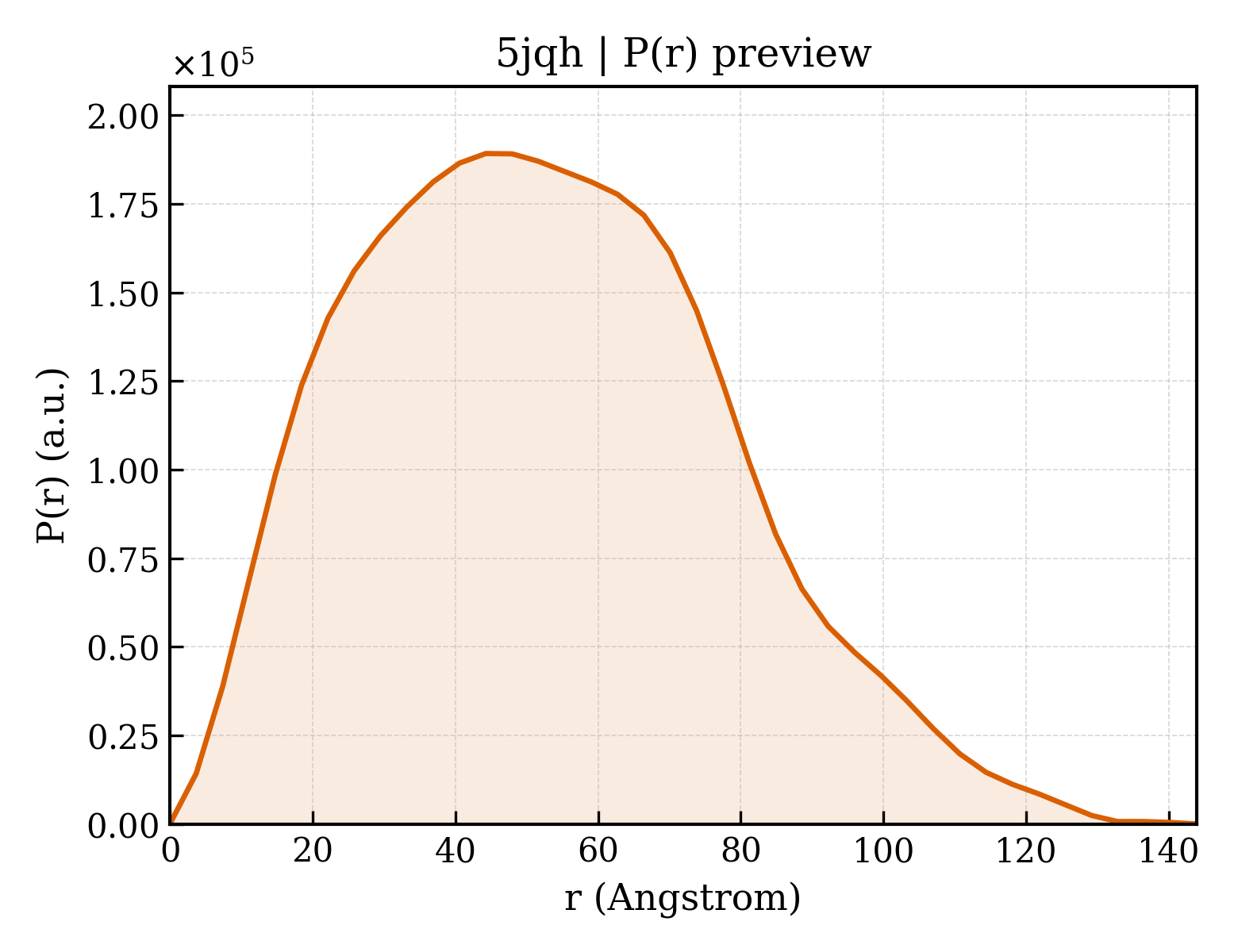

5jqh__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.18 Å
Rg (electron density)	33.58 Å
Total Rg	33.49 Å
Atom count	3824
Residues	511
Excluded volume	68666 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5jqh__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`5jqh__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Endolysin,Beta-2 adrenergic receptor
Molecular weight formula_weight	53699.3 kDa
EC 编号 ec_number	3.2.1.17
Mutation mutation	C919T, C962A, M1096T, M1098T, N1187E, C1265A,C919T, C962A, M1096T, M1098T, N1187E, C1265A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	7701

DYKDDDDAENLYFQGNIFEMLRIDEGLRLKIYKDTEGYYTIGIGHLLTKSPSLNAAKSELDKAIGRNTNGVITKDEAEKLFNQDVDAAVRGILRNAKLKPVYDSLDAVRRAALINMVFQMGETGVAGFTNSLRMLQQKRWDEAAVNLAKSRWYNQTPNRAKRVITTFRTGTWDAYAADEVWVVGMGIVMSLIVLAIVFGNVLVITAIAKFERLQTVTNYFITSLACADLVMGLAVVPFGAAHILTKTWTFGNFWCEFWTSIDVLCVTASIETLCVIAVDRYFAITSPFKYQSLLTKNKARVIILMVWIVSGLTSFLPIQMHWYRATHQEAINCYAEETCCDFFTNQAYAIASSIVSFYVPLVIMVFVYSRVFQEAKRQLQKIDIDKFALKEHKALKTLGIIMGTFTLCWLPFFIVNIVHVIQDNLIRKEVYILLNWIGYVNSGFNPLIYCRSPDFRIAFQELLCLRRSSLK

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Nanobody60, Nb60
Molecular weight formula_weight	13531.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,C

QVQLQESGGGLVQAGGSLRLSCAASGSIFSLNDMGWYRQAPGKLRELVAAITSGGSTKYADSVKGRFTISRDNAKNTVYLQMNSLKAEDTAVYYCNAKVAGTFSIYDYWGQGTQVTVSSHHHHHH

Source Source

Source organism organism	Lama glama
NCBI taxonomy ID ncbi_taxonomy_id	9844
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	(2S)-1-(9H-Carbazol-4-yloxy)-3-(isopropylamino)propan-2-ol
Molecular weight formula_weight	298.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	CHOLESTEROL
Molecular weight formula_weight	386.7 kDa
Source method src_method	syn
Copy count entity_count	2

▼

6. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	5jqhB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	530 — Lysozyme
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	5jqhB02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1070 — Rhopdopsin 7-helix transmembrane proteins
Homologous superfamily homologous superfamily	10 — Rhodopsin 7-helix transmembrane proteins

Domain ID domain_id	5jqhC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5jqhD00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

Unit-cell length a length_a	43.924 Å
Unit-cell length b length_b	164.486 Å
Unit-cell length c length_c	218.749 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	3.200 Å
Low-resolution limit resolution_low	32.867 Å
R factor r_factor	0.2497
R_work r_work	0.2465
R_free r_free	0.2903

Structure of beta2 adrenoceptor bound to carazolol and inactive-state stabilizing nanobody, Nb60
