SAXSdb — 6ffi

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Metabotropic glutamate receptor 5,Endolysin,Metabotropic glutamate receptor 5

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1	OLEIC ACID × 7 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 2-[2-(3-methoxyphenyl)ethynyl]-6-methyl-pyridine × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ENLYS_BPT4
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 114–274； UniProt 2–162

Metabotropic glutamate receptor 5,Endolysin,Metabotropic glutamate receptor 5

Homo sapiens

UniProt P41594

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1	OLEIC ACID × 7 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 2-[2-(3-methoxyphenyl)ethynyl]-6-methyl-pyridine × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GRM5_HUMAN
Isoform	P41594-2
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–113； UniProt 569–678 Author chain A； PDBConstruct 275–431； UniProt 680–836

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6ffi
Deposition date deposition_date	2018-01-08
Structure title title	Crystal Structure of mGluR5 in complex with MMPEP at 2.2 A
Keywords keywords	7TM, RECEPTOR, GPCR, MEMBRANE-PROTEIN, SIGNALING PROTEIN, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6ffi__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6ffi__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

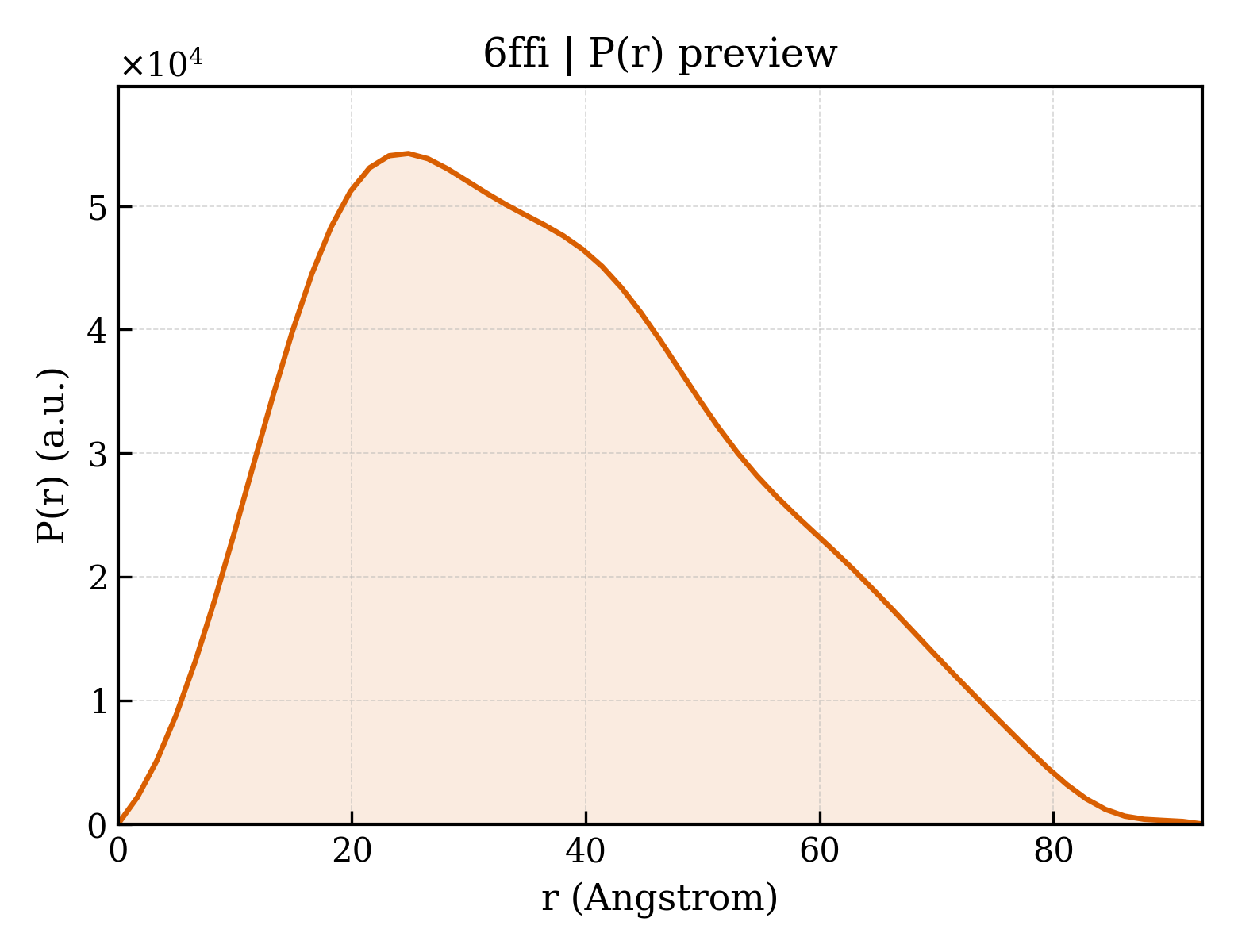

6ffi__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.33 Å
Rg (electron density)	27.86 Å
Total Rg	28.55 Å
Atom count	3344
Residues	409
Excluded volume	61571 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6ffi__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Metabotropic glutamate receptor 5,Endolysin,Metabotropic glutamate receptor 5
Molecular weight formula_weight	49859.6 kDa
EC 编号 ec_number	3.2.1.17
Mutation mutation	;E579A N667Y I669A G675M T742A S753A,E579A N667Y I669A G675M T742A S753A,E579A N667Y I669A G675M T742A S753A,E579A N667Y I669A G675M T742A S753A,E579A N667Y I669A G675M T742A S753A,E579A N667Y I669A G675M T742A S753A,E579A N667Y I669A G675M T742A S753A,E579A N667Y I669A G675M T742A S753A,E579A N667Y I669A G675M T742A S753A ;
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3492

AASPVQYLRWGDPAPIAAVVFACLGLLATLFVTVVFIIYRDTPVVKSSSRELCYIILAGICLGYLCTFCLIAKPKQIYCYLQRIGIGLSPAMSYSALVTKTYRAARILAMSKKNIFEMLRIDEGLRLKIYKDTEGYYTIGIGHLLTKSPSLNAAKSELDKAIGRNTNGVITKDEAEKLFNQDVDAAVRGILRNAKLKPVYDSLDAVRRAALINMVFQMGETGVAGFTNSLRMLQQKRWDEAAVNLAKSRWYNQTPNRAKRVITTFRTGTWDAYKICTKKPRFMSACAQLVIAFILICIQLGIIVALFIMEPPDIMHDYPSIREVYLICNTTNLGVVAPLGYNGLLILACTFYAFKTRNVPANFNEAKYIAFTMYTTCIIWLAFVPIYFGSNYKIITMCFSVSLSATVALGCMFVPKVYIILAKPERNVRSAAAAHHHHHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 non-polymer

Description description	OLEIC ACID
Molecular weight formula_weight	282.5 kDa
EC 编号 ec_number	3.2.1.17
Mutation mutation	C54T C97A
Source method src_method	man
Copy count entity_count	7

Source Source

Source organism organism	Enterobacteria phage T4
NCBI taxonomy ID ncbi_taxonomy_id	10665
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 non-polymer

Description description	2-(N-MORPHOLINO)-ETHANESULFONIC ACID
Molecular weight formula_weight	195.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	2-[2-(3-methoxyphenyl)ethynyl]-6-methyl-pyridine
Molecular weight formula_weight	223.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	142

▶

Unit-cell length a length_a	142.822 Å
Unit-cell length b length_b	43.424 Å
Unit-cell length c length_c	81.976 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	98.93 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	19.991 Å
R factor r_factor	0.2284
R_work r_work	0.2264
R_free r_free	0.2693
