1c66
T4 LYSOZYME MUTANT C54T/C97A/L121A/L133A IN THE PRESENCE OF 8 ATM ARGON

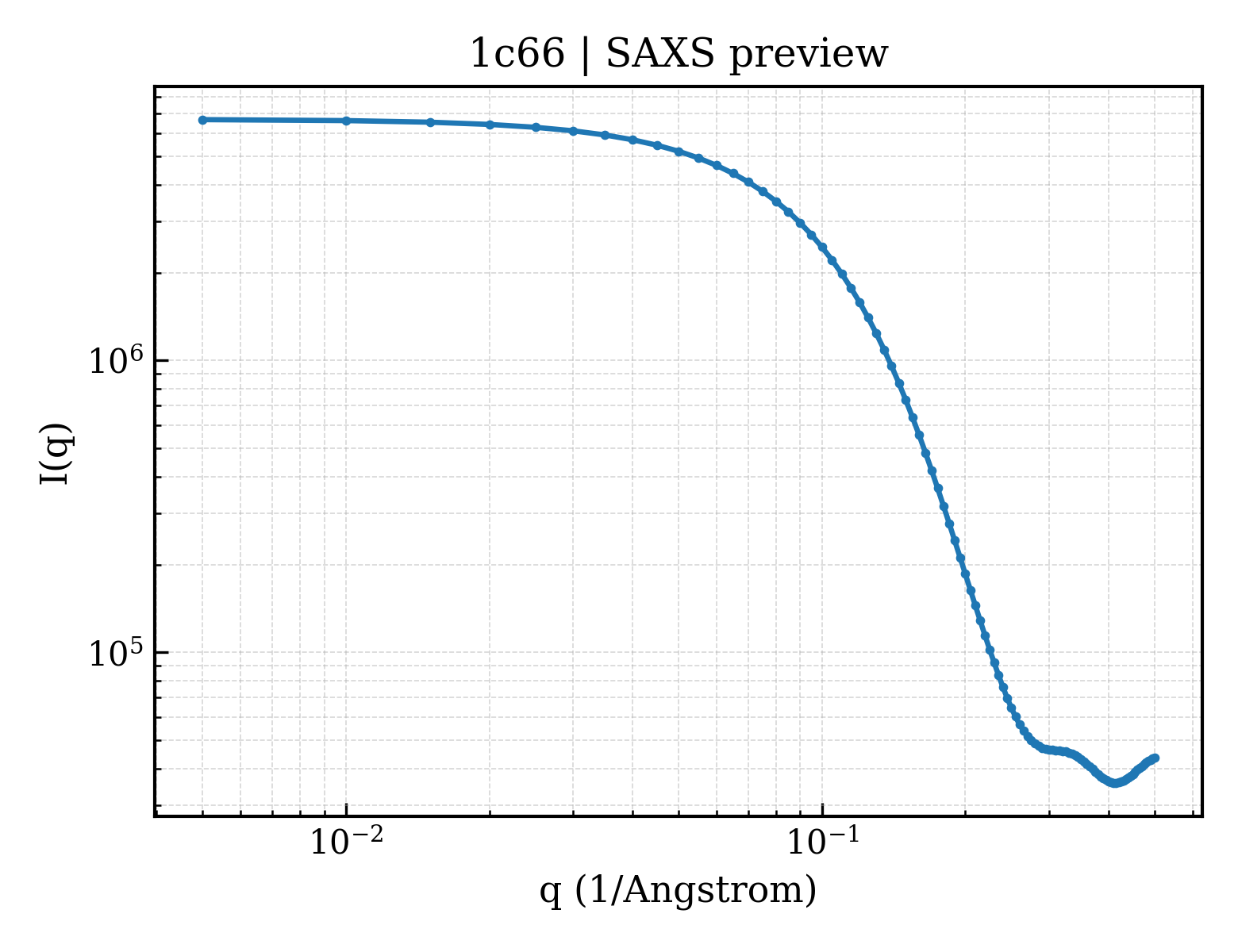

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1c66 |
| deposition_date | 1999-12-21 |
| title | T4 LYSOZYME MUTANT C54T/C97A/L121A/L133A IN THE PRESENCE OF 8 ATM ARGON |
| keywords | HYDROLASE (O-GLYCOSYL), T4 LYSOZYME, NOBLE GAS BINDING, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.39 Å |
| rg_electron | 16.47 Å |
| i0 | 6697300.00 |
| molecular_weight | 18588.0 kDa |
| excluded_volume | 23167 ų |
| envelope_volume | 26440 ų |
| shell_volume | 14033 ų |
| envelope_diameter | 57.2 Å |
| shell_rg | 21.72 Å |
| envelope_rg | 16.52 Å |
| shape_rg | 16.45 Å |
| total_rg | 17.41 Å |
| total_atoms | 1298 |
| n_residues | 162 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 57.9 Å |
| rg_real | 17.37 Å |
| rg_real_error | 0.37 Å |
| i0_real | 6.6970e+06 |
| i0_real_error | 7.3320e+04 |
| rg_reciprocal | 17.38 Å |
| i0_reciprocal | 6697000.0000 |
| total_estimate | 0.7994 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 51.8 Å |
| skewness | 0.341 |
| kurtosis | -0.264 |
| angular_range | — – 0.4600 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1411000.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.803; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.000 |
