178l
Protein flexibility and adaptability seen in 25 crystal forms of T4 LYSOZYME

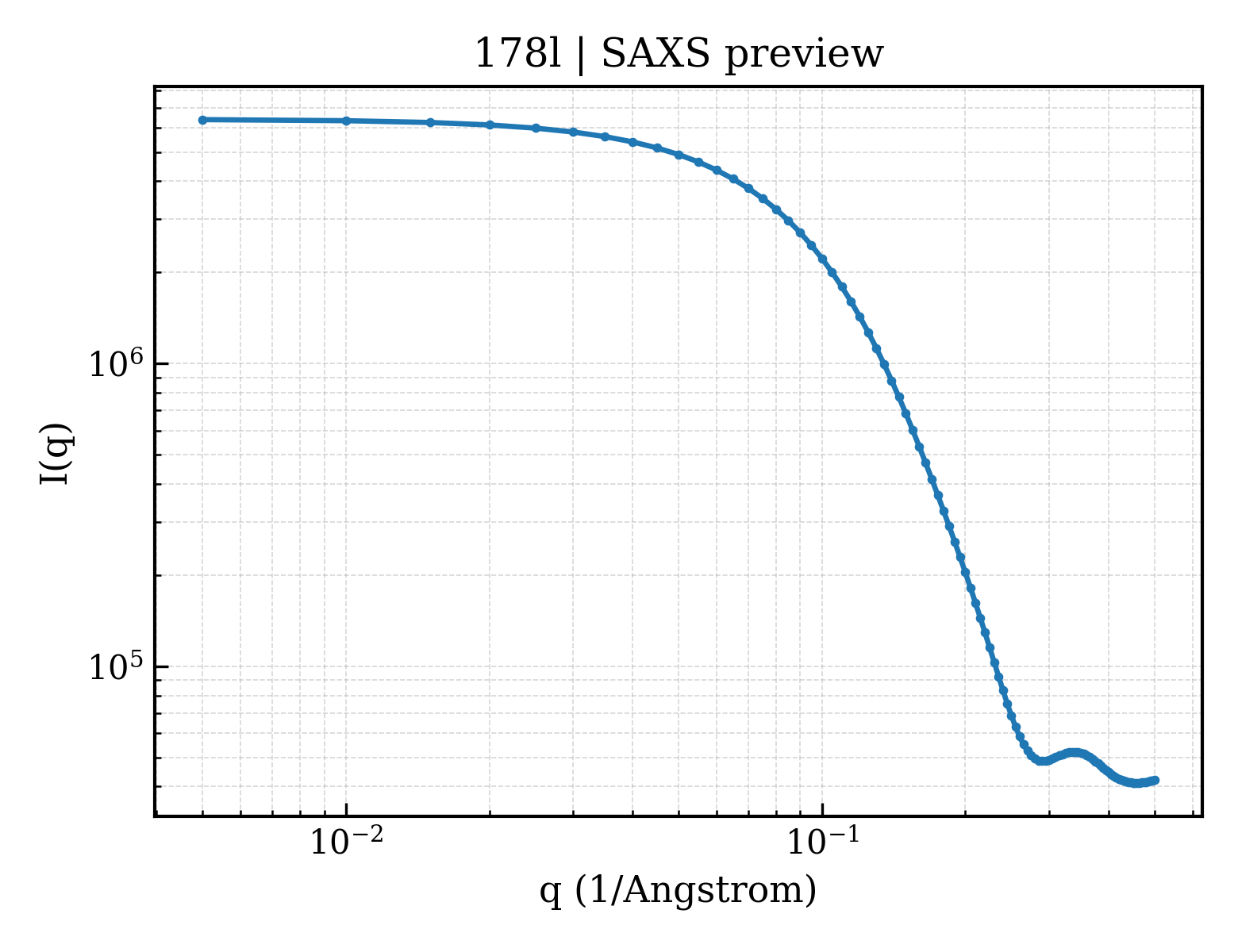

SAXS Profile

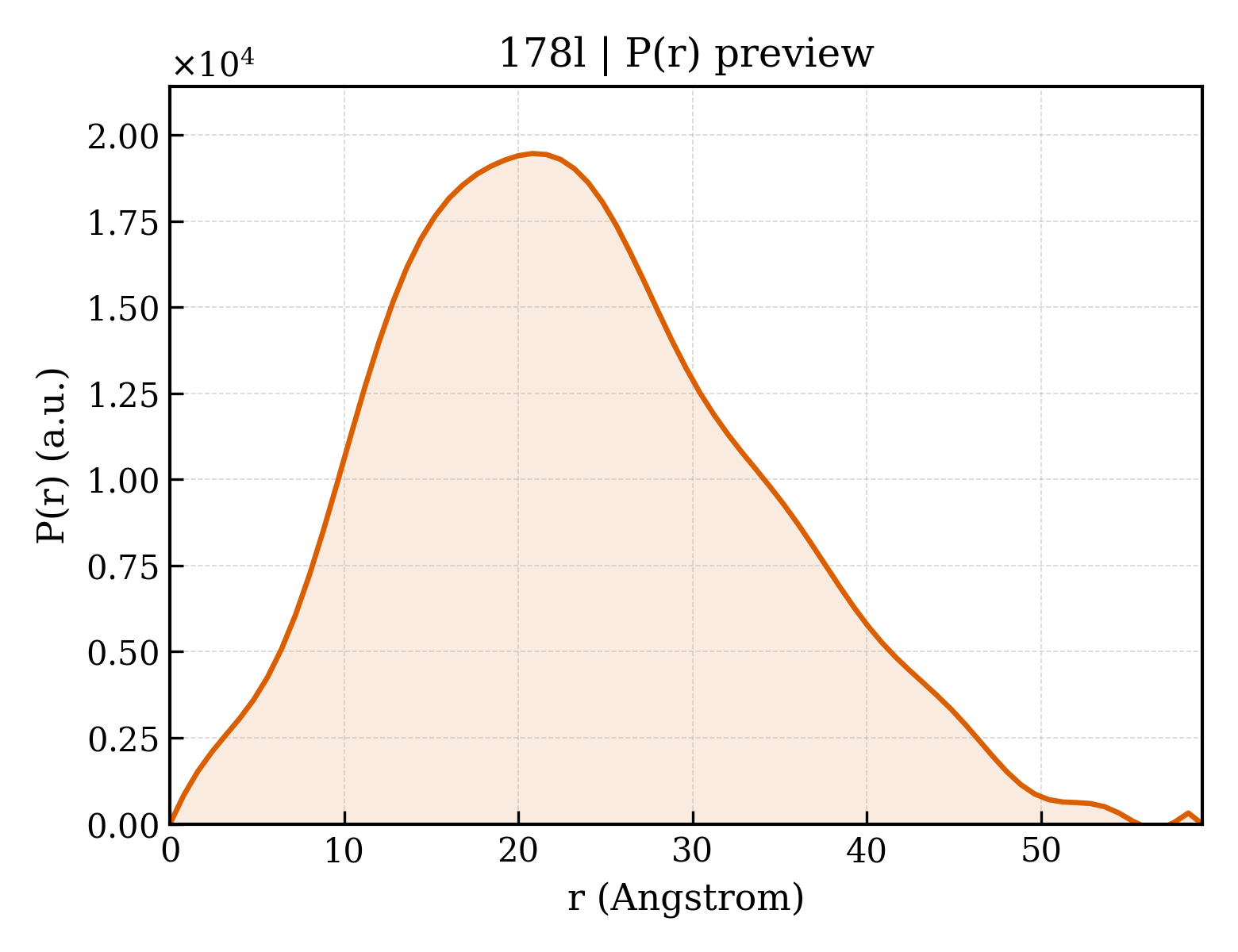

P(r) Distribution
1. Structure Basics
| entry_id | 178l |
| deposition_date | 1995-03-24 |
| title | Protein flexibility and adaptability seen in 25 crystal forms of T4 LYSOZYME |
| keywords | HYDROLASE (O-GLYCOSYL), HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.94 Å |
| rg_electron | 17.00 Å |
| i0 | 6409850.00 |
| molecular_weight | 18371.0 kDa |
| excluded_volume | 23000 ų |
| envelope_volume | 26002 ų |
| shell_volume | 13591 ų |
| envelope_diameter | 59.4 Å |
| shell_rg | 22.03 Å |
| envelope_rg | 17.02 Å |
| shape_rg | 16.95 Å |
| total_rg | 18.00 Å |
| total_atoms | 1287 |
| n_residues | 162 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 59.3 Å |
| rg_real | 17.96 Å |
| rg_real_error | 0.42 Å |
| i0_real | 6.4100e+06 |
| i0_real_error | 7.5550e+04 |
| rg_reciprocal | 17.96 Å |
| i0_reciprocal | 6410000.0000 |
| total_estimate | 0.6246 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 20.8 Å |
| skewness | 0.367 |
| kurtosis | -0.310 |
| angular_range | — – 0.4450 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1070000.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.817; Stabil: 0.999; Sysdev: 0.227; Positv: 1.000; Valcen: 0.985; Smooth: 0.000 |
