SAXSdb — 4ej4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Delta-type opioid receptor, Lysozyme chimera

Enterobacteria phage T4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1	(4bS,8R,8aS,14bR)-7-(cyclopropylmethyl)-5,6,7,8,14,14b-hexahydro-4,8-methano[1]benzofuro[2,3-a]pyrido[4,3-b]carbazole-1,8a(9H)-diol × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LYS_BPT4
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 210–369； UniProt 2–161

Delta-type opioid receptor, Lysozyme chimera

Enterobacteria phage T4

UniProt P32300

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1	(4bS,8R,8aS,14bR)-7-(cyclopropylmethyl)-5,6,7,8,14,14b-hexahydro-4,8-methano[1]benzofuro[2,3-a]pyrido[4,3-b]carbazole-1,8a(9H)-diol × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	OPRD_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–209； UniProt 36–244 Author chain A； PDBConstruct 370–461； UniProt 251–342

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4ej4
Deposition date deposition_date	2012-04-06
Structure title title	Structure of the delta opioid receptor bound to naltrindole
Keywords keywords	G-protein coupled receptor, 7 transmembrane receptor, opioid receptor, SIGNALING PROTEIN, Hydrolase-Antagonist complex; SIGNALING PROTEIN, Hydrolase/Antagonist
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4ej4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

4ej4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

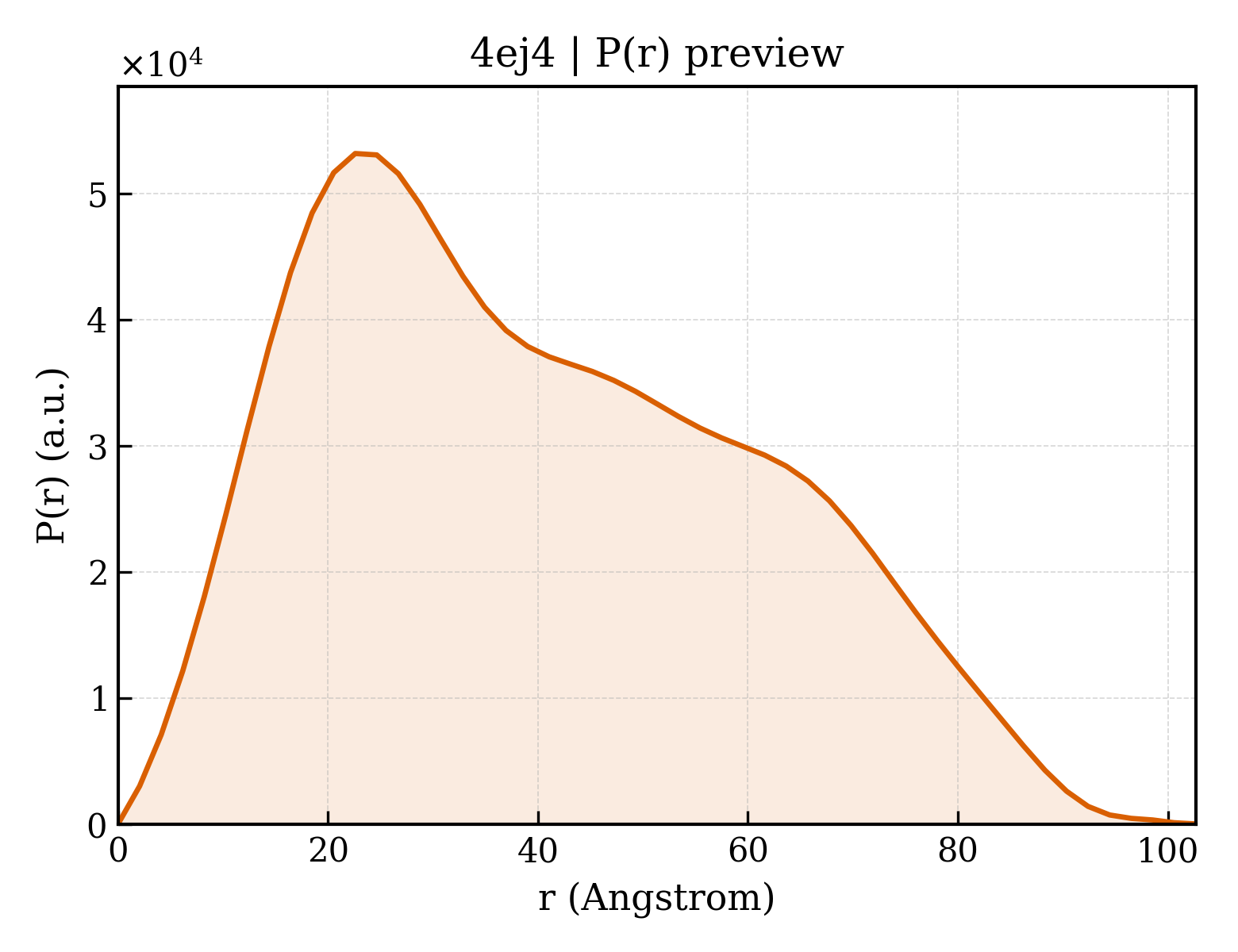

4ej4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.64 Å
Rg (electron density)	31.15 Å
Total Rg	31.54 Å
Atom count	3382
Residues	442
Excluded volume	61418 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4ej4__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Delta-type opioid receptor, Lysozyme chimera
Molecular weight formula_weight	51633.7 kDa
EC 编号 ec_number	3.2.1.17
Mutation mutation	D1020N, C1054T, C1097A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3382

GSPGARSASSLALAIAITALYSAVCAVGLLGNVLVMFGIVRYTKLKTATNIYIFNLALADALATSTLPFQSAKYLMETWPFGELLCKAVLSIDYYNMFTSIFTLTMMSVDRYIAVCHPVKALDFRTPAKAKLINICIWVLASGVGVPIMVMAVTQPRDGAVVCMLQFPSPSWYWDTVTKICVFLFAFVVPILIITVCYGLMLLRLRSVRNIFEMLRIDEGLRLKIYKNTEGYYTIGIGHLLTKSPSLNAAKSELDKAIGRNTNGVITKDEAEKLFNQDVDAAVRGILRNAKLKPVYDSLDAVRRAALINMVFQMGETGVAGFTNSLRMLQQKRWDEAAVNLAKSRWYNQTPNRAKRVITTFRTGTWDAYEKDRSLRRITRMVLVVVGAFVVCWAPIHIFVIVWTLVDINRRDPLVVAALHLCIALGYANSSLNPVLYAFLDENFKRCFRQLCRTPCGRQEP

Source Source

Source organism organism	Enterobacteria phage T4
NCBI taxonomy ID ncbi_taxonomy_id	10665
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 non-polymer

Description description	(4bS,8R,8aS,14bR)-7-(cyclopropylmethyl)-5,6,7,8,14,14b-hexahydro-4,8-methano[1]benzofuro[2,3-a]pyrido[4,3-b]carbazole-1,8a(9H)-diol
Molecular weight formula_weight	414.5 kDa
Source method src_method	syn
Copy count entity_count	1

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	4ej4A01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1070 — Rhopdopsin 7-helix transmembrane proteins
Homologous superfamily homologous superfamily	10 — Rhodopsin 7-helix transmembrane proteins

Domain ID domain_id	4ej4A02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	530 — Lysozyme
Homologous superfamily homologous superfamily	40 —

▶

Unit-cell length a length_a	73.278 Å
Unit-cell length b length_b	73.278 Å
Unit-cell length c length_c	266.653 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	3.400 Å
Low-resolution limit resolution_low	36.403 Å
R factor r_factor	0.2552
R_work r_work	0.2522
R_free r_free	0.2818
