1d9w
BACTERIOPHAGE T4 LYSOZYME MUTANT
SAXS Profile

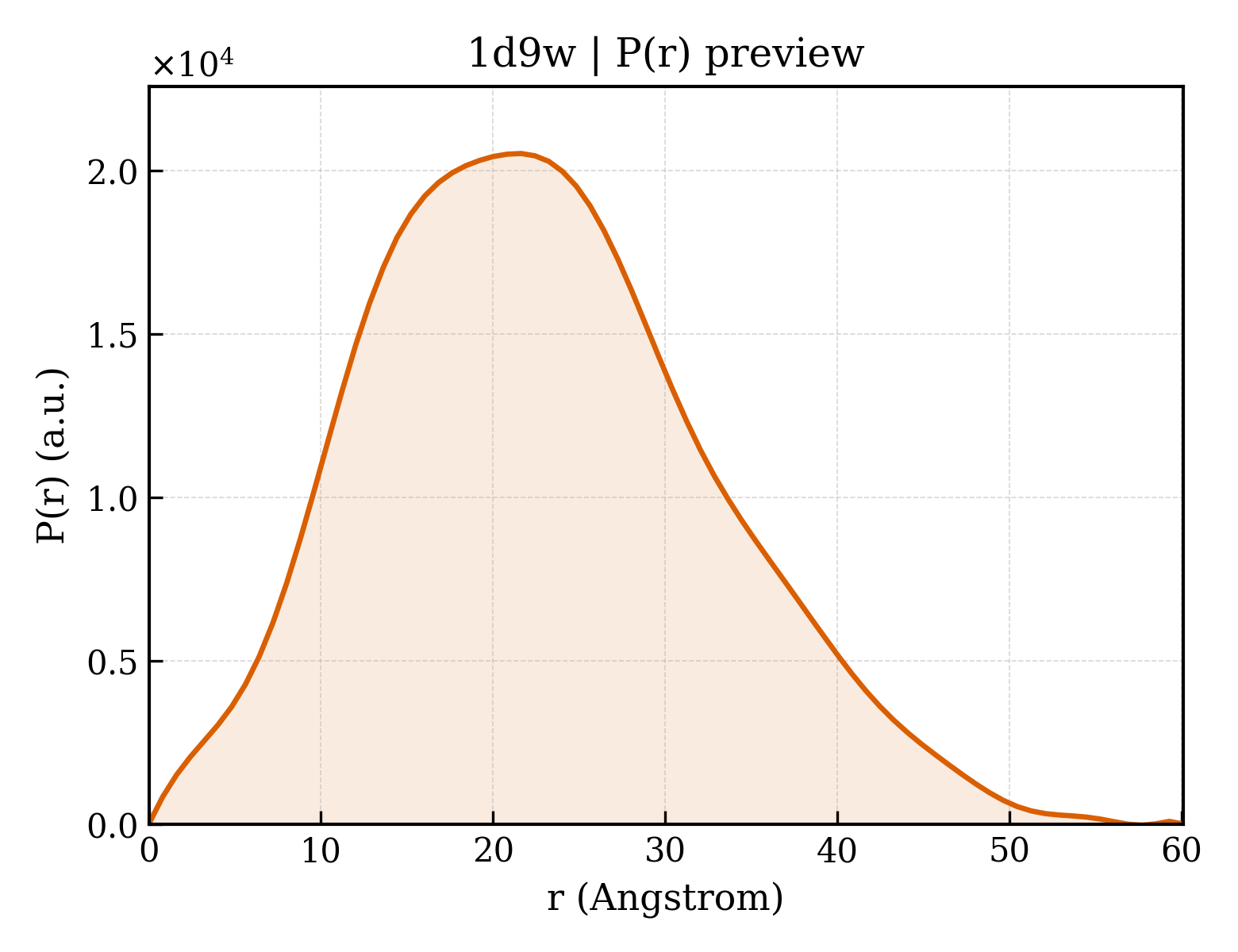

P(r) Distribution
1. Structure Basics
| entry_id | 1d9w |
| deposition_date | 1999-10-30 |
| title | BACTERIOPHAGE T4 LYSOZYME MUTANT |
| keywords | HYDROLASE (O-GLYCOSYL), T4 LYSOZYME, HELIX CAPPING, HELIX DIPOLE, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.53 Å |
| rg_electron | 16.49 Å |
| i0 | 6569670.00 |
| molecular_weight | 18462.0 kDa |
| excluded_volume | 23075 ų |
| envelope_volume | 26452 ų |
| shell_volume | 14033 ų |
| envelope_diameter | 58.0 Å |
| shell_rg | 21.77 Å |
| envelope_rg | 16.56 Å |
| shape_rg | 16.46 Å |
| total_rg | 17.50 Å |
| total_atoms | 1295 |
| n_residues | 162 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 60.1 Å |
| rg_real | 17.52 Å |
| rg_real_error | 0.46 Å |
| i0_real | 6.5700e+06 |
| i0_real_error | 8.6620e+04 |
| rg_reciprocal | 17.52 Å |
| i0_reciprocal | 6570000.0000 |
| total_estimate | 0.6090 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 21.6 Å |
| skewness | 0.354 |
| kurtosis | -0.230 |
| angular_range | — – 0.4550 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1439000.0000 |
| n_real_points | 76 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.744; Stabil: 1.000; Sysdev: 0.242; Positv: 1.000; Valcen: 0.953; Smooth: 0.000 |
