173l
PROTEIN FLEXIBILITY AND ADAPTABILITY SEEN IN 25 CRYSTAL FORMS OF T4 LYSOZYME
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 173l |
| deposition_date | 1995-03-24 |
| title | PROTEIN FLEXIBILITY AND ADAPTABILITY SEEN IN 25 CRYSTAL FORMS OF T4 LYSOZYME |
| keywords | HYDROLASE (O-GLYCOSYL); HYDROLASE (O-GLYCOSYL) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.99 Å |
| rg_electron | 16.98 Å |
| i0 | 6657370.00 |
| molecular_weight | 18523.0 kDa |
| excluded_volume | 23081 ų |
| envelope_volume | 26771 ų |
| shell_volume | 13907 ų |
| envelope_diameter | 59.5 Å |
| shell_rg | 22.13 Å |
| envelope_rg | 17.07 Å |
| shape_rg | 16.95 Å |
| total_rg | 17.94 Å |
| total_atoms | 1298 |
| n_residues | 162 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

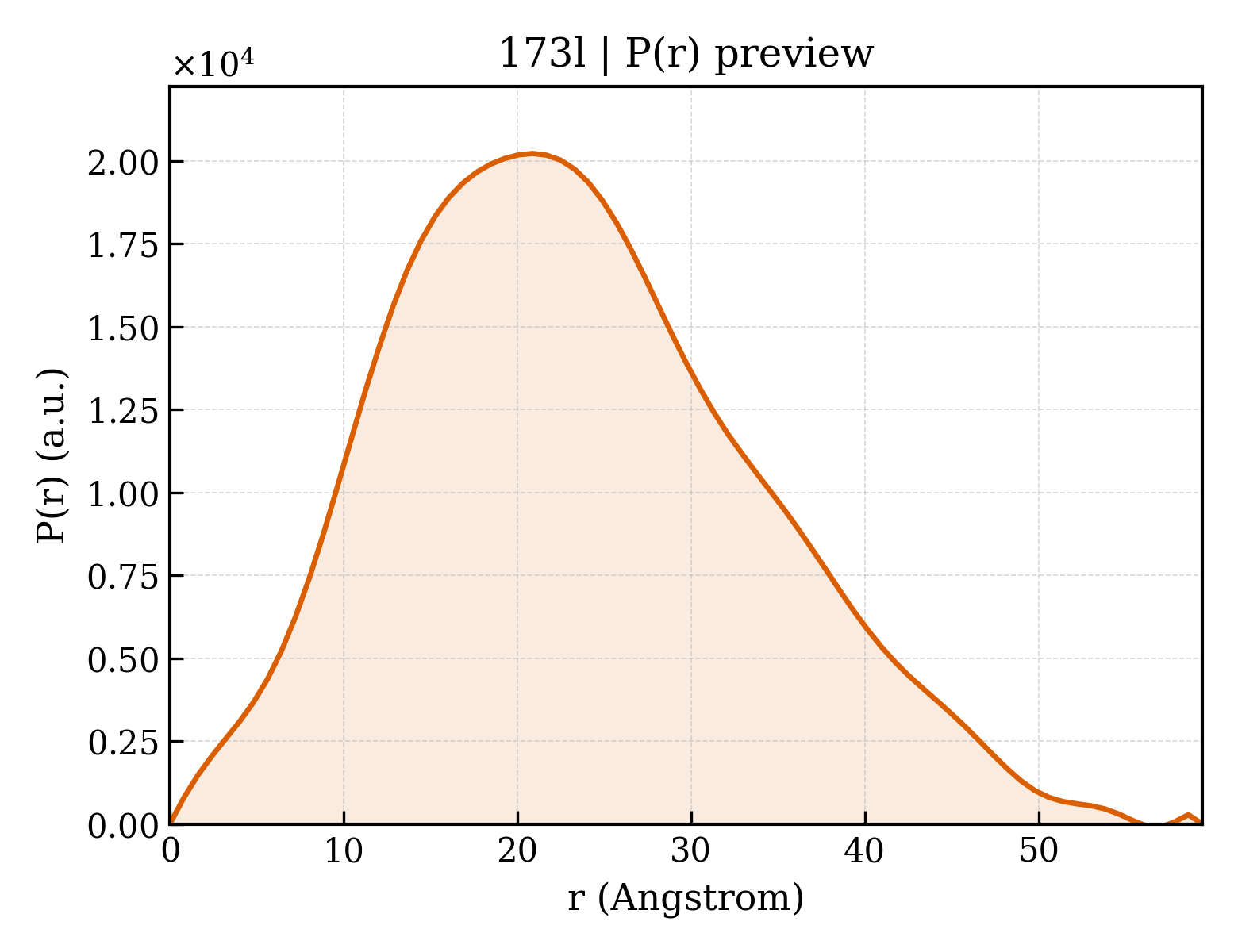

3. P(r) Analysis (GNOM)
| dmax | 59.4 Å |
| rg_real | 18.00 Å |
| rg_real_error | 0.41 Å |
| i0_real | 6.6570e+06 |
| i0_real_error | 8.7700e+04 |
| rg_reciprocal | 18.00 Å |
| i0_reciprocal | 6657000.0000 |
| total_estimate | 0.8044 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 20.9 Å |
| skewness | 0.374 |
| kurtosis | -0.287 |
| angular_range | — – 0.4400 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1252000.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.822; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.000 |
