151l
CONSERVATION OF SOLVENT-BINDING SITES IN 10 CRYSTAL FORMS OF T4 LYSOZYME
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 151l |
| deposition_date | 1994-01-25 |
| title | CONSERVATION OF SOLVENT-BINDING SITES IN 10 CRYSTAL FORMS OF T4 LYSOZYME |
| keywords | HYDROLASE(O-GLYCOSYL); HYDROLASE(O-GLYCOSYL) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.83 Å |
| rg_electron | 16.83 Å |
| i0 | 6511660.00 |
| molecular_weight | 18332.0 kDa |
| excluded_volume | 22891 ų |
| envelope_volume | 26230 ų |
| shell_volume | 13772 ų |
| envelope_diameter | 61.2 Å |
| shell_rg | 22.00 Å |
| envelope_rg | 16.89 Å |
| shape_rg | 16.80 Å |
| total_rg | 17.81 Å |
| total_atoms | 1286 |
| n_residues | 162 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

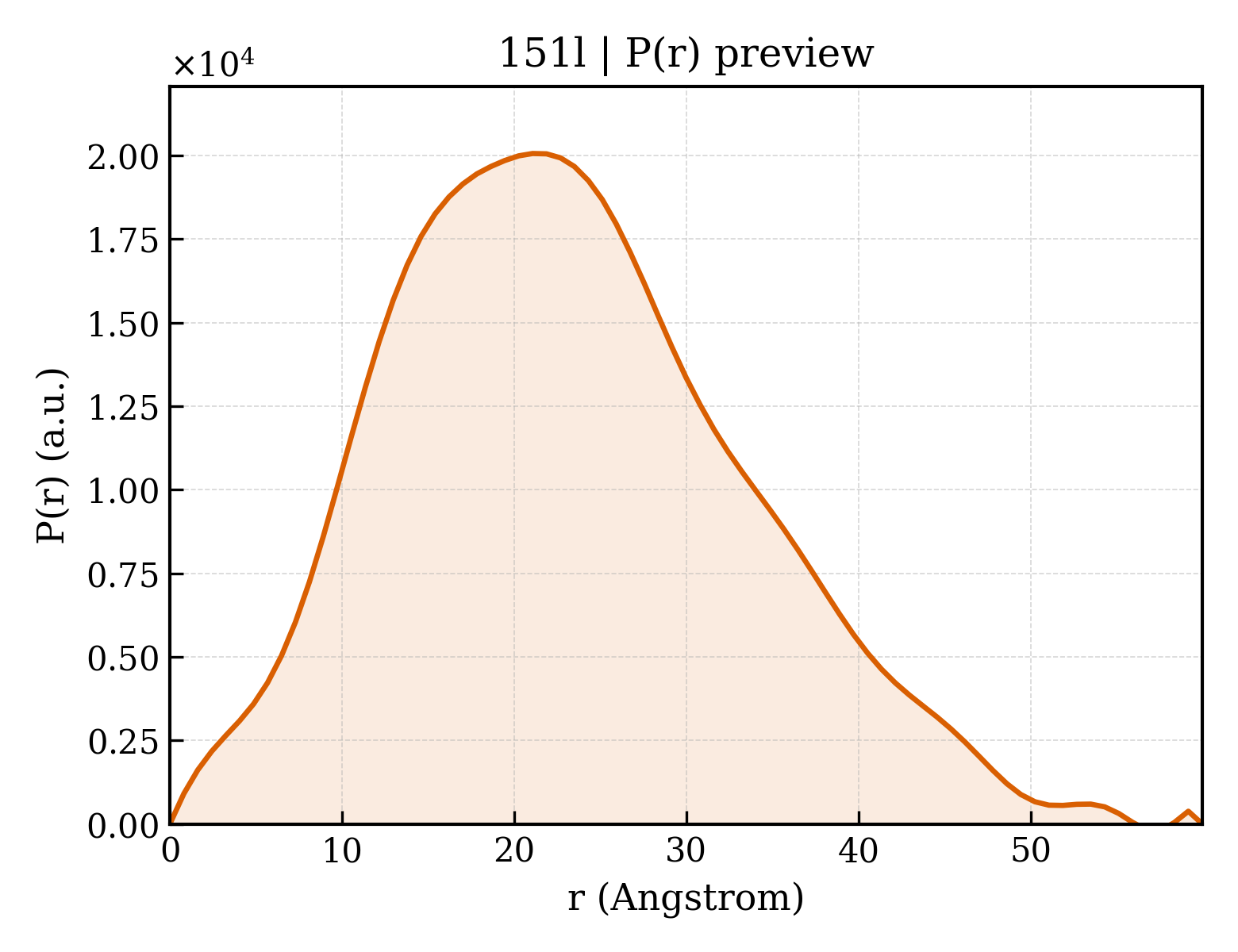

3. P(r) Analysis (GNOM)
| dmax | 60.0 Å |
| rg_real | 17.84 Å |
| rg_real_error | 0.51 Å |
| i0_real | 6.5120e+06 |
| i0_real_error | 8.7070e+04 |
| rg_reciprocal | 17.84 Å |
| i0_reciprocal | 6512000.0000 |
| total_estimate | 0.7898 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 21.1 Å |
| skewness | 0.381 |
| kurtosis | -0.215 |
| angular_range | — – 0.4450 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1157000.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.759; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.000 |
