167l
PROTEIN FLEXIBILITY AND ADAPTABILITY SEEN IN 25 CRYSTAL FORMS OF T4 LYSOZYME
SAXS Profile

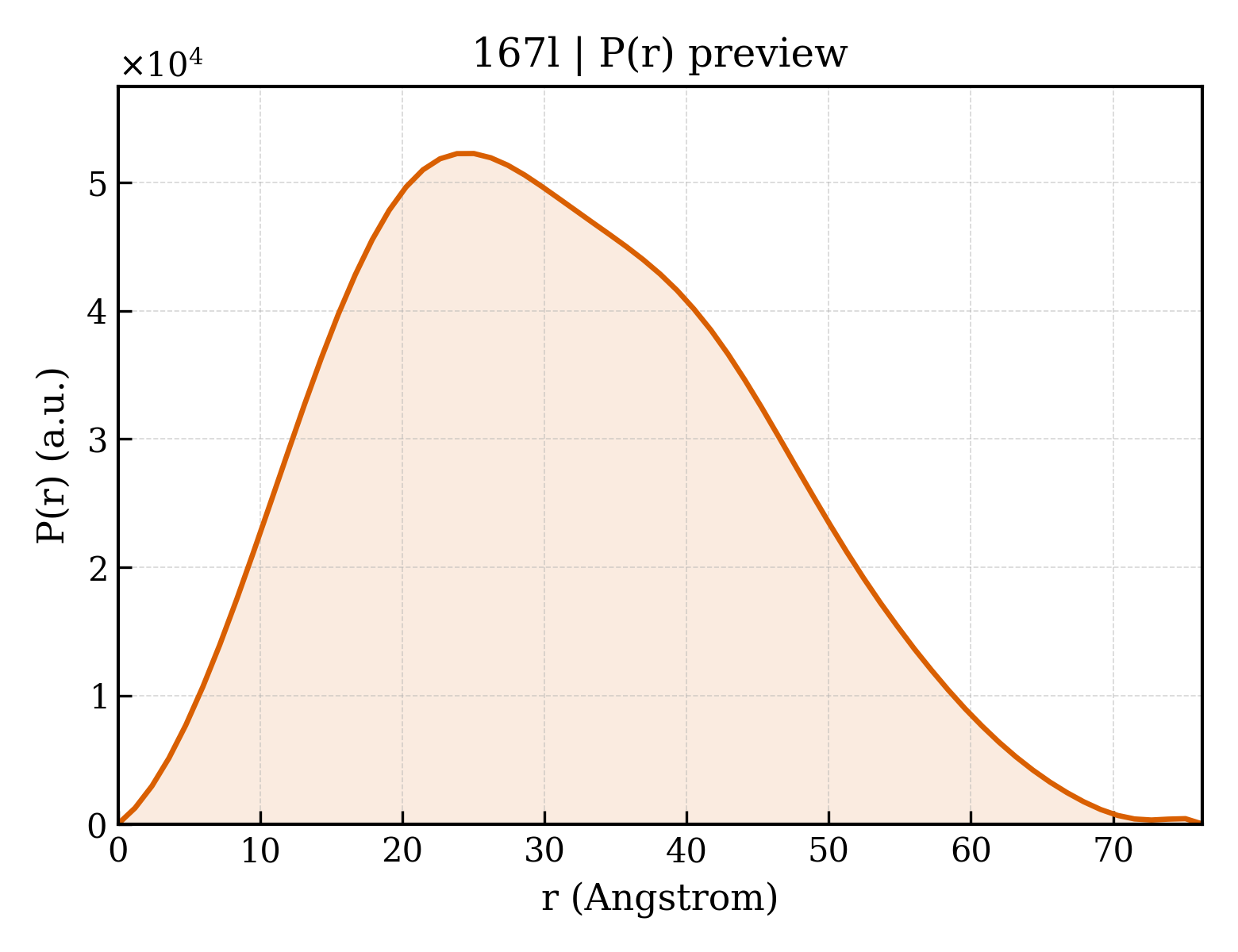

P(r) Distribution
1. Structure Basics
| entry_id | 167l |
| deposition_date | 1995-03-24 |
| title | PROTEIN FLEXIBILITY AND ADAPTABILITY SEEN IN 25 CRYSTAL FORMS OF T4 LYSOZYME |
| keywords | HYDROLASE (O-GLYCOSYL); HYDROLASE (O-GLYCOSYL) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 24.00 Å |
| rg_electron | 23.21 Å |
| i0 | 24628000.00 |
| molecular_weight | 37189.0 kDa |
| excluded_volume | 46334 ų |
| envelope_volume | 57127 ų |
| shell_volume | 21373 ų |
| envelope_diameter | 77.9 Å |
| shell_rg | 29.17 Å |
| envelope_rg | 23.01 Å |
| shape_rg | 23.19 Å |
| total_rg | 24.03 Å |
| total_atoms | 2606 |
| n_residues | 328 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 76.3 Å |
| rg_real | 24.01 Å |
| rg_real_error | 0.49 Å |
| i0_real | 2.4630e+07 |
| i0_real_error | 3.3350e+05 |
| rg_reciprocal | 24.01 Å |
| i0_reciprocal | 24630000.0000 |
| total_estimate | 0.9067 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 25.0 Å |
| skewness | 0.297 |
| kurtosis | -0.522 |
| angular_range | — – 0.3300 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 4628000.0000 |
| n_real_points | 65 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.942; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.968; Smooth: 0.989 |
