177l
Protein flexibility and adaptability seen in 25 crystal forms of T4 LYSOZYME
SAXS Profile

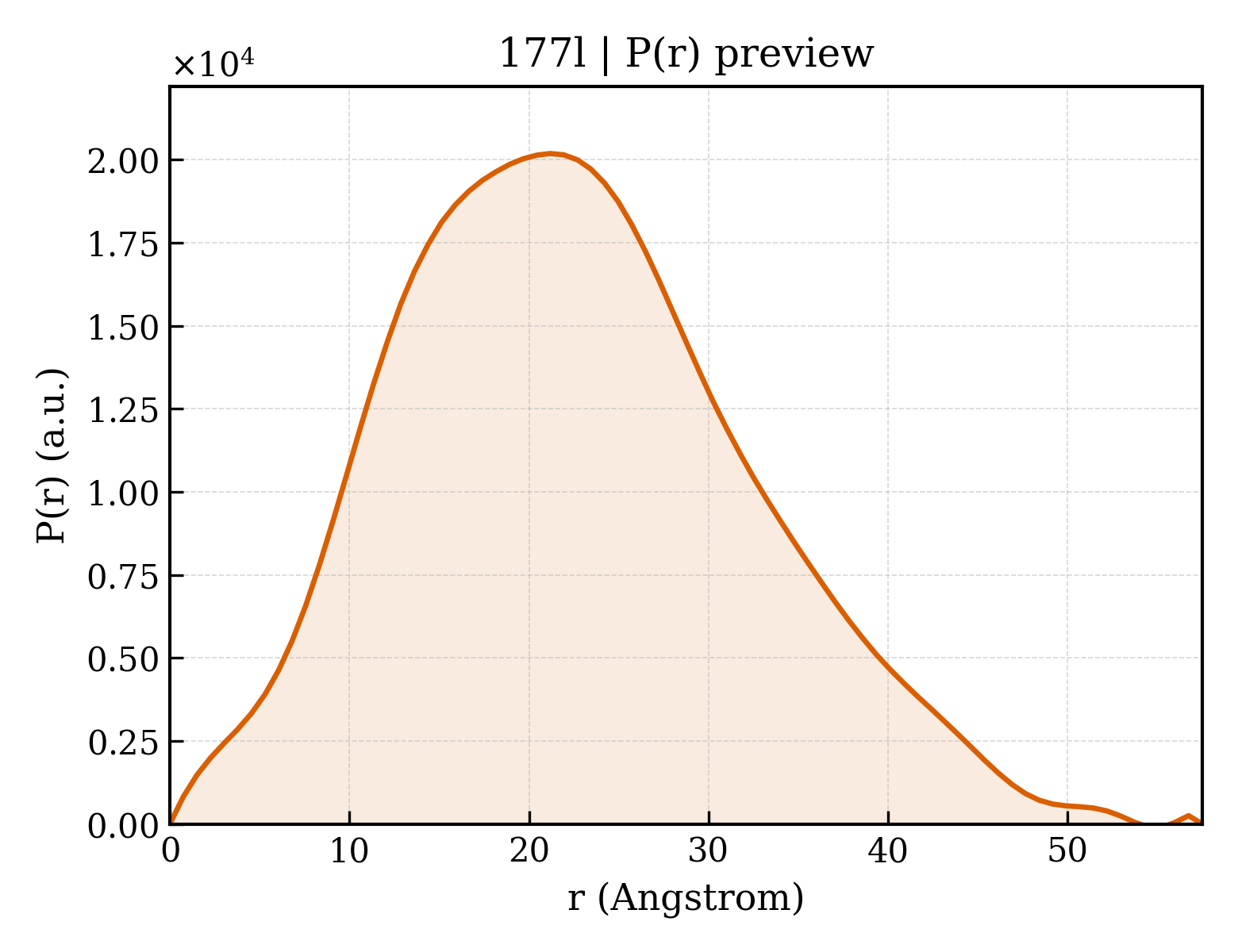

P(r) Distribution
1. Structure Basics
| entry_id | 177l |
| deposition_date | 1995-03-24 |
| title | Protein flexibility and adaptability seen in 25 crystal forms of T4 LYSOZYME |
| keywords | HYDROLASE (O-GLYCOSYL), HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.31 Å |
| rg_electron | 16.34 Å |
| i0 | 6313980.00 |
| molecular_weight | 18300.0 kDa |
| excluded_volume | 22955 ų |
| envelope_volume | 25593 ų |
| shell_volume | 13749 ų |
| envelope_diameter | 57.9 Å |
| shell_rg | 21.60 Å |
| envelope_rg | 16.36 Å |
| shape_rg | 16.30 Å |
| total_rg | 17.39 Å |
| total_atoms | 1285 |
| n_residues | 162 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 57.5 Å |
| rg_real | 17.30 Å |
| rg_real_error | 0.36 Å |
| i0_real | 6.3140e+06 |
| i0_real_error | 7.5340e+04 |
| rg_reciprocal | 17.30 Å |
| i0_reciprocal | 6314000.0000 |
| total_estimate | 0.7984 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 21.2 Å |
| skewness | 0.344 |
| kurtosis | -0.237 |
| angular_range | — – 0.4600 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1135000.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.796; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.000 |
