17gs

GLUTATHIONE S-TRANSFERASE P1-1

Method: X-RAY DIFFRACTION D_max: 65.1 Å Quality: EXCELLENT

SAXS Profile

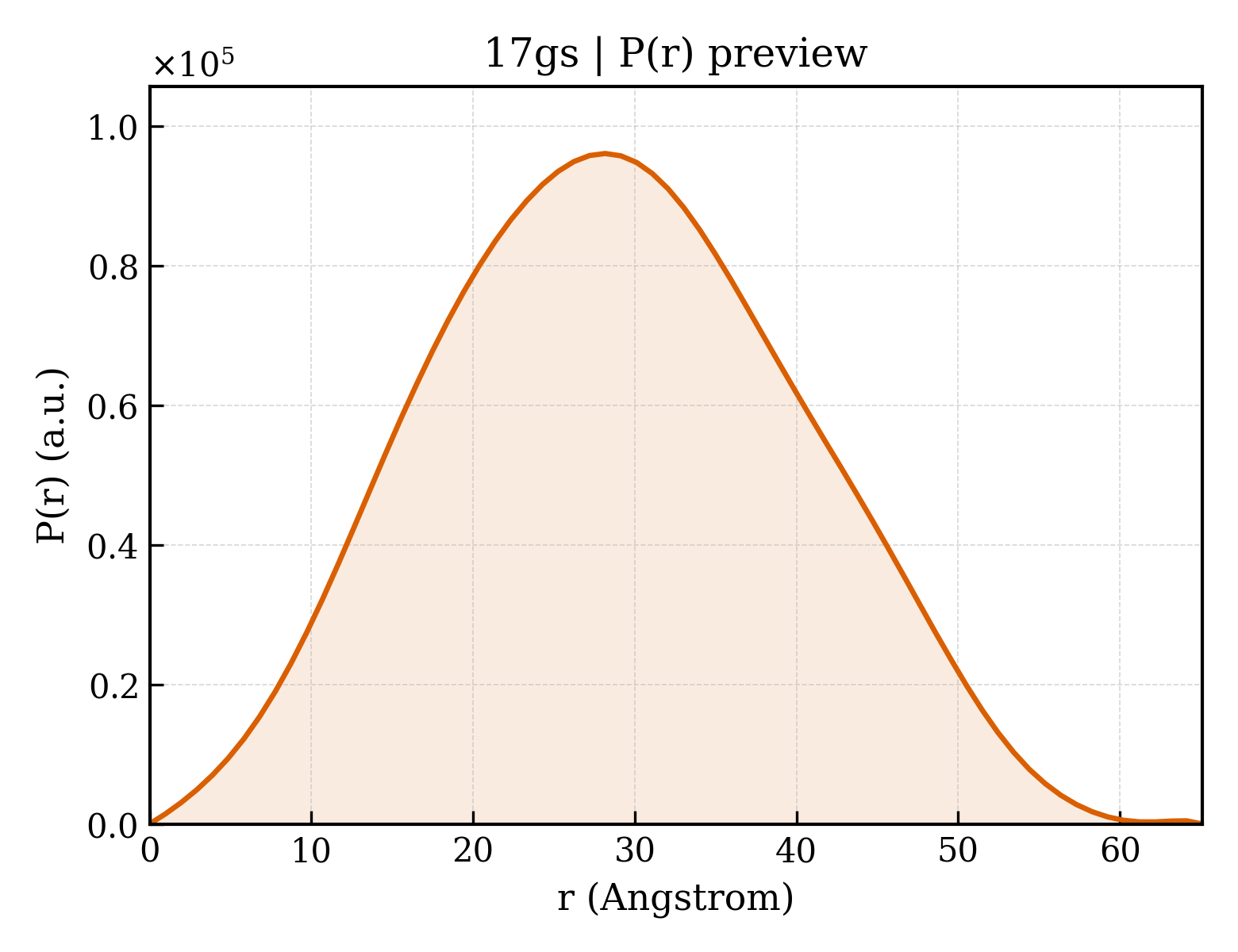

P(r) Distribution

▼

1. Structure Basics

entry_id	17gs
deposition_date	1997-12-07
title	GLUTATHIONE S-TRANSFERASE P1-1
keywords	GLUTATHIONE TRANSFERASE, K54A MUTANT, DETOXIFICATION, TRANSFERASE; TRANSFERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	22.09 Å
rg_electron	21.04 Å
i0	36171600.00
molecular_weight	47732.0 kDa
excluded_volume	60289 Å³
envelope_volume	69109 Å³
shell_volume	26411 Å³
envelope_diameter	67.8 Å
shell_rg	28.40 Å
envelope_rg	21.09 Å
shape_rg	21.03 Å
total_rg	21.96 Å
total_atoms	3357
n_residues	418
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	65.1 Å
rg_real	21.90 Å
rg_real_error	0.25 Å
i0_real	3.6170e+07
i0_real_error	4.6540e+05
rg_reciprocal	21.94 Å
i0_reciprocal	36170000.0000
total_estimate	0.9091
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	28.2 Å
skewness	0.096
kurtosis	-0.519
angular_range	— – 0.3600 Å⁻¹
current_alpha	0.0000
highest_alpha	9495000.0000
n_real_points	68
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.948; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.992

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	GLUTATHIONE S-TRANSFERASE
formula_weight	23319.7 kDa
ec_number	2.5.1.18
mutation	K54A
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	3566

MPPYTVVYFPVRGRCAALRMLLADQGQSWKEEVVTVETWQEGSLKASCLYGQLPAFQDGDLTLYQSNTILRHLGRTLGLYGKDQQEAALVDMVNDGVEDLRCKYISLIYTNYEAGKDDYVKALPGQLKPFETLLSQNQGGKTFIVGDQISFADYNLLDLLLIHEVLAPGCLDAFPLLSAYVGRLSARPKLKAFLASPEYVNLPINGNGKQ

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 2 non-polymer

description	S-HEXYLGLUTATHIONE
formula_weight	392.5 kDa
src_method	syn
entity_count	2

Entity 3 non-polymer

description	2-(N-MORPHOLINO)-ETHANESULFONIC ACID
formula_weight	195.2 kDa
src_method	syn
entity_count	3

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	209

▶

6. Citations (1)

▶

length_a	79.213 Å
length_b	90.228 Å
length_c	69.254 Å
angle_alpha	90.00 °
angle_beta	98.61 °
angle_gamma	90.00 °
z_pdb	8

space_group	C 1 2 1
int_tables_number	5
crystal_system	—

resolution	1.900 Å
resolution_low	15.000 Å
r_factor	0.1740
r_work	0.1740
r_free	0.2000

fit	/app/data/saxs_computation/7g/17gs/17gs.fit
pddf	/app/data/pr_computation/7g/17gs/17gs.pr.out
profile	/app/data/saxs_computation/7g/17gs/17gs.dat
