1a2v

COPPER AMINE OXIDASE FROM HANSENULA POLYMORPHA

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

METHYLAMINE OXIDASE

Pichia angusta

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	COPPER (II) ION × 6 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AMO_PICAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–655； UniProt 18–672 Author chain B； PDBConstruct 1–655； UniProt 18–672 Author chain C； PDBConstruct 1–655； UniProt 18–672 Author chain D； PDBConstruct 1–655； UniProt 18–672 Author chain E； PDBConstruct 1–655； UniProt 18–672 Author chain F； PDBConstruct 1–655； UniProt 18–672

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1a2v
Deposition date deposition_date	1998-01-12
Structure title title	COPPER AMINE OXIDASE FROM HANSENULA POLYMORPHA
Keywords keywords	AMINE OXIDASE, QUINOPROTEIN, TOPAQUINONE ENZYME, TPQ; AMINE OXIDASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1a2v__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

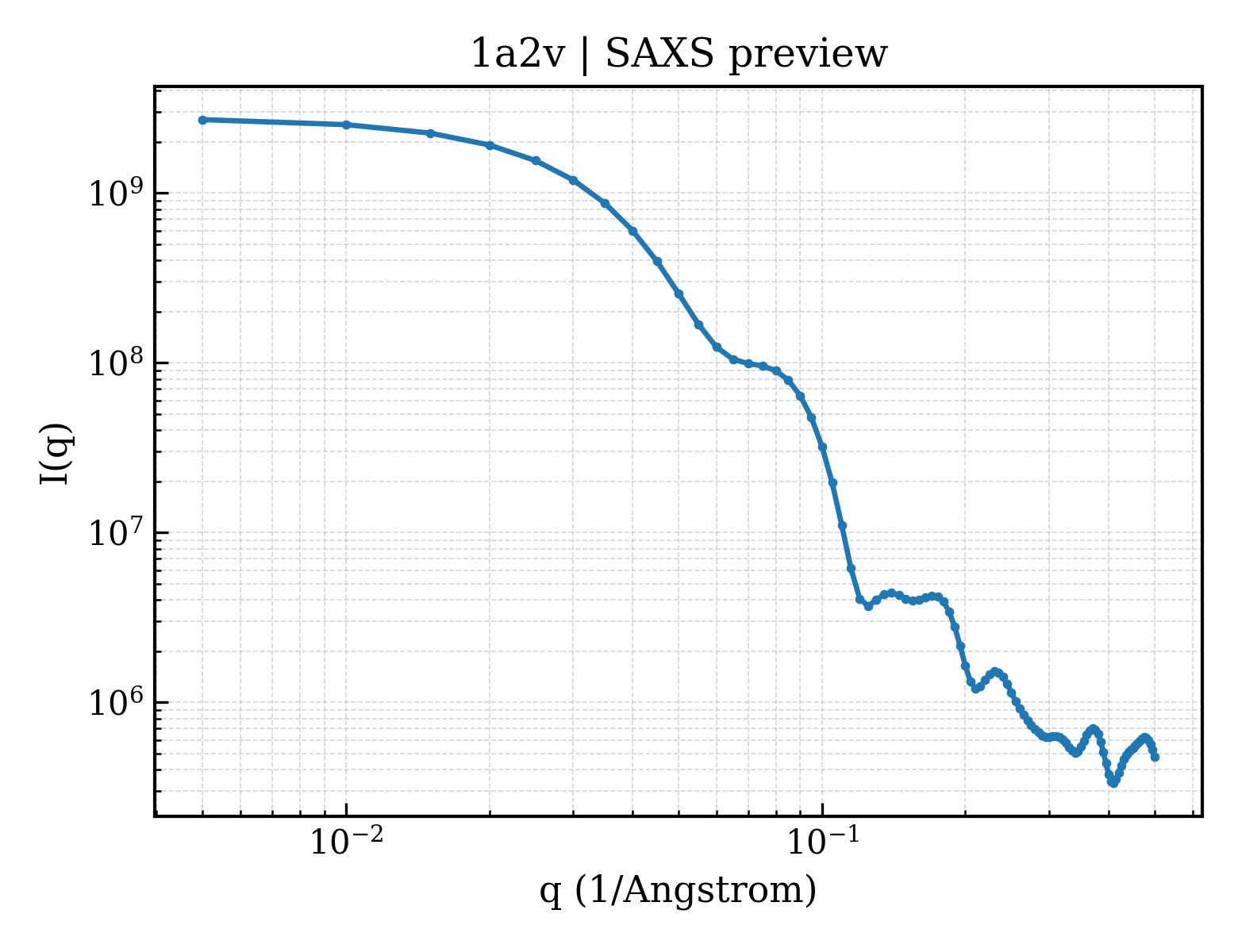

1a2v__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

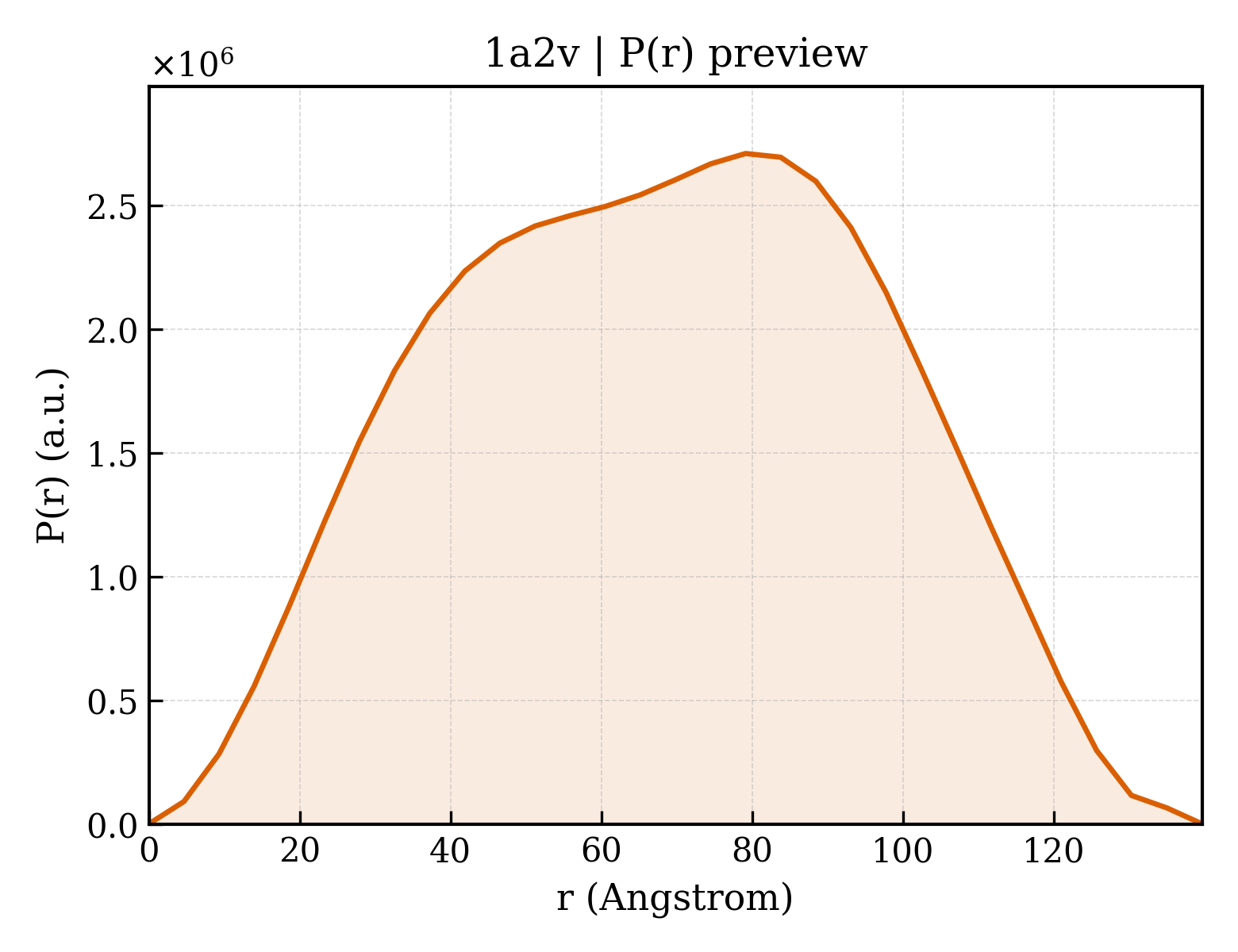

1a2v__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	52.19 Å
Rg (electron density)	51.71 Å
Total Rg	52.11 Å
Atom count	31170
Residues	3924
Excluded volume	551630 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1a2v__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	METHYLAMINE OXIDASE
Molecular weight formula_weight	73690.0 kDa
EC 编号 ec_number	1.4.3.6
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	33726

PARPAHPLDPLSTAEIKAATNTVKSYFAGKKISFNTVTLREPARKAYIQWKEQGGPLPPRLAYYVILEAGKPGVKEGLVDLASLSVIETRALETVQPILTVEDLCSTEEVIRNDPAVIEQCVLSGIPANEMHKVYCDPWTIGYDERWGTGKRLQQALVYYRSDEDDSQYSHPLDFCPIVDTEEKKVIFIDIPNRRRKVSKHKHANFYPKHMIEKVGAMRPEAPPINVTQPEGVSFKMTGNVMEWSNFKFHIGFNYREGIVLSDVSYNDHGNVRPIFHRISLSEMIVPYGSPEFPHQRKHALDIGEYGAGYMTNPLSLGCDCKGVIHYLDAHFSDRAGDPITVKNAVCIHEEDDGLLFKHSDFRDNFATSLVTRATKLVVSQIFTAANYEYCLYWVFMQDGAIRLDIRLTGILNTYILGDDEEAGPWGTRVYPNVNAHNHQHLFSLRIDPRIDGDGNSAAACDAKSSPYPLGSPENMYGNAFYSEKTTFKTVKDSLTNYESATGRSWDIFNPNKVNPYSGKPPSYKLVSTQCPPLLAKEGSLVAKRAPWASHSVNVVPYKDNRLYPSGDHVPQWSGDGVRGMREWIGDGSENIDNTDILFFHTFGITHFPAPEDFPLMPAEPITLMLRPRHFFTENPGLDIQPSYAMTTSEAKRAV

Source Source

Source organism organism	Pichia angusta
NCBI taxonomy ID ncbi_taxonomy_id	4905
Host organism host_organism	Saccharomyces cerevisiae

Entity 2 Entity 2 non-polymer

Description description	COPPER (II) ION
Molecular weight formula_weight	63.5 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	2556

▼

6. Fold Classification (SCOP + CATH) 36 domains

SCOP 2.08 (18 domains)

Domain ID domain_id	d1a2va1
Class class	b — All beta proteins
Fold Fold fold	b.30 — Supersandwich
Superfamily Superfamily superfamily	b.30.2 — Amine oxidase catalytic domain
Family Family family	b.30.2.1 — Amine oxidase catalytic domain

Domain ID domain_id	d1a2va2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.2 — Amine oxidase N-terminal region
Family Family family	d.17.2.1 — Amine oxidase N-terminal region

Domain ID domain_id	d1a2va3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.2 — Amine oxidase N-terminal region
Family Family family	d.17.2.1 — Amine oxidase N-terminal region

Domain ID domain_id	d1a2vb1
Class class	b — All beta proteins
Fold Fold fold	b.30 — Supersandwich
Superfamily Superfamily superfamily	b.30.2 — Amine oxidase catalytic domain
Family Family family	b.30.2.1 — Amine oxidase catalytic domain

Domain ID domain_id	d1a2vb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.2 — Amine oxidase N-terminal region
Family Family family	d.17.2.1 — Amine oxidase N-terminal region

Domain ID domain_id	d1a2vb3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.2 — Amine oxidase N-terminal region
Family Family family	d.17.2.1 — Amine oxidase N-terminal region

Domain ID domain_id	d1a2vc1
Class class	b — All beta proteins
Fold Fold fold	b.30 — Supersandwich
Superfamily Superfamily superfamily	b.30.2 — Amine oxidase catalytic domain
Family Family family	b.30.2.1 — Amine oxidase catalytic domain

Domain ID domain_id	d1a2vc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.2 — Amine oxidase N-terminal region
Family Family family	d.17.2.1 — Amine oxidase N-terminal region

Domain ID domain_id	d1a2vc3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.2 — Amine oxidase N-terminal region
Family Family family	d.17.2.1 — Amine oxidase N-terminal region

Domain ID domain_id	d1a2vd1
Class class	b — All beta proteins
Fold Fold fold	b.30 — Supersandwich
Superfamily Superfamily superfamily	b.30.2 — Amine oxidase catalytic domain
Family Family family	b.30.2.1 — Amine oxidase catalytic domain

Domain ID domain_id	d1a2vd2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.2 — Amine oxidase N-terminal region
Family Family family	d.17.2.1 — Amine oxidase N-terminal region

Domain ID domain_id	d1a2vd3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.2 — Amine oxidase N-terminal region
Family Family family	d.17.2.1 — Amine oxidase N-terminal region

Domain ID domain_id	d1a2ve1
Class class	b — All beta proteins
Fold Fold fold	b.30 — Supersandwich
Superfamily Superfamily superfamily	b.30.2 — Amine oxidase catalytic domain
Family Family family	b.30.2.1 — Amine oxidase catalytic domain

Domain ID domain_id	d1a2ve2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.2 — Amine oxidase N-terminal region
Family Family family	d.17.2.1 — Amine oxidase N-terminal region

Domain ID domain_id	d1a2ve3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.2 — Amine oxidase N-terminal region
Family Family family	d.17.2.1 — Amine oxidase N-terminal region

Domain ID domain_id	d1a2vf1
Class class	b — All beta proteins
Fold Fold fold	b.30 — Supersandwich
Superfamily Superfamily superfamily	b.30.2 — Amine oxidase catalytic domain
Family Family family	b.30.2.1 — Amine oxidase catalytic domain

Domain ID domain_id	d1a2vf2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.2 — Amine oxidase N-terminal region
Family Family family	d.17.2.1 — Amine oxidase N-terminal region

Domain ID domain_id	d1a2vf3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.2 — Amine oxidase N-terminal region
Family Family family	d.17.2.1 — Amine oxidase N-terminal region

CATH v4.4 (18 domains)

Domain ID domain_id	1a2vA01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1a2vA02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1a2vA03
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	98 — Beta-galactosidase; Chain A, domain 5
Homologous superfamily homologous superfamily	20 — Copper amine oxidase, catalytic domain

Domain ID domain_id	1a2vB01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1a2vB02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1a2vB03
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	98 — Beta-galactosidase; Chain A, domain 5
Homologous superfamily homologous superfamily	20 — Copper amine oxidase, catalytic domain

Domain ID domain_id	1a2vC01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1a2vC02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1a2vC03
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	98 — Beta-galactosidase; Chain A, domain 5
Homologous superfamily homologous superfamily	20 — Copper amine oxidase, catalytic domain

Domain ID domain_id	1a2vD01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1a2vD02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1a2vD03
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	98 — Beta-galactosidase; Chain A, domain 5
Homologous superfamily homologous superfamily	20 — Copper amine oxidase, catalytic domain

Domain ID domain_id	1a2vE01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1a2vE02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1a2vE03
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	98 — Beta-galactosidase; Chain A, domain 5
Homologous superfamily homologous superfamily	20 — Copper amine oxidase, catalytic domain

Domain ID domain_id	1a2vF01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1a2vF02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1a2vF03
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	98 — Beta-galactosidase; Chain A, domain 5
Homologous superfamily homologous superfamily	20 — Copper amine oxidase, catalytic domain

▶

Unit-cell length a length_a	138.770 Å
Unit-cell length b length_b	148.220 Å
Unit-cell length c length_c	234.010 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	100.000 Å
R factor r_factor	0.1840
R_work r_work	0.1840
R_free r_free	0.2240

COPPER AMINE OXIDASE FROM HANSENULA POLYMORPHA

1. Protein Identity and Related Structures Protein Identity & Related Structures

METHYLAMINE OXIDASE

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1a2v__assembly_1__model_1

1a2v__assembly_1__model_1 | I(q)

1a2v__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 water

6. Fold Classification (SCOP + CATH) 36 domains

SCOP 2.08 (18 domains)

CATH v4.4 (18 domains)

7. Citations (1)

COPPER AMINE OXIDASE FROM HANSENULA POLYMORPHA

1. Protein Identity and Related Structures Protein Identity & Related Structures

METHYLAMINE OXIDASE

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1a2v__assembly_1__model_1

1a2v__assembly_1__model_1 | I(q)

1a2v__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 water

6. Fold Classification (SCOP + CATH) 36 domains

SCOP 2.08 (18 domains)

CATH v4.4 (18 domains)

7. Citations (1)
