1a49

BIS MG-ATP-K-OXALATE COMPLEX OF PYRUVATE KINASE

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PYRUVATE KINASE

OrganismNot specified

UniProt P11974

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	POTASSIUM ION × 4 OXALATE ION × 4 MAGNESIUM ION × 7 ADENOSINE-5'-TRIPHOSPHATE × 3 water × 4	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 4	POTASSIUM ION × 4 OXALATE ION × 4 MAGNESIUM ION × 7 ADENOSINE-5'-TRIPHOSPHATE × 3 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KPYM_RABIT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–530； UniProt 1–530 Author chain B； PDBConstruct 1–530； UniProt 1–530 Author chain C； PDBConstruct 1–530； UniProt 1–530 Author chain D； PDBConstruct 1–530； UniProt 1–530 Author chain E； PDBConstruct 1–530； UniProt 1–530 Author chain F； PDBConstruct 1–530； UniProt 1–530 Author chain G； PDBConstruct 1–530； UniProt 1–530 Author chain H； PDBConstruct 1–530； UniProt 1–530

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1a49
Deposition date deposition_date	1998-02-12
Structure title title	BIS MG-ATP-K-OXALATE COMPLEX OF PYRUVATE KINASE
Keywords keywords	TRANSFERASE, PYRUVATE KINASE, RABBIT MUSCLE, DOMAIN MOVEMENT, POTASSIUM BINDING; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1a49__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1a49__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

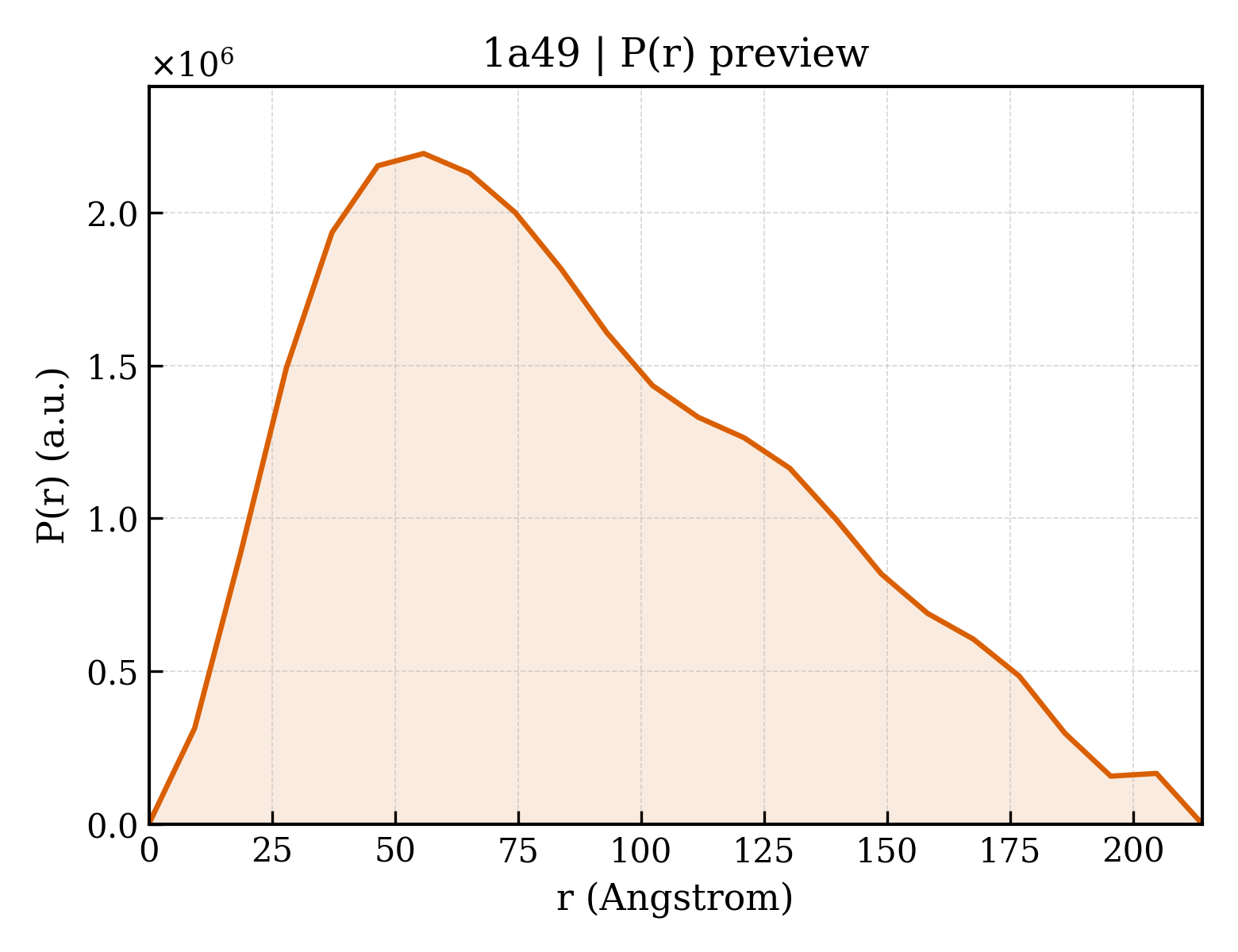

1a49__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	40.87 Å
Rg (electron density)	40.79 Å
Total Rg	41.07 Å
Atom count	16040
Residues	2076
Excluded volume	286470 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1a49__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1a49__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	PYRUVATE KINASE
Molecular weight formula_weight	57998.8 kDa
EC 编号 ec_number	2.7.1.40
Source method src_method	nat
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	34001

SKSHSEAGSAFIQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP

Entity 2 Entity 2 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 non-polymer

Description description	OXALATE ION
Molecular weight formula_weight	88.0 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	14

Entity 5 Entity 5 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1921

▼

6. Fold Classification (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

Domain ID domain_id	d1a49a1
Class class	b — All beta proteins
Fold Fold fold	b.58 — PK beta-barrel domain-like
Superfamily Superfamily superfamily	b.58.1 — PK beta-barrel domain-like
Family Family family	b.58.1.1 — Pyruvate kinase beta-barrel domain

Domain ID domain_id	d1a49a2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.12 — Phosphoenolpyruvate/pyruvate domain
Family Family family	c.1.12.1 — Pyruvate kinase

Domain ID domain_id	d1a49a3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.49 — Pyruvate kinase C-terminal domain-like
Superfamily Superfamily superfamily	c.49.1 — PK C-terminal domain-like
Family Family family	c.49.1.1 — Pyruvate kinase, C-terminal domain

Domain ID domain_id	d1a49b1
Class class	b — All beta proteins
Fold Fold fold	b.58 — PK beta-barrel domain-like
Superfamily Superfamily superfamily	b.58.1 — PK beta-barrel domain-like
Family Family family	b.58.1.1 — Pyruvate kinase beta-barrel domain

Domain ID domain_id	d1a49b2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.12 — Phosphoenolpyruvate/pyruvate domain
Family Family family	c.1.12.1 — Pyruvate kinase

Domain ID domain_id	d1a49b3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.49 — Pyruvate kinase C-terminal domain-like
Superfamily Superfamily superfamily	c.49.1 — PK C-terminal domain-like
Family Family family	c.49.1.1 — Pyruvate kinase, C-terminal domain

Domain ID domain_id	d1a49c1
Class class	b — All beta proteins
Fold Fold fold	b.58 — PK beta-barrel domain-like
Superfamily Superfamily superfamily	b.58.1 — PK beta-barrel domain-like
Family Family family	b.58.1.1 — Pyruvate kinase beta-barrel domain

Domain ID domain_id	d1a49c2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.12 — Phosphoenolpyruvate/pyruvate domain
Family Family family	c.1.12.1 — Pyruvate kinase

Domain ID domain_id	d1a49c3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.49 — Pyruvate kinase C-terminal domain-like
Superfamily Superfamily superfamily	c.49.1 — PK C-terminal domain-like
Family Family family	c.49.1.1 — Pyruvate kinase, C-terminal domain

Domain ID domain_id	d1a49d1
Class class	b — All beta proteins
Fold Fold fold	b.58 — PK beta-barrel domain-like
Superfamily Superfamily superfamily	b.58.1 — PK beta-barrel domain-like
Family Family family	b.58.1.1 — Pyruvate kinase beta-barrel domain

Domain ID domain_id	d1a49d2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.12 — Phosphoenolpyruvate/pyruvate domain
Family Family family	c.1.12.1 — Pyruvate kinase

Domain ID domain_id	d1a49d3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.49 — Pyruvate kinase C-terminal domain-like
Superfamily Superfamily superfamily	c.49.1 — PK C-terminal domain-like
Family Family family	c.49.1.1 — Pyruvate kinase, C-terminal domain

Domain ID domain_id	d1a49e1
Class class	b — All beta proteins
Fold Fold fold	b.58 — PK beta-barrel domain-like
Superfamily Superfamily superfamily	b.58.1 — PK beta-barrel domain-like
Family Family family	b.58.1.1 — Pyruvate kinase beta-barrel domain

Domain ID domain_id	d1a49e2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.12 — Phosphoenolpyruvate/pyruvate domain
Family Family family	c.1.12.1 — Pyruvate kinase

Domain ID domain_id	d1a49e3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.49 — Pyruvate kinase C-terminal domain-like
Superfamily Superfamily superfamily	c.49.1 — PK C-terminal domain-like
Family Family family	c.49.1.1 — Pyruvate kinase, C-terminal domain

Domain ID domain_id	d1a49f1
Class class	b — All beta proteins
Fold Fold fold	b.58 — PK beta-barrel domain-like
Superfamily Superfamily superfamily	b.58.1 — PK beta-barrel domain-like
Family Family family	b.58.1.1 — Pyruvate kinase beta-barrel domain

Domain ID domain_id	d1a49f2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.12 — Phosphoenolpyruvate/pyruvate domain
Family Family family	c.1.12.1 — Pyruvate kinase

Domain ID domain_id	d1a49f3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.49 — Pyruvate kinase C-terminal domain-like
Superfamily Superfamily superfamily	c.49.1 — PK C-terminal domain-like
Family Family family	c.49.1.1 — Pyruvate kinase, C-terminal domain

Domain ID domain_id	d1a49g1
Class class	b — All beta proteins
Fold Fold fold	b.58 — PK beta-barrel domain-like
Superfamily Superfamily superfamily	b.58.1 — PK beta-barrel domain-like
Family Family family	b.58.1.1 — Pyruvate kinase beta-barrel domain

Domain ID domain_id	d1a49g2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.12 — Phosphoenolpyruvate/pyruvate domain
Family Family family	c.1.12.1 — Pyruvate kinase

Domain ID domain_id	d1a49g3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.49 — Pyruvate kinase C-terminal domain-like
Superfamily Superfamily superfamily	c.49.1 — PK C-terminal domain-like
Family Family family	c.49.1.1 — Pyruvate kinase, C-terminal domain

Domain ID domain_id	d1a49h1
Class class	b — All beta proteins
Fold Fold fold	b.58 — PK beta-barrel domain-like
Superfamily Superfamily superfamily	b.58.1 — PK beta-barrel domain-like
Family Family family	b.58.1.1 — Pyruvate kinase beta-barrel domain

Domain ID domain_id	d1a49h2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.12 — Phosphoenolpyruvate/pyruvate domain
Family Family family	c.1.12.1 — Pyruvate kinase

Domain ID domain_id	d1a49h3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.49 — Pyruvate kinase C-terminal domain-like
Superfamily Superfamily superfamily	c.49.1 — PK C-terminal domain-like
Family Family family	c.49.1.1 — Pyruvate kinase, C-terminal domain

CATH v4.4 (24 domains)

Domain ID domain_id	1a49A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1380 — Pyruvate Kinase; Chain: A, domain 1
Homologous superfamily homologous superfamily	20 — Pyruvate kinase, C-terminal domain

Domain ID domain_id	1a49A02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	60 — Phosphoenolpyruvate-binding domains

Domain ID domain_id	1a49A03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	33 — M1 Pyruvate Kinase; Domain 3
Homologous superfamily homologous superfamily	10 — PK beta-barrel domain-like

Domain ID domain_id	1a49B01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1380 — Pyruvate Kinase; Chain: A, domain 1
Homologous superfamily homologous superfamily	20 — Pyruvate kinase, C-terminal domain

Domain ID domain_id	1a49B02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	60 — Phosphoenolpyruvate-binding domains

Domain ID domain_id	1a49B03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	33 — M1 Pyruvate Kinase; Domain 3
Homologous superfamily homologous superfamily	10 — PK beta-barrel domain-like

Domain ID domain_id	1a49C01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1380 — Pyruvate Kinase; Chain: A, domain 1
Homologous superfamily homologous superfamily	20 — Pyruvate kinase, C-terminal domain

Domain ID domain_id	1a49C02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	60 — Phosphoenolpyruvate-binding domains

Domain ID domain_id	1a49C03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	33 — M1 Pyruvate Kinase; Domain 3
Homologous superfamily homologous superfamily	10 — PK beta-barrel domain-like

Domain ID domain_id	1a49D01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1380 — Pyruvate Kinase; Chain: A, domain 1
Homologous superfamily homologous superfamily	20 — Pyruvate kinase, C-terminal domain

Domain ID domain_id	1a49D02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	60 — Phosphoenolpyruvate-binding domains

Domain ID domain_id	1a49D03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	33 — M1 Pyruvate Kinase; Domain 3
Homologous superfamily homologous superfamily	10 — PK beta-barrel domain-like

Domain ID domain_id	1a49E01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1380 — Pyruvate Kinase; Chain: A, domain 1
Homologous superfamily homologous superfamily	20 — Pyruvate kinase, C-terminal domain

Domain ID domain_id	1a49E02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	60 — Phosphoenolpyruvate-binding domains

Domain ID domain_id	1a49E03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	33 — M1 Pyruvate Kinase; Domain 3
Homologous superfamily homologous superfamily	10 — PK beta-barrel domain-like

Domain ID domain_id	1a49F01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1380 — Pyruvate Kinase; Chain: A, domain 1
Homologous superfamily homologous superfamily	20 — Pyruvate kinase, C-terminal domain

Domain ID domain_id	1a49F02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	60 — Phosphoenolpyruvate-binding domains

Domain ID domain_id	1a49F03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	33 — M1 Pyruvate Kinase; Domain 3
Homologous superfamily homologous superfamily	10 — PK beta-barrel domain-like

Domain ID domain_id	1a49G01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1380 — Pyruvate Kinase; Chain: A, domain 1
Homologous superfamily homologous superfamily	20 — Pyruvate kinase, C-terminal domain

Domain ID domain_id	1a49G02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	60 — Phosphoenolpyruvate-binding domains

Domain ID domain_id	1a49G03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	33 — M1 Pyruvate Kinase; Domain 3
Homologous superfamily homologous superfamily	10 — PK beta-barrel domain-like

Domain ID domain_id	1a49H01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1380 — Pyruvate Kinase; Chain: A, domain 1
Homologous superfamily homologous superfamily	20 — Pyruvate kinase, C-terminal domain

Domain ID domain_id	1a49H02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	60 — Phosphoenolpyruvate-binding domains

Domain ID domain_id	1a49H03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	33 — M1 Pyruvate Kinase; Domain 3
Homologous superfamily homologous superfamily	10 — PK beta-barrel domain-like

▶

Unit-cell length a length_a	95.300 Å
Unit-cell length b length_b	216.500 Å
Unit-cell length c length_c	258.600 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	—
R_work r_work	0.1980
R_free r_free	—

BIS MG-ATP-K-OXALATE COMPLEX OF PYRUVATE KINASE

1. Protein Identity and Related Structures Protein Identity & Related Structures

PYRUVATE KINASE

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1a49__assembly_1__model_1

1a49__assembly_1__model_1 | I(q)

1a49__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 water

6. Fold Classification (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

CATH v4.4 (24 domains)

7. Citations (1)

BIS MG-ATP-K-OXALATE COMPLEX OF PYRUVATE KINASE

1. Protein Identity and Related Structures Protein Identity & Related Structures

PYRUVATE KINASE

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1a49__assembly_1__model_1

1a49__assembly_1__model_1 | I(q)

1a49__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 water

6. Fold Classification (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

CATH v4.4 (24 domains)

7. Citations (1)
